HAGER KU9S115YE Cable de conexión en Y, negro/azul, 1,5 m, 1 conector macho a 2 conectores hembra

This Y-connection cable from Hager features a 1.5 m length with a 1.5 mm² conductor cross-section, rated for 230 V AC and 16 A, making it suitable for power distribution in Tehalit cable duct systems.

Overview

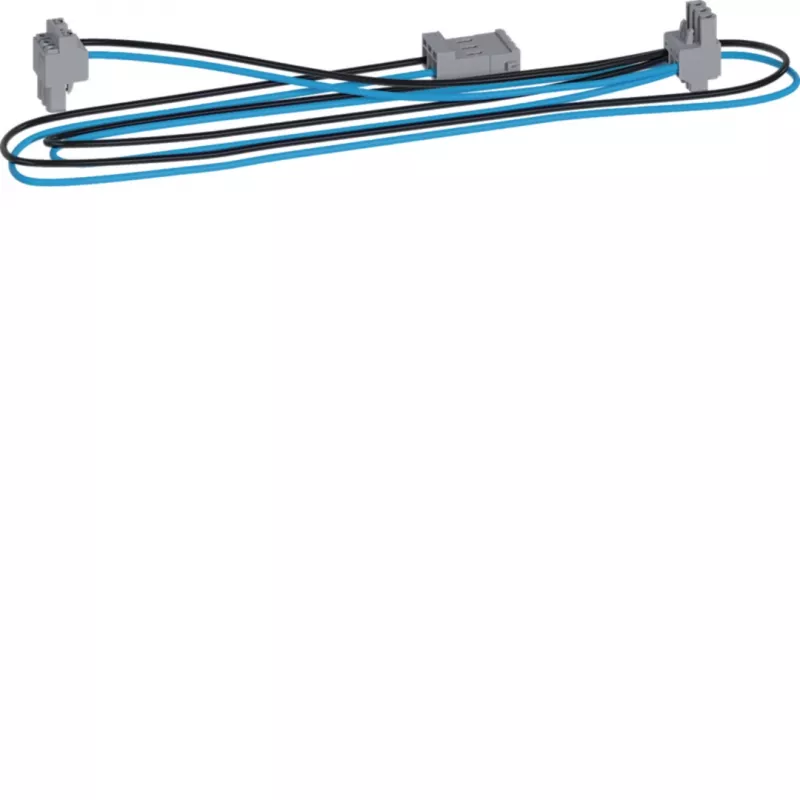

The Hager KU9S115YE is a Y-connection cable designed for use with Hager Tehalit BRN, BRS, and BRP series cable duct systems. It has one input connector (plug) and two output connectors (sockets), allowing a single power source to feed two separate loads. The cable is black/blue in colour with PVC insulation and sheath.

What stands out

• 1.5 mm² conductor cross-section supports up to 16 A current
• Three cores (phase, neutral, earth) for safe power distribution
• Compatible with Hager Tehalit BRN, BRS, BRP series
• Compact 1.5 m length for flexible installation

Technical details

• Cable type: Y-connection cable
• Input connector: Hager Tehalit system plug
• Output connectors: 2x Hager Tehalit system socket
• Cable length: 1.5 m
• Conductor cross-section: 1.5 mm²
• Number of cores: 3
• Rated voltage: 230 V AC
• Rated current: 16 A
• Insulation material: PVC
• Sheath material: PVC
• Cable colour: black/blue
• Application: power distribution in cable duct systems
• System compatibility: Hager Tehalit BRN, BRS, BRP series
• Operating temperature range: -5°C to +70°C
• Halogen-free: No
• Packaging unit: 1 piece

Our verdict

A reliable Y-connection cable for Hager Tehalit duct systems, offering solid 16 A capacity and a practical 1.5 m length. The black/blue colour coding aids identification in installations.
