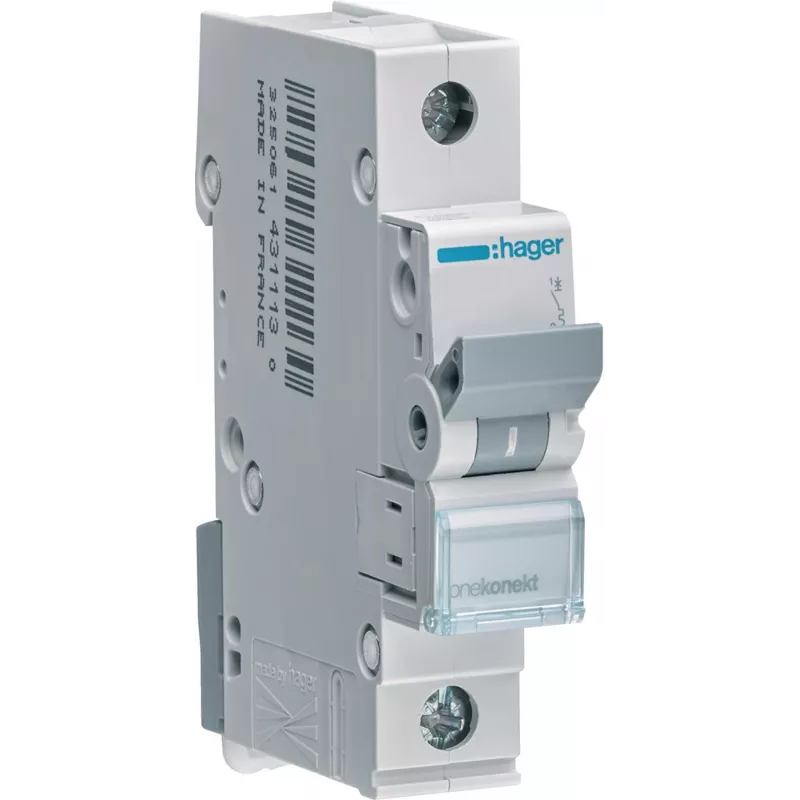

Hager MBN110E Interruptor automático 1P B 10A 6kA

The Hager MBN110E is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial electrical installations. With a rated current of 10A and a B tripping curve, it provides fast response to short circuits and overloads, ensuring safety and equipment longevity. This 1-pole breaker features a 6kA short-circuit breaking capacity and complies with EN 60898-1 standards.

Advantages

Compact 1-module design saves space on DIN rail; screw terminals for secure wiring; high breaking capacity for demanding applications; robust construction ensures long electrical and mechanical endurance.

Suitable for

• Lighting circuits
• Socket outlets
• Small appliance protection
• General purpose overcurrent protection in distribution boards

Key specifications

• Rated Current: 10 A
• Tripping Curve: B
• Number of Poles: 1
• Short-Circuit Breaking Capacity: 6 kA
• Rated Voltage (AC): 230/400 V
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Terminal Capacity (Rigid): 1 - 35 mm²
• Terminal Capacity (Flexible): 1 - 25 mm²
• Protection Degree (Front): IP40
• Protection Degree (Terminals): IP20
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard: EN 60898-1
• Module Width: 1 module (17.5 mm)
• Operating Temperature: -25 to +70 °C
• Connection Type: Screw terminals

Recommendations

For optimal protection, pair with Hager RCCBs and RCBOs. Ensure correct selection of tripping curve and current rating for your specific circuit requirements.
