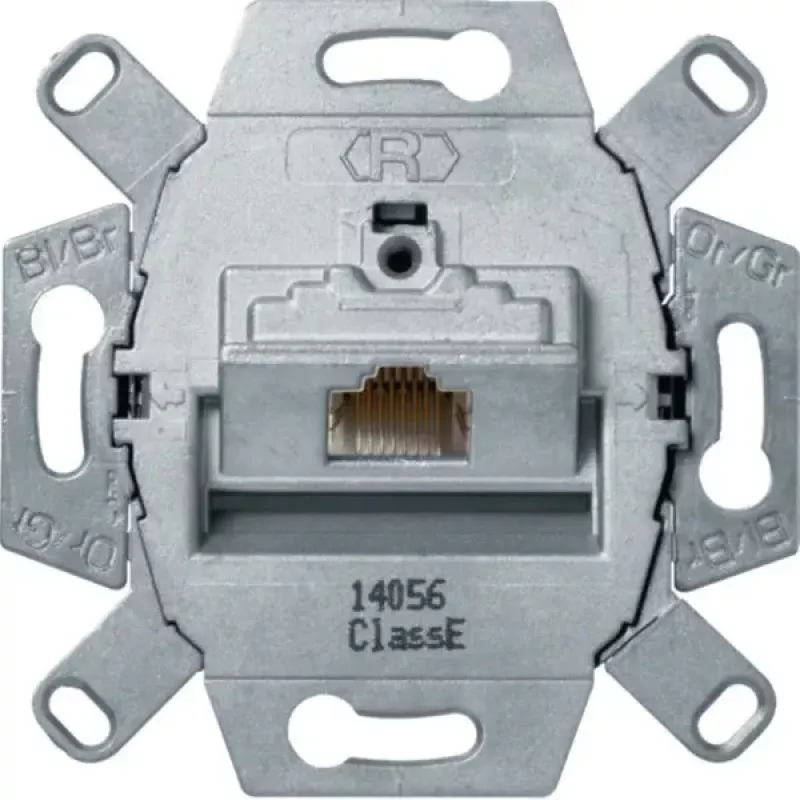

Hager toma UAE 8 polos Cat.6 WDF410766 toma de datos

Data socket for UAE installations with RJ45 connection, supporting Category 6 performance up to 250 MHz. Ideal for high-speed network connections in residential and commercial buildings.

Advantages

Unshielded twisted pair (UTP) design with LSA (IDC) terminals for quick, tool-free installation. Flush-mounted design with a depth of 37 mm fits standard wall boxes. Dual wiring scheme T568A/B for flexible network configuration.

Suitable for

• UAE installations
• Gigabit Ethernet networks (10/100/1000Base-T)
• Structured cabling systems

Key specifications

• Socket type: RJ45
• Category: Cat.6
• Number of poles: 8
• Shielding: UTP
• Mounting type: Flush-mounted
• Termination type: LSA (IDC)
• Colour: Polar White (RAL 9010)
• Material: Thermoplastic
• IP protection class: IP20
• Frequency range: up to 250 MHz
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-1
• Number of ports: 1
• Installation depth: 37 mm

Recommendations

Pair with Hager flush-mounted frames and covers for a seamless finish. Ensure proper cable strain relief and maintain bend radius for optimal performance.
