Hager univers Z campo de medición completo 4 emplazamientos de contador trifásico 1350mm ZK53X7T

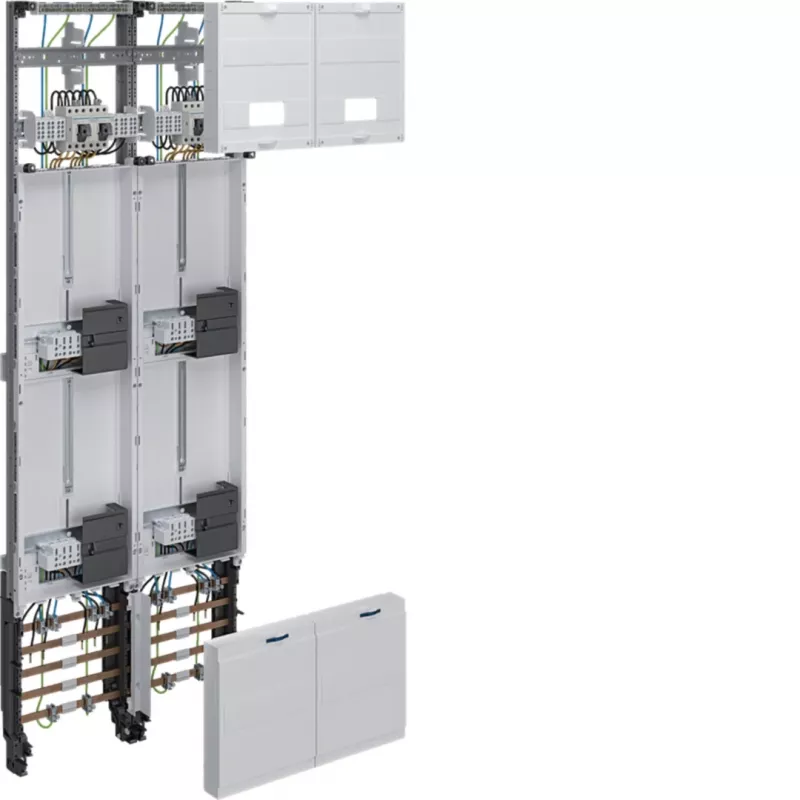

The Hager univers Z Complete Metering Field ZK53X7T is a pre-assembled, ready-to-install metering panel designed for efficient energy distribution in residential and commercial buildings. With 4 meter positions and 3-phase configuration, it provides a compact and reliable solution for TN-S and TN-C-S systems.

Advantages

This complete metering field simplifies installation by integrating all necessary components, including main line branch terminal (HLAK), meter mounting cross, and pre-wired meter connections. The galvanized sheet steel construction ensures durability, while the 5-pole busbar system (L1, L2, L3, N, PE) supports flexible wiring. Its compact dimensions (1350x250x120 mm) allow for easy integration into standard meter cabinets.

Suitable for

• Residential multi-unit buildings requiring individual metering
• Commercial spaces with multiple tenants or separate consumption zones
• New installations or retrofits in TN-S/TN-C-S networks

Key specifications

• Product Type: Complete Metering Field
• Series: univers Z
• Number of Meter Positions: 4
• Phase Configuration: 3-phase
• Rated Current (max.): 63 A
• Rated Voltage: 230/400 V AC
• Height: 1350 mm
• Width: 250 mm
• Depth: 120 mm
• Mounting Type: For meter cabinet installation
• Connection Terminals: Screw terminals
• Busbar System: 5-pole (L1, L2, L3, N, PE)
• Material: Galvanized sheet steel
• Protection Class (internal): IP2XC (when installed in a cabinet)
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

For optimal performance, ensure the meter cabinet provides adequate ventilation and protection. This field is designed for use with standard DIN rail mounted meters. Always follow local electrical codes and regulations during installation.
