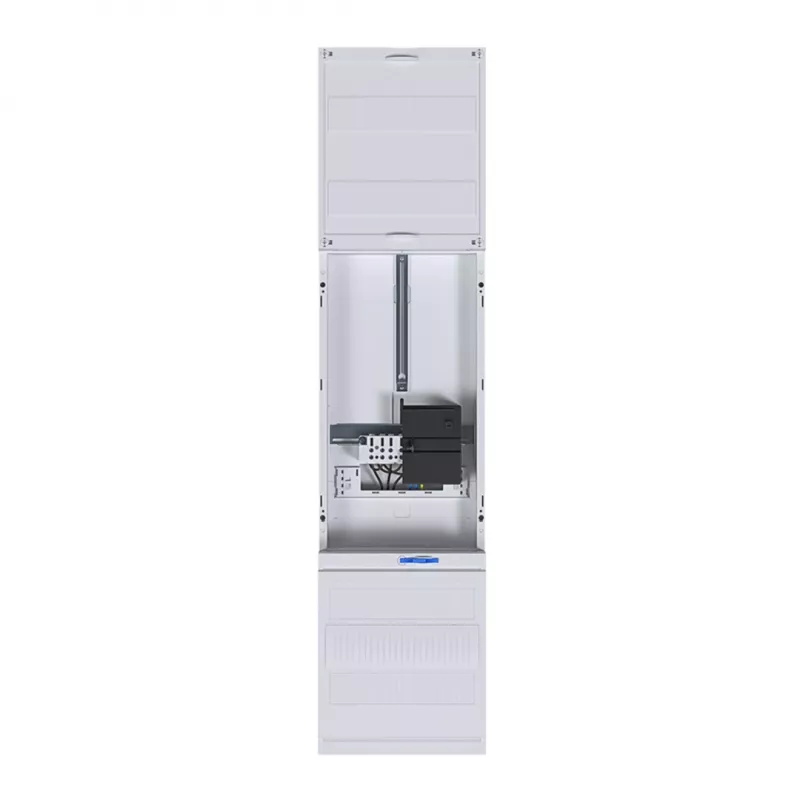

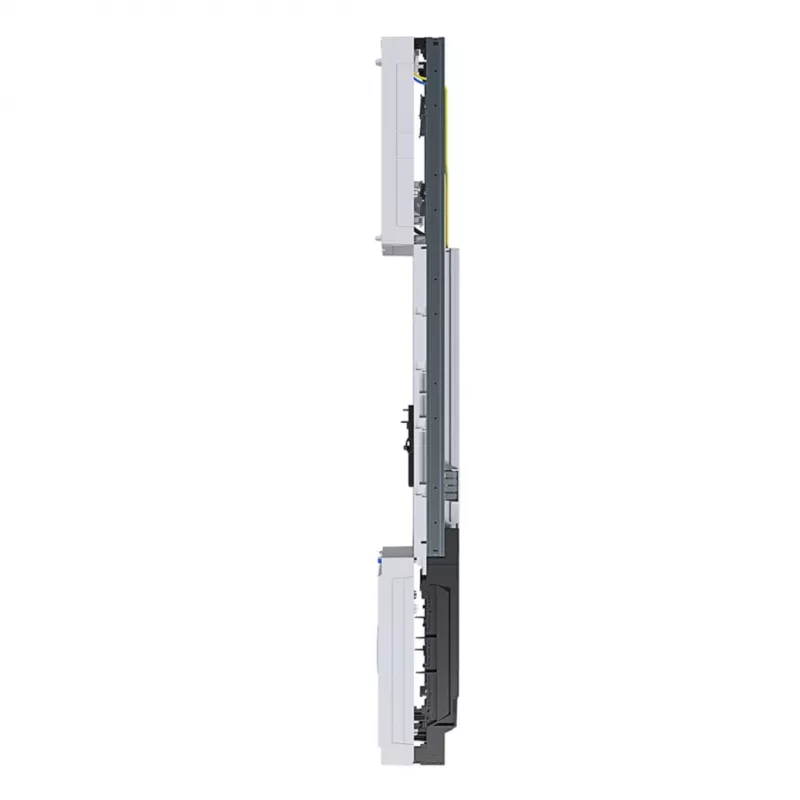

HAGER universZ centro de contadores completo ZH33W7N, 1 espacio eHZ, 3 puntos, 1050mm, 1 campo

For residential and commercial electrical installations requiring a standardized metering point, this HAGER universZ complete metering panel provides a ready-to-install enclosure for one electronic household meter (eHZ). The panel is supplied with the essential internal components, reducing on-site assembly time and ensuring compliance with German metering standards.

Who is it for

Electricians and panel builders who need a reliable, pre-wired metering solution for single-meter applications. It suits new installations or retrofits where a compact, 1-field panel with 3-point mounting is specified.

Main features

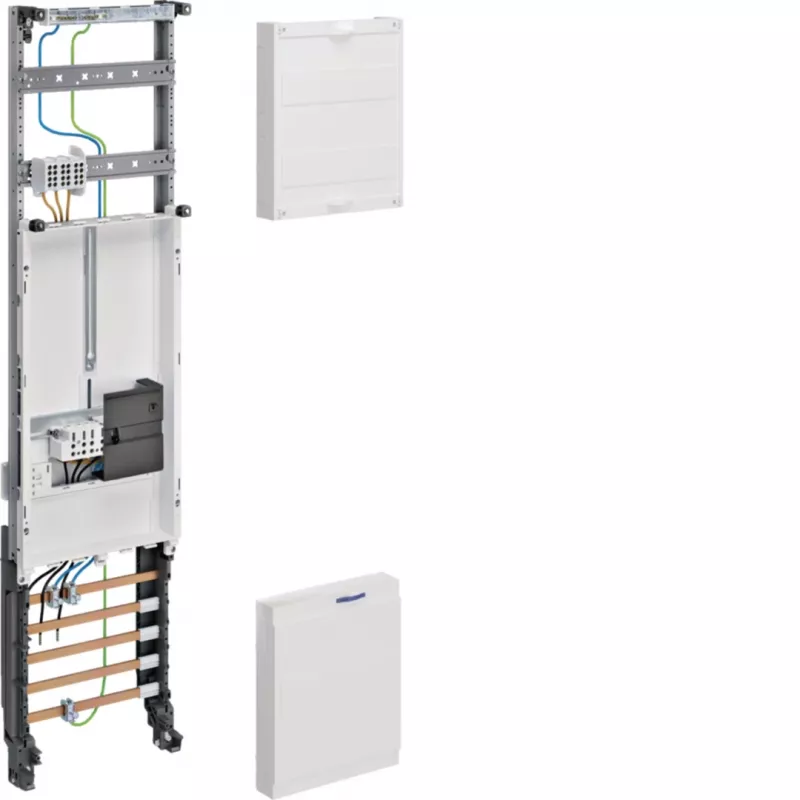

• Complete panel with meter cross, 5-pole busbar system, and main line terminal block (HLAK) up to 63 A
• Designed for one eHZ meter position with 3-point mounting
• Nominal dimensions: 1050 mm height, 250 mm width, 1 field
• Galvanized sheet steel construction for durability
• Includes PE/N terminals for safe grounding and neutral connections
• Rated voltage 230/400 V AC, suitable for standard low-voltage networks
• Contact protection IP2X as per DIN VDE 0603-1 and DIN 43870-1

Specifications

• Product type: Complete Metering Panel
• Series: universZ
• Number of meter positions: 1
• Meter type compatibility: eHZ (Electronic Household Meter)
• Mounting type: 3-point
• Number of fields: 1
• Nominal height: 1050 mm
• Nominal width: 250 mm
• Busbar system: 5-pole
• Main line terminal block: 5-pole, up to 63 A
• PE/N terminals: Included
• Material: Galvanized sheet steel
• Protection class: IP2X
• Rated voltage: 230/400 V AC
• Standards: DIN VDE 0603-1, DIN 43870-1
• Application: Residential and commercial metering

Tips

Verify the meter's mounting dimensions and the available wall space before installation. The panel's 3-point mounting system allows secure attachment; ensure all connections are torqued according to the meter manufacturer's instructions. For upstream protection, coordinate the main line terminal block rating with the supply cable size.
