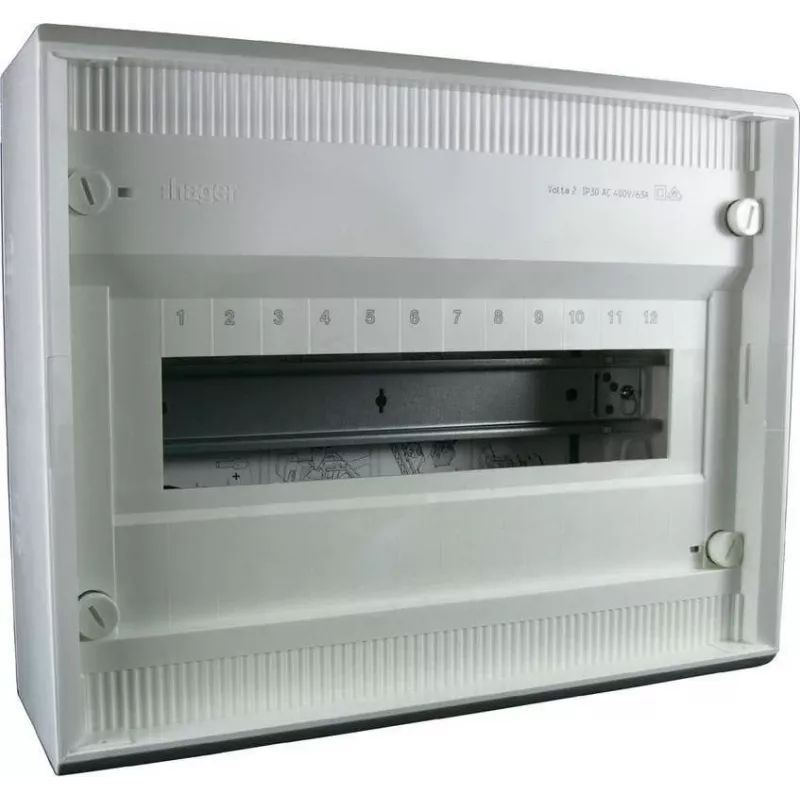

Hager VA12CN Armario de distribución Volta de superficie, 1 fila, 12 módulos, IP30, Blanco

Organising electrical circuits in a residential or light commercial setting requires a distribution board that is easy to install and offers clear access. The Hager VA12CN Volta surface-mounted enclosure provides a compact 1-row, 12-module solution with a hinged opaque door, pre-punched knockouts, and a clean white finish, simplifying wiring and maintenance.

Who is it for

Electricians and installers who need a reliable, surface-mounted distribution board for small installations such as apartments, garages, or workshops, where space is limited and straightforward access is essential.

Main features

• Surface-mounted (AP) design for easy wall installation
• 1 row with 12 module positions (PLE) according to DIN 4387
• IP30 ingress protection for indoor use
• Hinged opaque door, reversible left/right, opening angle 180°
• Plastic housing in white (RAL 9010)
• Pre-punched knockouts for cable entry at top, bottom, and rear
• N and PE terminals: 1x (4x16mm² + 8x10mm²) each
• Glow wire test temperature: 650 °C
• Operating temperature range: -5 to 40 °C

Specifications

• Brand: Hager
• Model: VA12CN
• MPN: VA12CN
• EAN: 3250616411234
• Mounting type: Surface-mounted (AP)
• Number of rows: 1
• Modules per row: 12
• Total modules: 12
• Ingress protection: IP30
• Protection class: II
• Housing material: Plastic (Polystyrene)
• Door type: Opaque, hinged
• Door colour: White (RAL 9010)
• Door opening angle: 180°
• Door hinge reversibility: Yes
• Glow wire test temperature: 650 °C
• Operating temperature range: -5 to 40 °C
• Storage temperature range: -25 to 70 °C
• N-terminal connections: 1x (4x16mm² + 8x10mm²)
• PE-terminal connections: 1x (4x16mm² + 8x10mm²)
• Standards: DIN 4387, EN 61439-3
• Cable entry: Pre-punched knockouts (top, bottom, rear)
• Max. device installation depth: 70 mm
• Rated voltage: Up to 400V AC

Tips

When installing, ensure the surface is flat and stable. Use the pre-punched knockouts for neat cable routing and take advantage of the reversible door to match your preferred opening direction.
