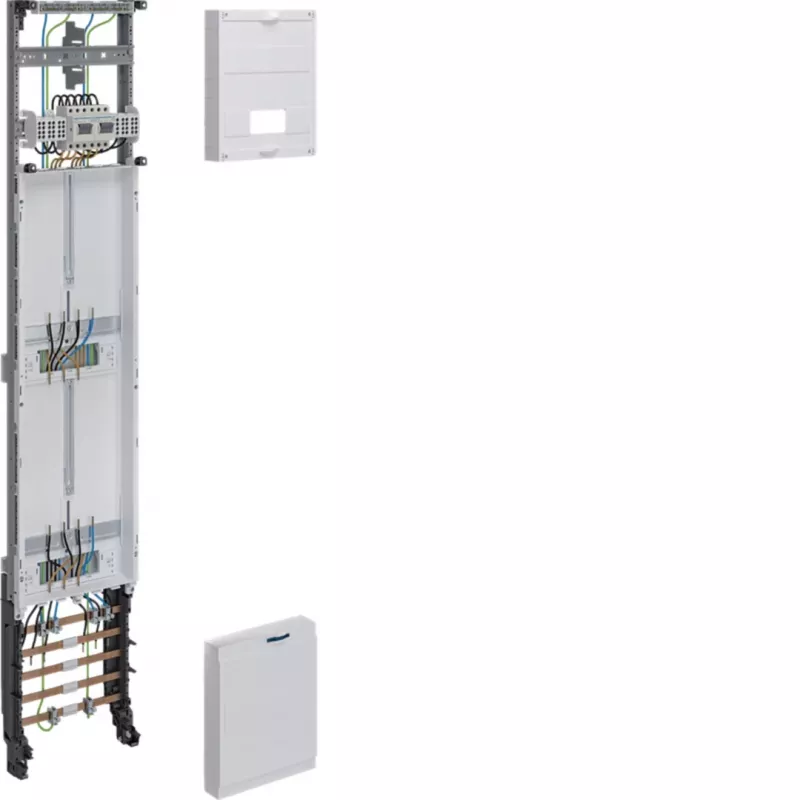

Hager universZ Cuadro de contadores completo 2 ZP 1 campo 1350mm NRW SH MV N-Sachsen (ZH53X3T)

The Hager universZ Complete Meter Panel ZH53X3T is a pre-configured, single-field distribution board designed for residential and commercial electrical installations. It accommodates 2 meter positions (ZP) and is approved for use in the German states of NRW, SH, MV, and N-Sachsen. The panel features a 5-pole busbar system rated at 63 A, with 5 distribution rows offering a total of 60 module units (PLE). Its compact dimensions (1350 mm height, 250 mm width) make it ideal for space-saving installations.

Advantages

This complete meter panel simplifies installation with its partially pre-wired design, reducing on-site labor. The galvanized steel sheet and plastic construction ensure durability and protection class IP2XC when installed in a suitable cabinet. The included PE/N terminals facilitate quick and safe connections.

Suitable for

• Residential electrical meter setups
• Commercial building power distribution
• Regional compliance in NRW, SH, MV, and N-Sachsen

Key specifications

• Product Type: Complete Meter Panel
• System: Hager universZ
• Number of Meter Positions: 2
• Number of Fields: 1
• Meter Mounting Type: BKE-I (Zählerkreuz)
• Overall Height: 1350 mm
• Overall Width: 250 mm
• Busbar System: 5-pole, 63 A
• Distribution Rows: 5 rows
• Module Units per Row: 12
• Total Module Units: 60
• Material: Galvanized steel sheet, plastic
• Protection Class: IP2XC
• Regional Approval: NRW, SH, MV, N-sachsen

Recommendations

For optimal performance, install this panel in a suitable Hager cabinet and ensure proper grounding. Compatible with Hager universZ accessories for expansion.
