Hager universZ Juego de cables de conexión 16mm² 4 polos Y871K

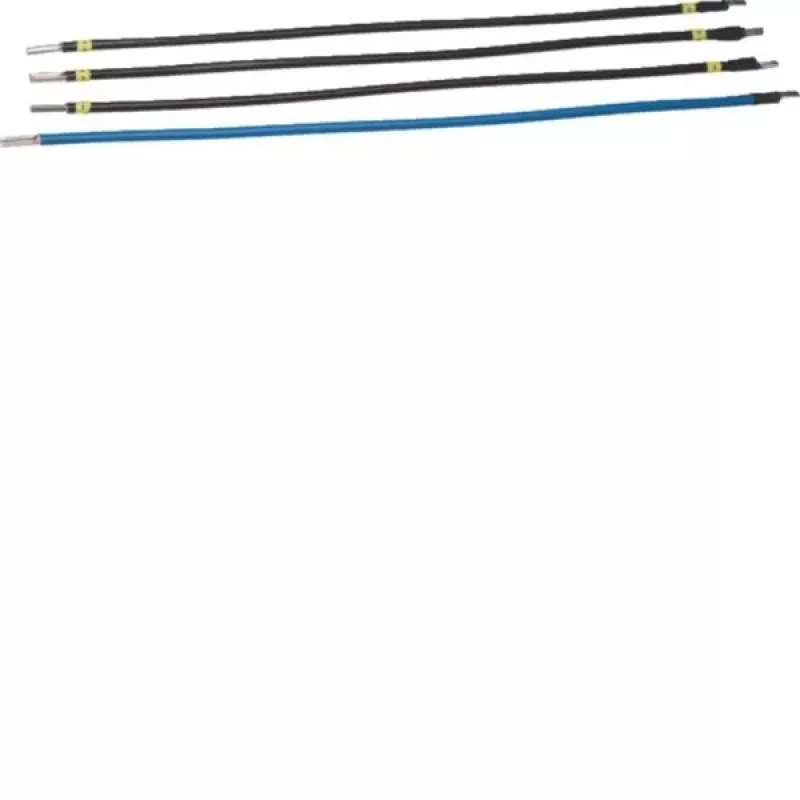

Electricians and panel builders use this Hager Y871K connection cable set to wire the main incoming supply in meter cabinets and distribution boards that are part of the universZ system. The set contains four pre-assembled, fine-stranded copper conductors, each with a cross-section of 16 mm² and a length of 350 mm, terminated with crimped ferrules for quick and secure connection.

Key specifications

• System compatibility: Hager universZ
• Cable cross-section: 16 mm²
• Number of conductors: 4-pole (3 phases + neutral)
• Conductor material: Copper
• Insulation material: PVC
• Nominal voltage: 230/400 V AC
• Nominal current: up to 63 A
• Cable length: 350 mm
• Connection type: pre-assembled with crimped wire ends (ferrules)
• Flexibility class: Class 5 (fine-stranded)
• Colour coding: brown, black, grey, blue
• Product type: connection cable set / access harness

Why choose it

The Y871K simplifies the main incoming connection in universZ enclosures. Its pre-assembled design reduces wiring time and the risk of connection errors, while the 16 mm² cross-section supports currents up to 63 A, making it suitable for typical residential and commercial distribution applications.

Ideal use cases

• Main incoming wiring in meter cabinets
• Internal connections in distribution boards
• Retrofit or upgrade of universZ installations

Good to know

The set includes four individual cables with standard phase colours (brown, black, grey, blue) for easy identification. The conductors are fine-stranded (Class 5) for flexibility during installation, and the PVC insulation provides basic mechanical and electrical protection.
