Hager universZ Panel de contador completo 1350mm 1 posición de contador 1 posición de reserva NRW/SH/MV/NI

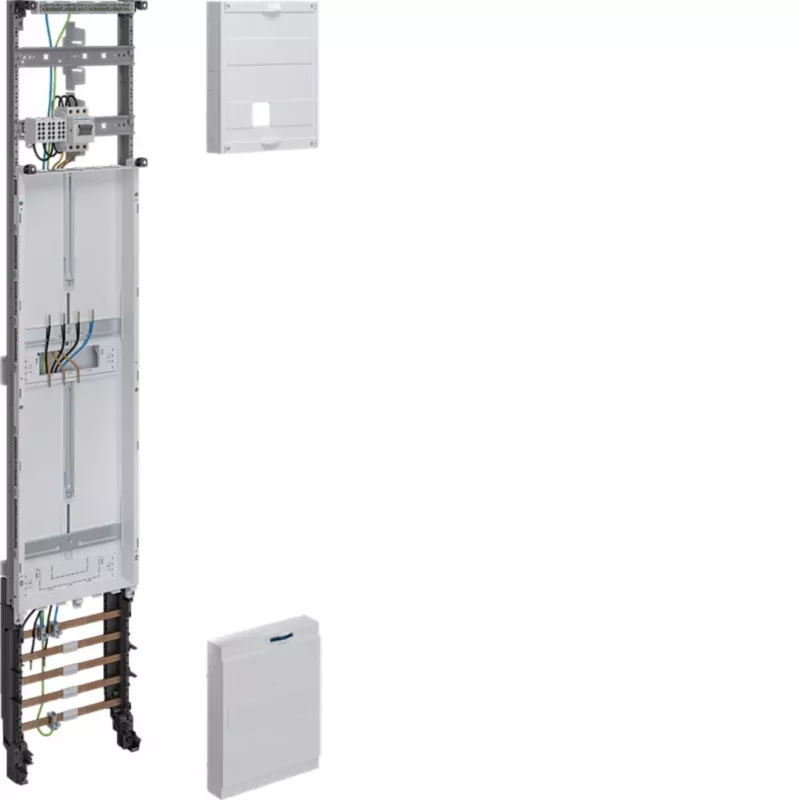

The Hager universZ Complete Meter Panel (Komplettfeld) is a pre-configured distribution board designed for residential and commercial metering applications. With a height of 1350 mm, it accommodates 1 meter position and 1 reserve position, making it ideal for single-meter installations with future expansion capability. This panel is approved for use in the German states of NRW, SH, MV, and NI.

Advantages

Space-saving design with 5 distribution rows and 12 modules per row (TE) for flexible circuit allocation. The integrated APZ field (Anschlussraum für Zusatzanwendungen) provides additional space for auxiliary devices. QuickConnect PE/N terminals simplify installation and reduce wiring time. The 5-pole busbar system supports up to 63 A rated current, ensuring reliable power distribution.

Suitable for

• Single-meter residential buildings
• Commercial metering points requiring eHZ or conventional meters
• Regional projects in NRW, SH, MV, and NI (Germany)
• Installations requiring IP2XC protection class

Key specifications

• System: universZ
• Panel Type: Complete Meter Panel
• Number of Meter Positions: 1
• Number of Reserve Positions: 1
• Overall Height: 1350 mm
• Overall Width: 250 mm
• Overall Depth: 135 mm
• Installation Depth: 120 mm
• Distribution Rows: 5
• Modules per Row (TE): 12
• Regional Approval: NRW, SH, MV, NI
• Busbar System: 5-pole
• Rated Current (max.): 63 A
• Protection Class: IP2XC (when installed)
• Meter Compatibility: eHZ and conventional meters
• PE/N Terminal Type: QuickConnect
• PE Terminals: 2x (4x16mm² + 2x25mm²)
• N Terminals: 2x (4x16mm² + 2x25mm²)
• Material: Sheet steel
• APZ Field: 1

Recommendations

For optimal performance, pair this panel with Hager's range of modular devices and accessories. Ensure compliance with local electrical regulations during installation.
