HAGER VU602WWH armario distribuidor empotrable Volta con toma de corriente y puerta de plástico blanca

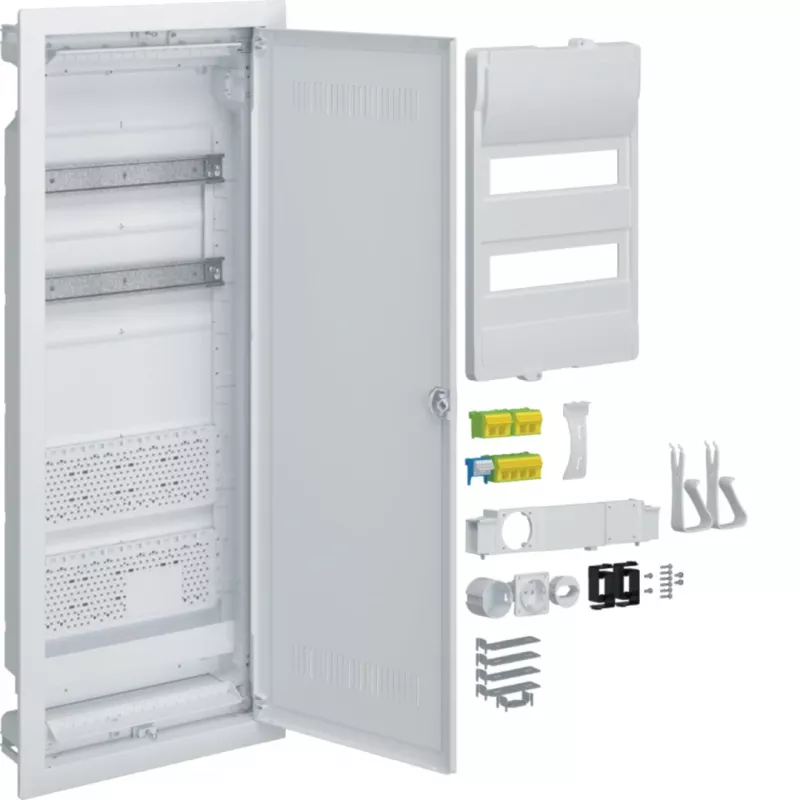

Managing electrical distribution in residential or commercial spaces often requires a balance between accessibility and aesthetics. The HAGER VU602WWH Volta distribution board addresses this by integrating a convenient socket outlet directly into a flush-mounted enclosure, eliminating the need for separate wall sockets near the board.

Who is it for

Electricians and installers seeking a reliable, space-saving solution for flush-mounted electrical distribution with easy access to power for testing or temporary equipment. Ideal for modern interiors where a clean, white finish is desired.

Main features

• Flush-mounted design for seamless integration into walls
• Includes a 3-way Schuko socket (230 V, 16 A) for convenient power access
• Opaque white plastic door (RAL 9010) with robust steel sheet cabinet
• Two rows for modular devices, with included perforated mounting plate, patch panel holder, cable ties, and labeling strips
• Protection class IP30 and impact resistance IK07

Specifications

• Installation Type: Flush-mounted
• Series: Hager Volta
• Number of Rows: 2
• Door Type: Opaque Plastic Door
• Door Color: White (RAL 9010)
• Integrated Socket: Yes, 3-way Schuko socket
• Protection Class (IP): IP30
• Impact Resistance (IK): IK07
• Cabinet Material: Steel sheet
• Door Material: Plastic
• Rated Voltage (Socket): 230 V AC
• Rated Current (Socket): 16 A
• Operating Temperature: -5 to 40 °C
• External Height: 630 mm
• External Width: 348 mm
• External Depth: 94.5 mm
• Niche Height (Cut-out): 605 mm
• Niche Width (Cut-out): 335 mm
• Niche Depth (Cut-out): 90 mm
• Included Accessories: Perforated mounting plate, patch panel holder, cable ties, labeling strips

Tips

When planning the installation, ensure the wall cut-out dimensions match the niche requirements (605 x 335 x 90 mm) for a flush fit. The integrated socket is ideal for powering tools during maintenance or connecting temporary equipment without opening the door.
