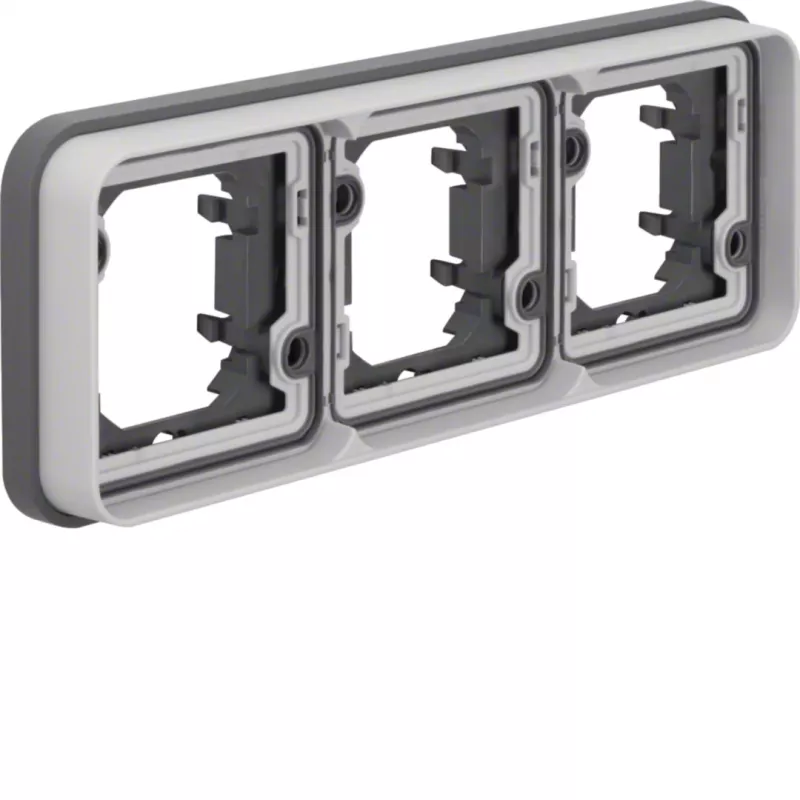

Hager W.1 WNA403 marco de empotrar 3 elementos horizontal IP55 gris

The Hager W.1 WNA403 is a high-quality 3-gang flush-mounted frame designed for horizontal installation. Part of the Hager W.1 series, this frame provides a robust and stylish solution for mounting switches, sockets, and other modular devices in residential and commercial environments. With an IP55 rating, it offers excellent protection against dust and water jets, making it suitable for outdoor or demanding indoor applications.

Advantages

This frame combines durability with a sleek matte finish. Its thermoplastic material is halogen-free, UV-resistant, and impact-resistant (IK07), ensuring long-lasting performance even in harsh conditions. The flush-mounted design integrates seamlessly into walls, providing a clean and professional appearance.

Suitable for

• Hager W.1 series inserts (switches, sockets, etc.)
• Horizontal 3-gang configurations
• Indoor and outdoor installations requiring IP55 protection
• Residential, commercial, and industrial applications

Key specifications

• Product Type: Frame
• Number of Gangs: 3
• Mounting: Flush-mounted (UP)
• Orientation: Horizontal
• IP Rating: IP55
• Series: Hager W.1
• Colour: Grey
• Material: Thermoplastic
• Halogen-free: Yes
• UV-resistant: Yes
• Impact Resistance: IK07
• Surface Finish: Matt
• Operating Temperature: -25 to +45 °C
• Glow Wire Test: 850 °C

Recommendations

For optimal performance, use with Hager W.1 series inserts. Ensure proper sealing for outdoor installations to maintain IP55 protection.
