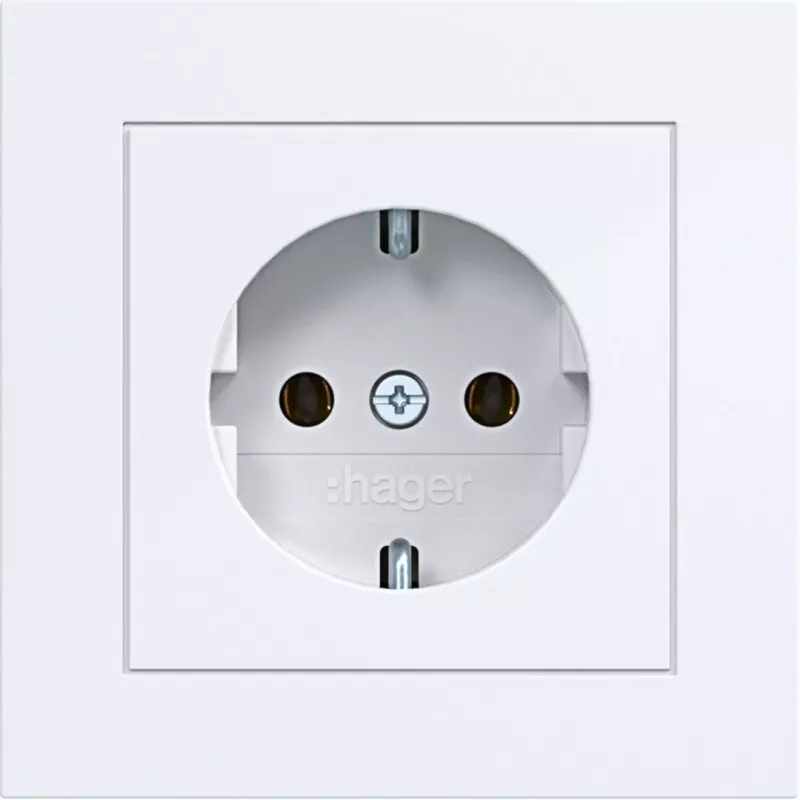

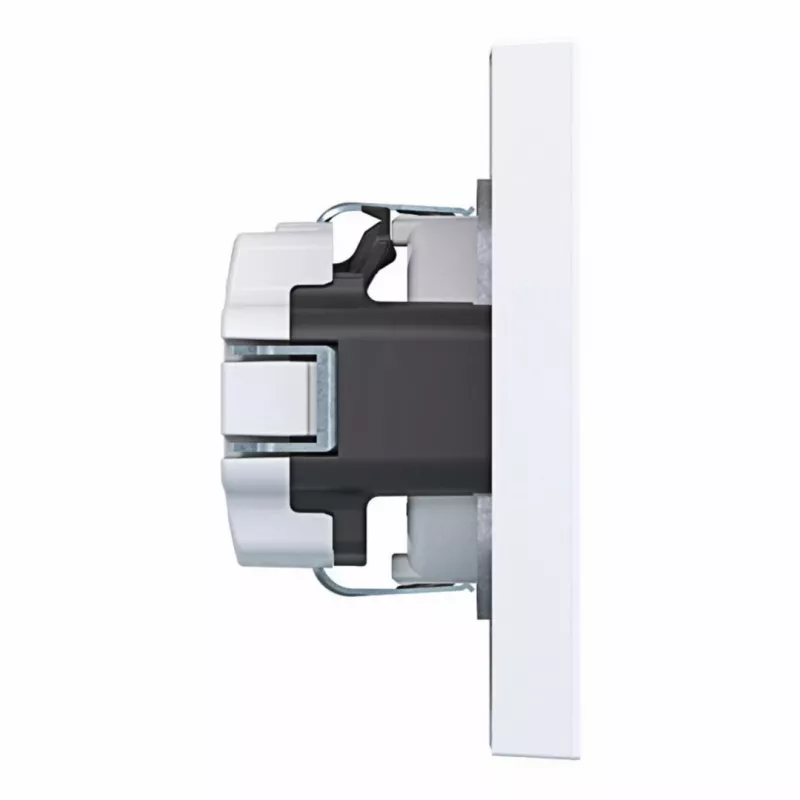

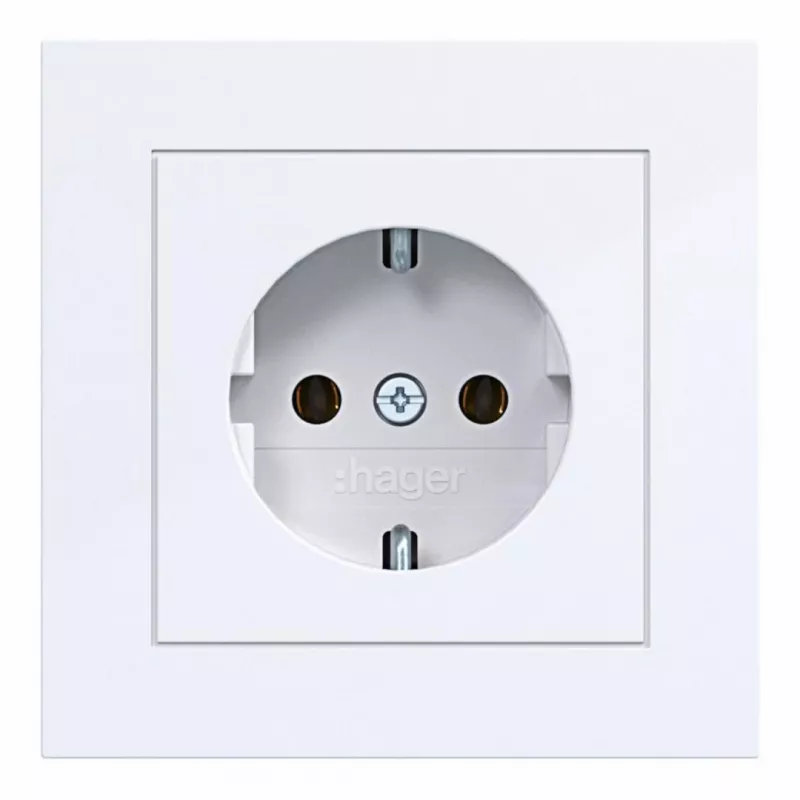

Hager WAS1120WG toma de corriente SCHUKO con tapa abatible, línea de diseño A.1, blanco claro brillante, IP44, 16A, 250V, bornes sin tornillos

The Hager WAS1120WG is a high-quality SCHUKO socket outlet from the A.1 design line, featuring a hinged cover for enhanced protection. Designed for flush mounting, this socket combines modern aesthetics with reliable performance, making it ideal for residential and commercial installations. The light white glossy finish ensures a clean, contemporary look that blends seamlessly with any interior.

Advantages

This socket outlet offers several key benefits: the hinged cover provides protection against dust and moisture when not in use, while the screwless push-in terminals enable quick and secure wiring. With an IP44 rating, it is suitable for use in bathrooms, kitchens, and other areas where splash water may occur. The thermoplastic material is halogen-free, contributing to a safer environment.

Suitable for

• Flush-mounted installations in residential and commercial buildings
• Rooms requiring splash water protection (IP44) such as bathrooms, kitchens, and laundry rooms
• Integration with Hager A.1 series frames for a coordinated design

Key specifications

• Socket Type: SCHUKO (Type F)
• Design Line: Hager A.1
• Colour: Light White, Glossy Finish
• RAL Colour (approx.): RAL 9010
• Connection Method: Screwless (Push-in) Terminals
• Special Feature: Hinged Cover (Klappdeckel)
• IP Protection Rating: IP44
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting Type: Flush-mounted (Unterputz)
• Material: Thermoplastic, Halogen-free
• Number of Sockets: 1-gang
• Child Protection: No
• Suitable for: Standard flush-mounted boxes
• Compatibility: Requires Hager A.1 series frame

Recommendations

For a complete installation, pair this socket outlet with a matching Hager A.1 series frame and cover. Ensure that the flush-mounted box is properly installed and that the wiring complies with local electrical codes. The screwless terminals accept solid and stranded conductors for easy installation.
