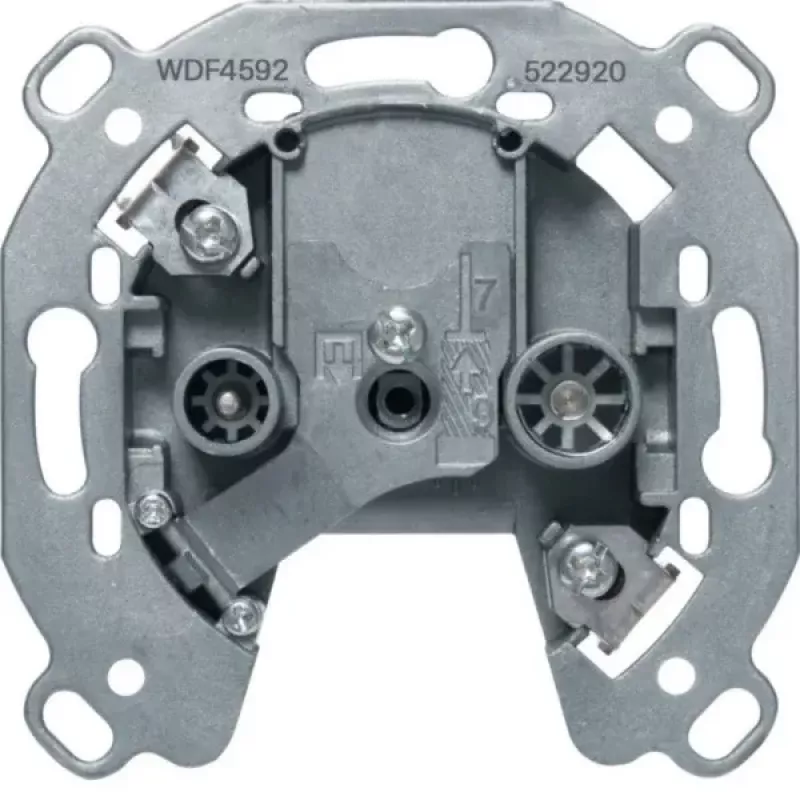

Hager WDF4592 Toma de antena 2 elementos TV/FM, empotrada, blanca

For residential TV and radio distribution in single-cable systems, the Hager WDF4592 antenna socket provides separate TV and FM outputs for connecting a television and a radio receiver at the final outlet of a series. Its flush-mounted design integrates into standard wall boxes, and the white insert blends with common switch ranges.

Key specifications

• Socket type: TV & Radio (2 outlets: TV IEC male, FM IEC female)
• Frequency range: TV 47–862 MHz, FM 87.5–108 MHz
• Insertion loss: 1.5 dB (TV and FM)
• Decoupling loss: >20 dB
• Return loss: >10 dB
• Impedance: 75 Ohm
• Shielding factor: >75 dB
• Mounting: Flush-mounted
• Material: Plastic
• Colour: White

Why choose it

This socket is engineered for reliable signal distribution to both TV and FM receivers, with high shielding to minimize interference. Its two dedicated outputs eliminate the need for separate outlets, simplifying installation in living rooms, bedrooms, or offices.

Ideal use cases

• Connecting a TV and a radio tuner at the last point of a cable run
• Upgrading existing antenna outlets in residential buildings
• Flush-mounted installations where a clean, white finish is required

Good to know

The socket is suitable for single cable systems and is intended as the last socket in a series. It does not pass DC, so it is not for systems requiring remote powering of amplifiers.
