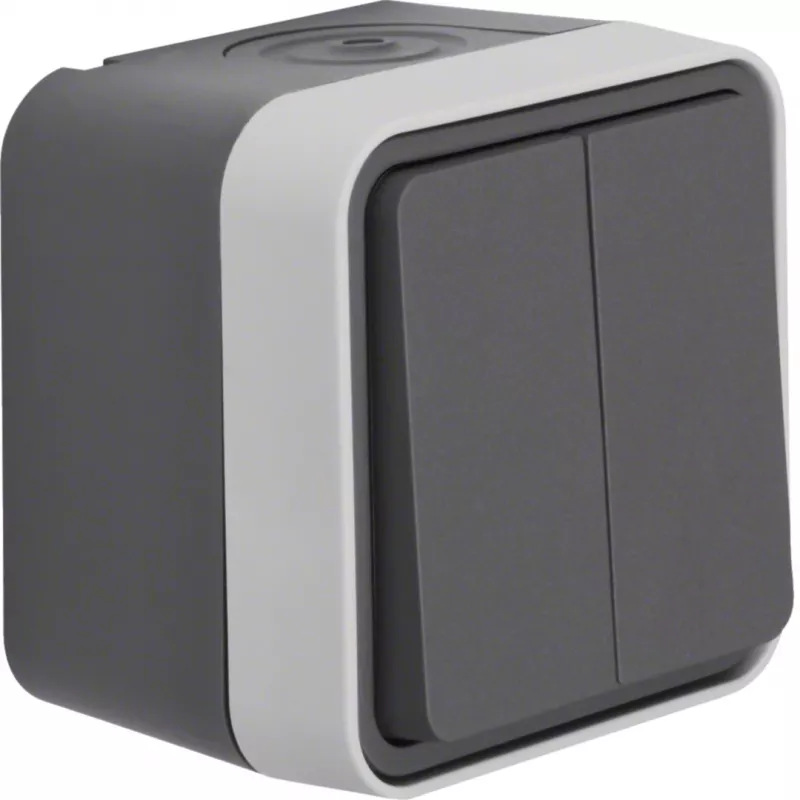

Hager WNC044 pulsador doble de superficie 2 NA gris

The Hager WNC044 is a high-quality series push button designed for surface-mounted (AP) installations. With two normally open (NO) contacts, it provides reliable momentary switching for indoor applications. Its robust thermoplastic construction and screw terminal connections ensure durability and easy installation.

Advantages

This push button offers a compact design suitable for various control applications. The surface-mounting feature simplifies installation on walls or panels. The grey color blends seamlessly with modern interiors.

Suitable for

• Lighting control in residential and commercial buildings
• Call systems and signaling applications
• Industrial control panels

Key specifications

• Switch Type: Series Push Button
• Mounting: Surface-mounted (AP)
• Number of Contacts: 2 Normally Open (NO)
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Protection Class: IP20
• Material: Thermoplastic
• Halogen-free: Yes
• Connection: Screw terminals
• Terminal Capacity: 1.5 - 2.5 mm²
• Operating Temperature: -5 to +40 °C
• Number of Rockers: 2

Recommendations

For optimal performance, use with compatible Hager wiring accessories. Ensure proper installation by a qualified electrician.
