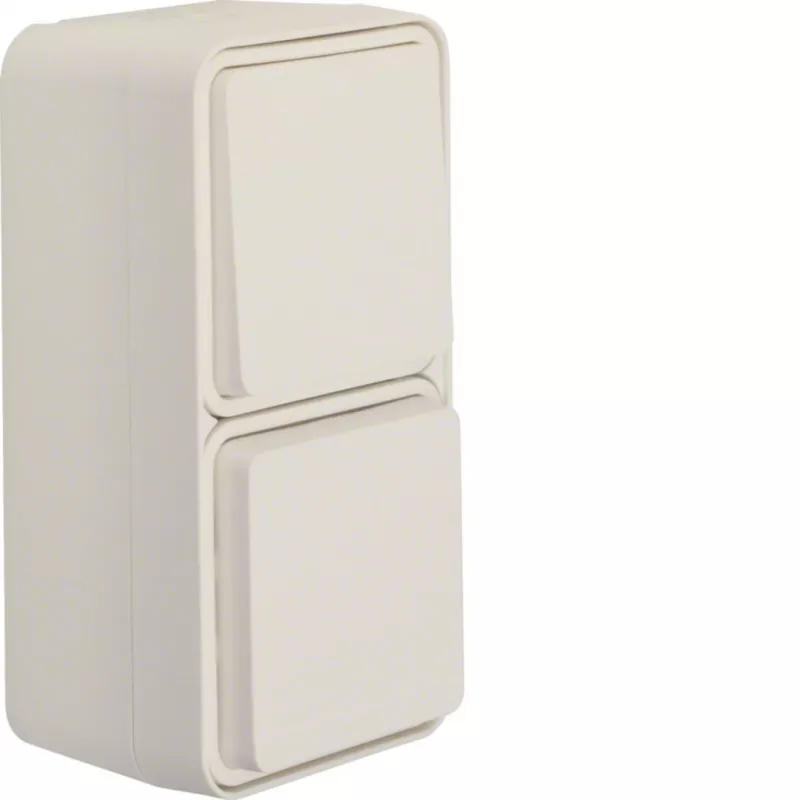

Hager WNC080B Conmutador/toma SCHUKO con tapa abatible superficie vertical blanco polar

The Hager WNC080B is a robust changeover switch combined with a SCHUKO socket outlet, designed for surface-mounted installation in damp rooms and outdoor areas. Featuring a hinged lid for added protection, this unit offers reliable switching and power supply in a compact vertical design. Manufactured by Hager, a trusted brand in electrical installation, the WNC080B is part of the W.1 series and delivers high-quality performance for demanding environments.

Advantages

This combination device saves space and installation time by integrating a switch and socket in one unit. The hinged lid protects the socket from dust and moisture when not in use, enhancing safety and longevity. With IP44 protection, it is suitable for use in bathrooms, kitchens, terraces, and other areas exposed to splashing water. The screw terminals ensure secure and easy wiring for rigid conductors up to 2.5 mm².

Suitable for

• Damp rooms such as bathrooms and laundry rooms
• Outdoor areas like terraces and balconies
• Commercial and industrial environments requiring robust electrical installations
• Surface-mounted installations where flush mounting is not possible

Key specifications

• Type: Changeover switch with SCHUKO socket (Type F)
• Mounting: Surface-mounted (AP), vertical orientation
• Rated voltage: 250 V AC
• Rated current: 16 A (socket), 10 A (switch)
• Protection class: IP44
• Material: Thermoplastic, colour Polar White (RAL 9010)
• Connection: Screw terminals, rigid up to 2.5 mm²
• Halogen-free: Yes
• Series: Hager W.1

Recommendations

For optimal performance, ensure that the device is installed by a qualified electrician and that the ambient conditions comply with the specified IP rating. Pair with Hager surface-mounted enclosures for a complete installation.
