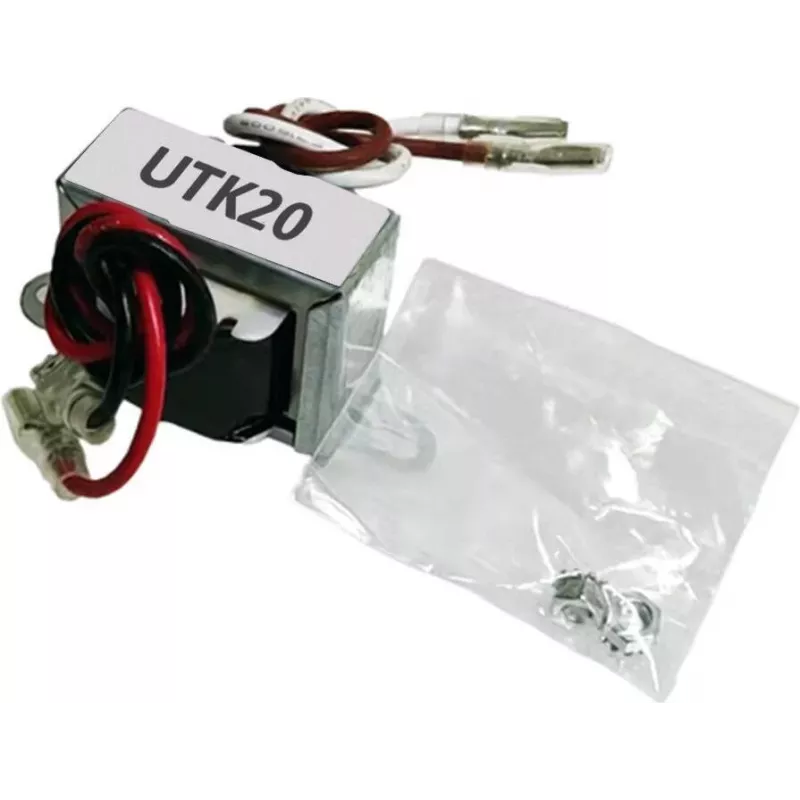

INTUSONIC UTK20 kit transformador de línea de 100V 20W para altavoces de 8 ohmios 12604182

Installers setting up 100V PA systems in shops, offices, or hospitality venues use the INTUSONIC UTK20 transformer kit to connect standard 8-ohm loudspeakers to constant-voltage lines. This 20W audio transformer converts a 100V line signal down to speaker level, enabling safe and efficient distribution across multiple speakers.

Key specifications

• Transformer type: Audio transformer
• Maximum power output: 20 W
• Input voltage system: 100V constant voltage (ELA)
• Speaker impedance compatibility: 8 Ohm
• Frequency range: 50 Hz - 18 kHz
• Mounting type: Chassis mount
• Connection type: Screw terminals
• Core construction: Laminated steel
• Number of channels: 1 (Mono)

Why choose it

The UTK20 provides a reliable impedance conversion for integrating 8-ohm speakers into 100V distributed audio systems. Its laminated steel core ensures efficient power transfer with minimal losses, while screw terminals allow secure, tool-free wiring. The kit includes the transformer and mounting hardware for straightforward installation.

Ideal use cases

• Background music and paging in retail stores
• Public address in offices and schools
• Multi-zone audio in restaurants and hotels

Good to know

The transformer is rated for 20W continuous power and operates within the standard 100V line voltage. It is CE compliant and suitable for commercial audio installations.
