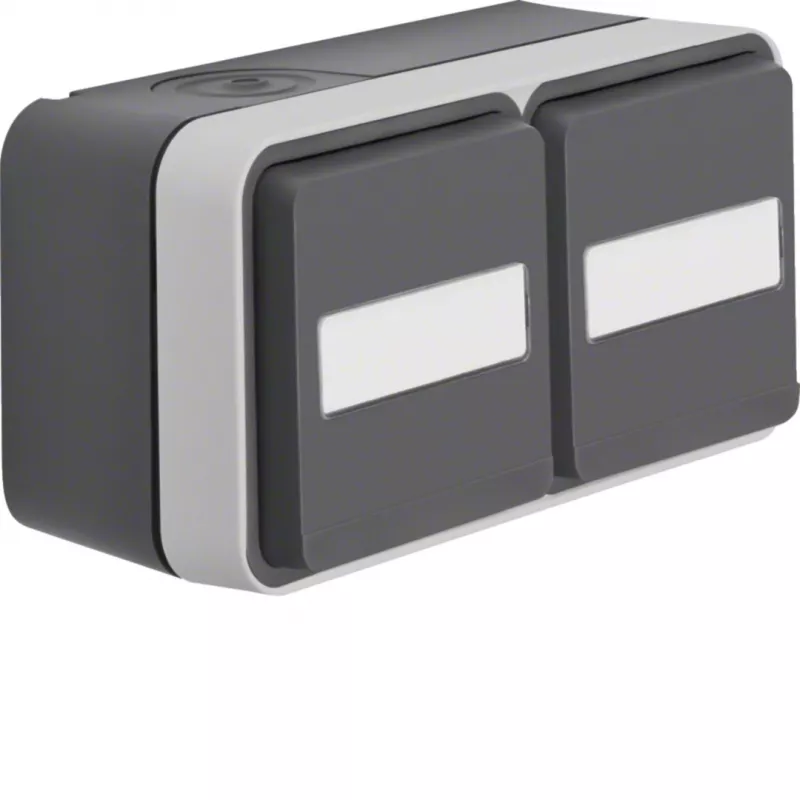

Hager WNC145 toma de corriente SCHUKO de superficie, 2 tomas, horizontal, tapa abatible, campo de rotulación, blanco polar

This surface-mounted SCHUKO socket outlet from Hager's W.1 series offers two horizontally arranged sockets with hinged covers and an integrated labelling field, providing a practical and safe power solution for areas requiring splash protection (IP44).

Advantages

The hinged covers protect the sockets from dust and moisture when not in use, while the labelling field allows for clear identification of circuits or connected devices. The robust thermoplastic housing ensures durability and impact resistance (IK07).

Suitable for

• Workshops and utility rooms where surface mounting is preferred
• Areas requiring splash-proof electrical installations
• Applications needing clear socket labelling

Key specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 2
• Mounting type: Surface-mounted
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Protection degree: IP44
• Material: Thermoplastic
• Colour: Polar White
• Connection type: Screw terminals
• Halogen-free: Yes
• Impact resistance: IK07
• Terminal capacity: Up to 2 x 2.5 mm²
• Operating temperature: -5 to 40 °C
• Glow wire test: 850 °C

Recommendations

For reliable and clearly identifiable power distribution in demanding environments, this Hager outlet combines safety, durability, and ease of use.
