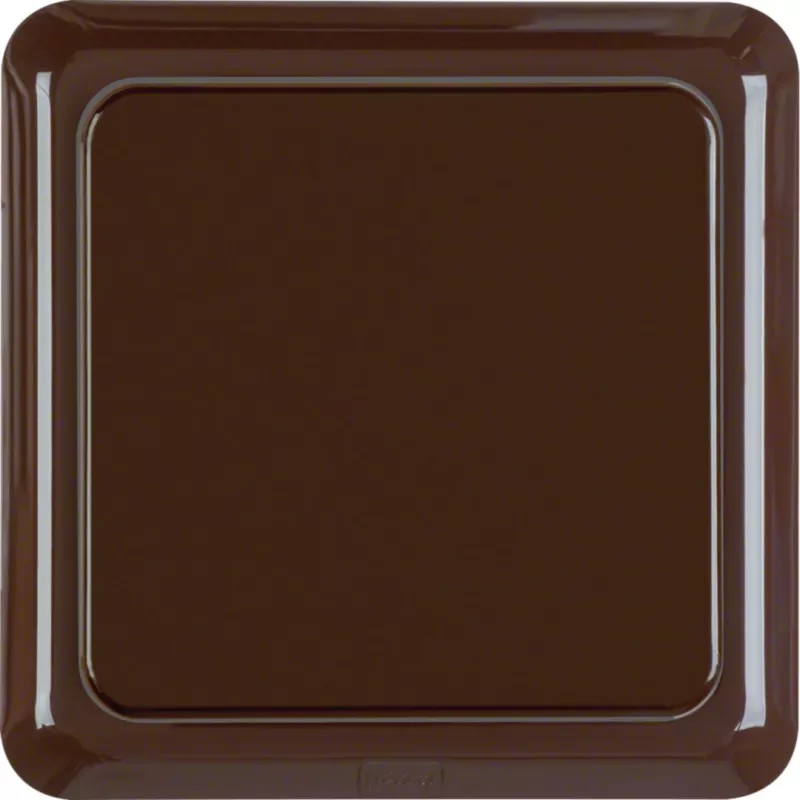

Hager WWG1111BR Toma SCHUKO con tapa abatible y marco WG UP IP44 marrón

The Hager WWG1111BR is a high-quality SCHUKO socket outlet designed for flush-mounted installation in damp rooms and outdoor protected areas. With an IP44 rating, it offers reliable protection against splashing water and dust ingress. The socket features a hinged lid that provides additional safety when not in use, and comes with a matching frame from the Hager WG UP series. Its brown glossy finish makes it ideal for discreet integration into various interior designs.

Advantages

This socket outlet combines robust construction with ease of installation. The screw terminals allow for secure connection of rigid cables up to 2.5 mm², while the claw/screw fastening ensures a firm hold in standard flush-mounted boxes. The hinged lid protects against accidental contact and keeps the socket clean when not in use. The thermoplastic material is halogen-free and offers good impact resistance (IK05).

Suitable for

• Damp rooms such as bathrooms, kitchens, and laundry rooms
• Protected outdoor areas like verandas and garages
• Residential and commercial installations requiring IP44 protection

Key specifications

• Socket type: SCHUKO (Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Ingress protection: IP44
• Mounting type: Flush-mounted (UP)
• Colour: Brown
• Material: Thermoplastic, halogen-free
• With hinged lid and frame
• Connection: Screw terminals (1.5 - 2.5 mm² rigid)
• Operating temperature: -5 to +40 °C
• Impact resistance: IK05
• Installation depth: approx. 32 mm

Recommendations

For best results, use with compatible Hager WG UP series frames and flush-mounted boxes. Ensure proper sealing of the installation area to maintain IP44 protection. Suitable for use with standard SCHUKO plugs.
