Hager WWG1111WP Toma SCHUKO con tapa abatible y marco WG UP IP44 blanco

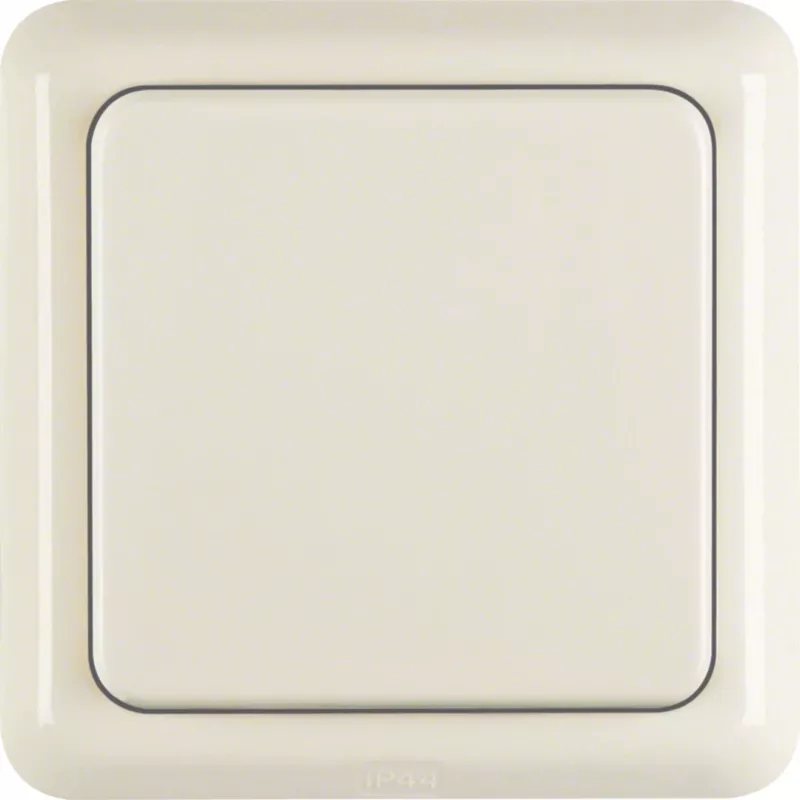

The Hager WWG1111WP is a high-quality SCHUKO socket outlet designed for flush-mounted installation. It features a hinged lid and an integrated frame, making it ideal for use in the Hager WG design line. With an IP44 rating, it offers protection against splashing water, suitable for outdoor or damp indoor areas. The socket is finished in polar white (RAL 9010) with a glossy surface, ensuring a modern and clean appearance.

Advantages

This socket combines functionality and safety. The hinged lid protects the socket when not in use, preventing dust and moisture ingress. The IP44 rating ensures reliable operation in challenging environments. The flush-mounted design integrates seamlessly into walls, and the included frame simplifies installation.

Suitable for

• Outdoor areas such as terraces, balconies, and gardens
• Damp indoor spaces like bathrooms, kitchens, and laundry rooms
• Commercial and residential installations requiring IP44 protection

Key specifications

• Socket Type: SCHUKO (Type F)
• Number of Sockets: 1-gang
• Ingress Protection: IP44
• Mounting Type: Flush-mounted (UP)
• Colour: Polar White (RAL 9010), glossy
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Connection Type: Screw terminals
• Material: Thermoplastic, halogen-free
• Features: With hinged lid, with frame
• Design Line: Hager WG
• Terminal Capacity: Max. 2.5 mm² (rigid conductor)
• Type of Fastening: Claw and screw fastening
• Impact Resistance: IK05
• Child Protection: No

Recommendations

For best results, pair with other Hager WG series devices. Ensure proper sealing of the flush-mounted box to maintain IP44 protection. Professional installation recommended.
