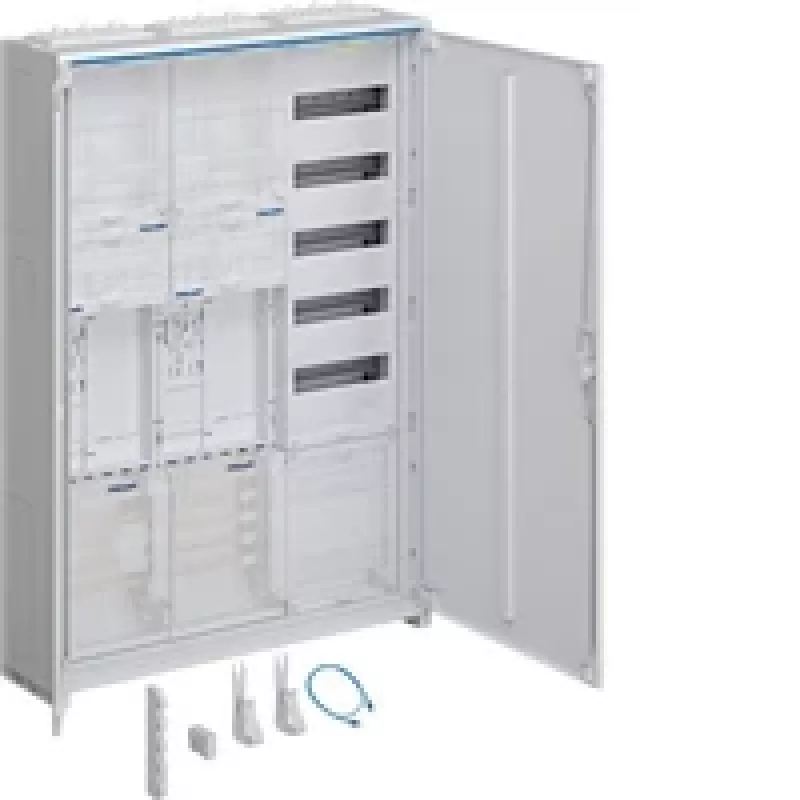

Hager ZB33ET225W1 armario universal 800x205x1100 mm superficie IP44 blanco tráfico RAL 9010 3 campos

The Hager ZB33ET225W1 is a high-quality universal cabinet designed for energy distribution and metering applications. This surface-mounted enclosure offers robust protection and ample space for organizing electrical components. With its IP44 rating and double insulation (Class II), it ensures safe operation in indoor environments. The cabinet features a steel door with a standard lock and a 180° opening angle for easy access.

Advantages

Durable steel sheet construction with traffic white RAL 9010 finish. Pre-punched cable entries at top and bottom simplify installation. Impact resistance IK09 provides protection against mechanical shocks. The cabinet complies with DIN VDE 0603-1 and DIN 43870-1 standards.

Suitable for

• Energy distribution boards
• Metering cabinets
• Distribution boards in commercial and residential buildings

Key specifications

• Dimensions: 800 x 205 x 1100 mm (WxHxD)
• Protection class: II (double insulated)
• IP rating: IP44
• Material: Steel sheet
• Colour: Traffic White (RAL 9010)
• Number of fields: 3 (field width 250 mm)
• Door: Steel door with standard lock (double-bit key)
• Rated insulation voltage: 400 V AC
• Rated operational voltage: 230/400 V AC
• Ambient temperature: -5 to 40 °C
• Impact resistance: IK09
• Mounting: Surface-mounted
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

This universal cabinet is ideal for professional electricians and installers requiring a reliable and compliant enclosure for metering and distribution. Ensure proper cable entry preparation and follow local regulations.
