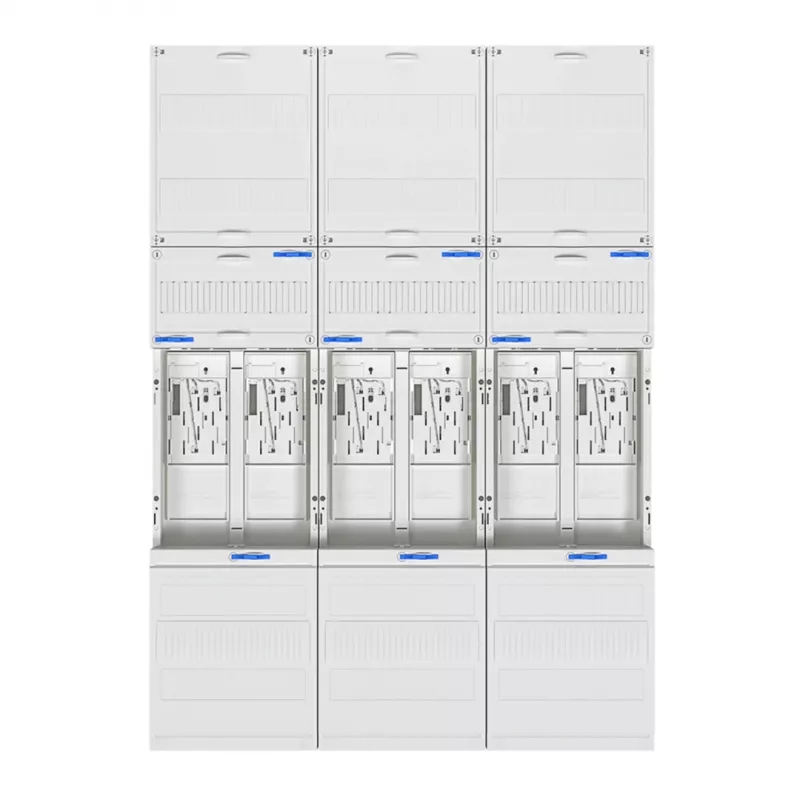

HAGER ZL3EN26 Cuadro universal de contadores 6 puntos BKE-I 3 fases 1050mm

Complete meter panel with six BKE-I meter positions for three-phase 230/400 V AC systems, integrating a 5-pole main terminal block and APZ space in a 1050 mm enclosure.

Overview

The HAGER ZL3EN26 is a universal meter panel designed for metering and distribution applications. It provides six meter positions with BKE-I mounting, ready for smart meter gateways. The panel includes a 5-pole main terminal block rated up to 63 A and an integrated APZ connection space for additional applications.

What stands out

• Six BKE-I meter positions for smart meter integration
• Integrated 5-pole main terminal block and APZ space
• Three distribution rows with 12 modules each (36 PLE total)
• Sheet steel construction with plastic components

Technical details

• Nominal voltage: 230/400 V AC
• Nominal current: up to 63 A
• Height: 1050 mm
• Width: 250 mm
• Protection class: IP2XC
• Standards: DIN VDE 0603-1, DIN 43870-1

Our verdict

A robust and future-ready meter panel for three-phase installations requiring multiple meter positions and smart meter compatibility.
