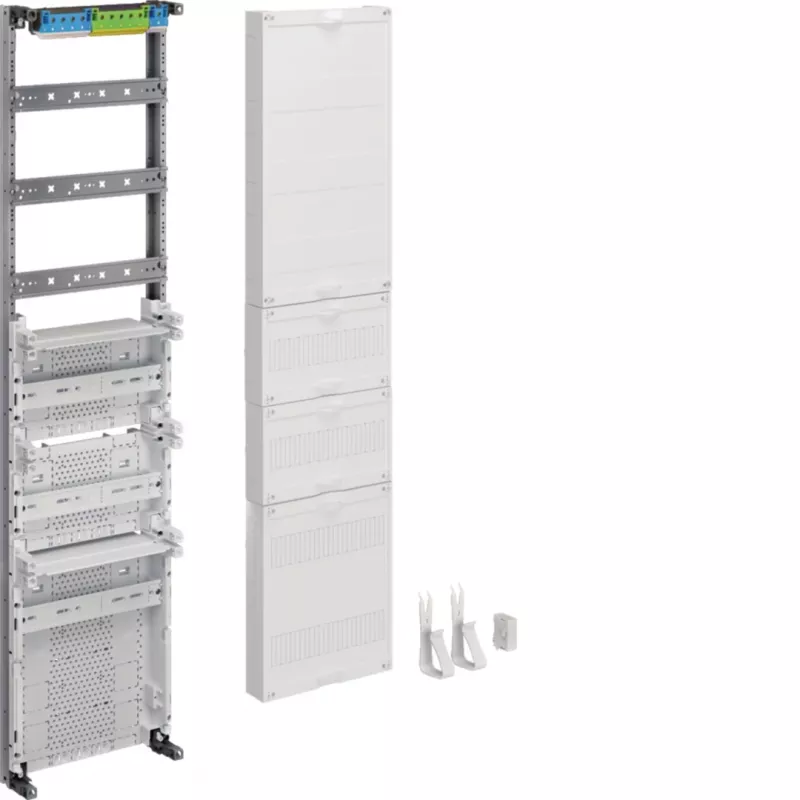

Hager ZU37VT3APZ2 cuadro de distribución universZ, 3 campos, 7 filas, emplazamiento de contador APZ2, 252 TE, barra colectora de 5 polos

Electricians and panel builders installing a metered distribution system in residential or commercial buildings will find the Hager ZU37VT3APZ2 a practical choice. This distribution field from the universZ series provides three fields, each with seven rows, and includes an APZ2 meter placement area for a utility meter. The unit is built from galvanized steel sheet and designed for flush or surface mounting in universZ distribution cabinets.

Key specifications

• Series: Hager universZ
• Number of fields: 3
• Number of rows per field: 7
• Meter placement area: APZ2
• Module units per row: 12
• Total module units: 252
• Busbar system: 5-pole
• Rated current (busbar): up to 250 A
• Rated voltage: 230/400 V AC
• Material: galvanized steel sheet
• Mounting: for universZ distribution cabinets, flush or surface
• Standards: DIN VDE 0603-1, DIN 43870-1
• Included components: main busbars, PE/N terminals, meter mounting plate, DIN rails

Why choose it

The ZU37VT3APZ2 offers a high module capacity of 252 TE, making it suitable for extensive installations. Its 5-pole busbar system supports rated currents up to 250 A, providing flexibility for various load requirements. The integrated APZ2 meter area simplifies compliance with utility metering requirements.

Ideal use cases

• Residential electrical distribution with utility metering
• Commercial building sub-distribution
• Industrial control panel installations

Good to know

The distribution field is part of the Hager universZ system, allowing combination with compatible cabinets and accessories. It is delivered with essential components such as busbars and terminals for immediate installation.
