Hager ZY3R1SI paquete de alimentación para campos de medida, 1100 mm, 1 A

Power supply equipment package for metering compartments (RfZ) with installation height 1100 mm and rated auxiliary current 1 A. This package provides a reliable auxiliary power supply within Hager Z-series universal meter cabinet systems.

Advantages

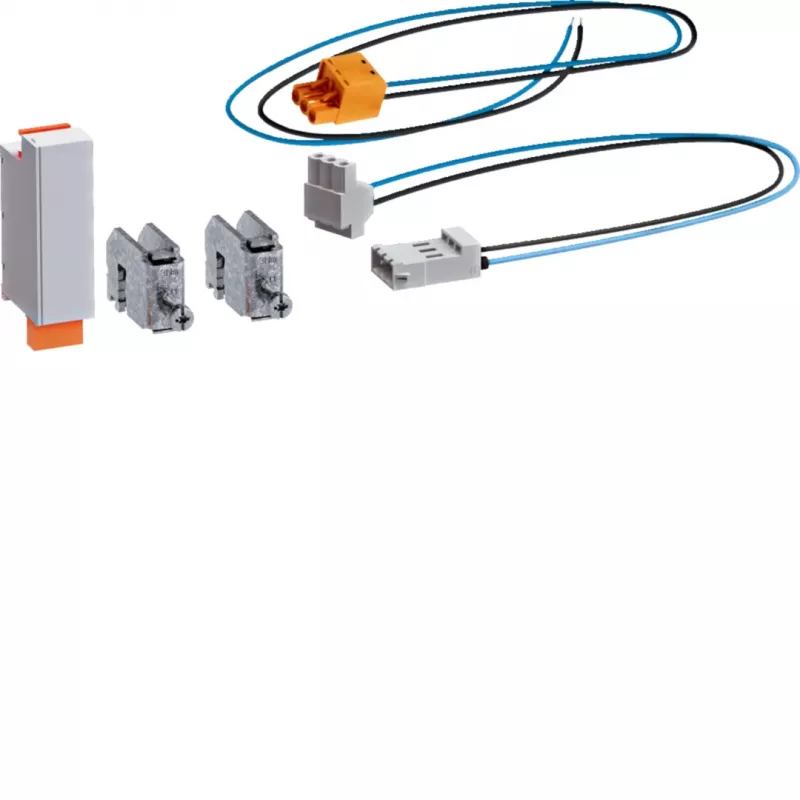

Complete package includes auxiliary power supply unit, connection terminals, mounting plate, and wiring harness. Designed for snap-on or screw mounting in residential and commercial electrical installations.

Suitable for

• Metering compartments (RfZ) in Hager Z-series universal meter cabinet systems
• Residential and commercial electrical installations requiring auxiliary power supply

Key specifications

• Rated voltage: 230/400 V AC
• Rated current (auxiliary output): 1 A
• Number of phases: 3-phase
• Installation height: 1100 mm
• Module width: 250 mm
• Depth: 120 mm
• Material: High-grade plastic (PC/ABS), metal
• Protection degree (installed): IP2XC
• Connection technology: Screw terminals
• Colour: Light grey

Recommendations

Verify compatibility with your specific meter cabinet configuration before installation.
