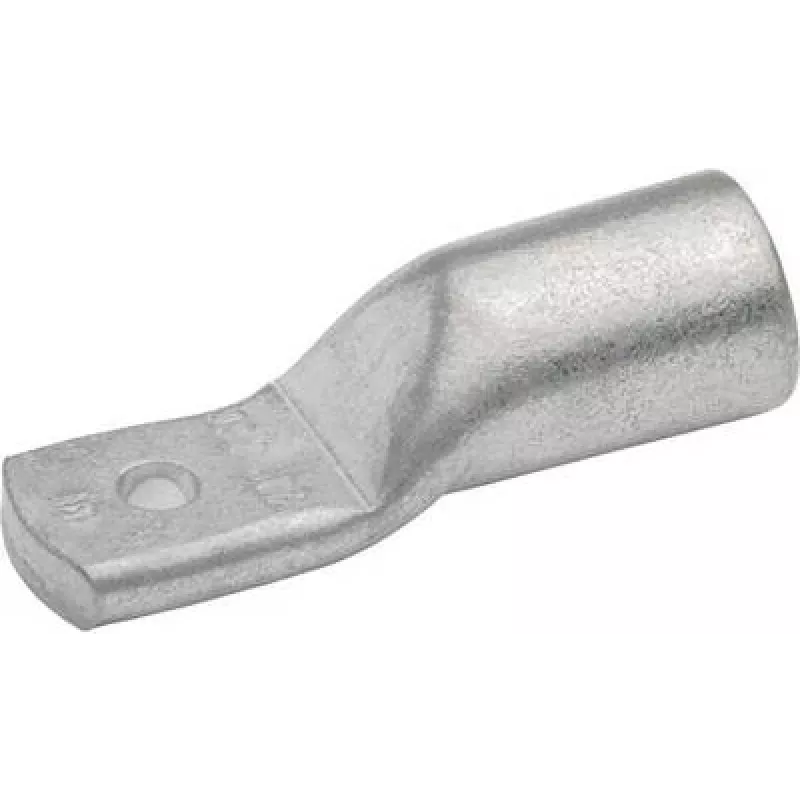

Klauke 6SG6 Terminal tubular 50 mm² M6 para cuadros eléctricos

The Klauke 6SG6 tubular cable lug is engineered for reliable, high-current connections in switchgear and industrial applications. Its 50 mm² conductor capacity and M6 bolt hole make it a direct fit for standard copper conductors, while the tinned electrolytic copper construction ensures excellent conductivity and corrosion resistance.

Highlights

• 50 mm² cable cross-section for robust power transmission
• M6 bolt hole (6.4 mm) for secure fastening
• Tinned electrolytic copper for optimal conductivity and durability
• Crimp connection method for a gas-tight, vibration-resistant joint
• Uninsulated design for use in controlled environments

In daily use

This lug is suited for fine-stranded and multi-stranded copper conductors. The crimp connection provides a permanent, low-resistance termination, essential for switchgear where reliability is critical. The tinned surface prevents oxidation, maintaining performance over time.

Full specifications

• Product type: Tubular cable lug
• Material: Electrolytic copper (E-Cu), tinned
• Cable cross-section: 50 mm²
• Bolt hole diameter: M6 (6.4 mm)
• Number of bolt holes: 1
• Connection method: Crimp
• Conductor compatibility: Fine-stranded, multi-stranded copper
• Insulation: Uninsulated
• Application: Switchgear, industrial
• Manufacturer series: Siemens 6SG6
• Standard compliance: DIN 46235
• Voltage rating: Up to 1000 V AC/DC
• Operating temperature range: -55°C to +150°C
• Colour: Metallic (silver/copper)

Final note

A dependable choice for professionals needing a secure, high-capacity connection in demanding electrical installations.
