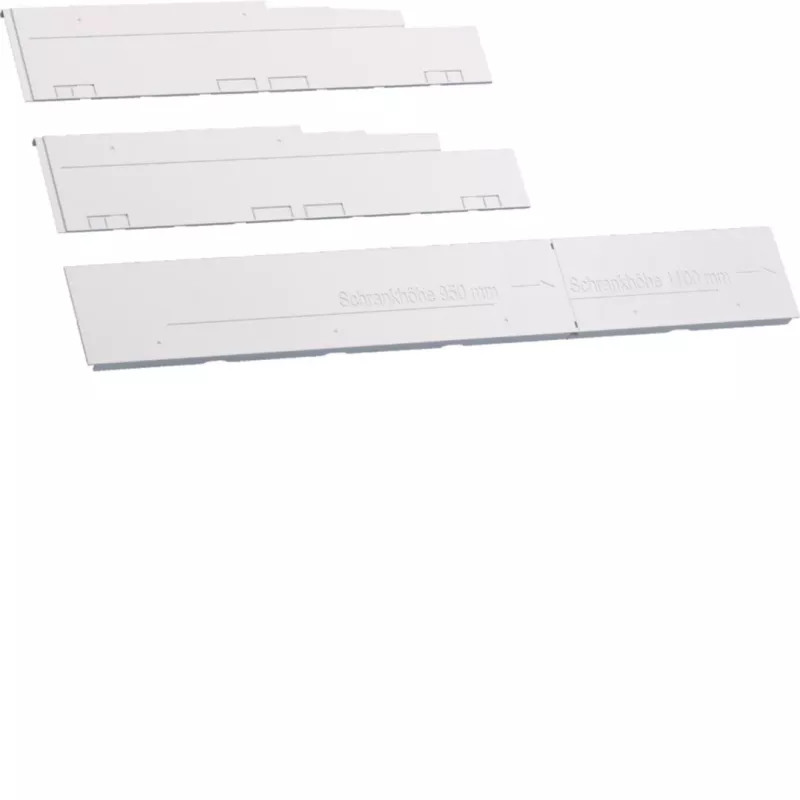

HAGER ZZ11A Separador vertical para armarios univers Z 950/1100 mm

In modular distribution boards, internal separation is critical for safety and compliance. The HAGER ZZ11A vertical partition provides compartmentalization within univers Z enclosures, isolating functional units to prevent accidental contact and improve organization.

Who is it for

Panel builders and electricians installing or upgrading HAGER univers Z distribution boards with heights of 950 mm or 1100 mm who need to create separate zones for different circuits or devices.

Main features

• Vertical mounting partition for internal separation
• Compatible with HAGER univers Z modular enclosures
• Fits enclosure heights of 950 mm and 1100 mm
• Made of galvanized steel for durability
• Screw-fixed installation

Specifications

• Product type: Vertical Partition
• System compatibility: HAGER univers Z
• Application: Modular enclosures, distribution boards
• Function: Internal compartmentalization, separation of functional units
• Mounting position: Vertical
• Compatible enclosure height: 950 mm, 1100 mm
• Material: Galvanized steel
• Colour: Metallic (galvanized)
• Height: 950 mm
• Width: 250 mm
• Depth: 1 mm

Tips

Verify the exact enclosure height before ordering. This partition is designed for univers Z enclosures with a vertical mounting orientation and requires screw fixing.
