Hanwha XRN-1620SB1 Grabador de vídeo en red de 16 canales 3840x2160

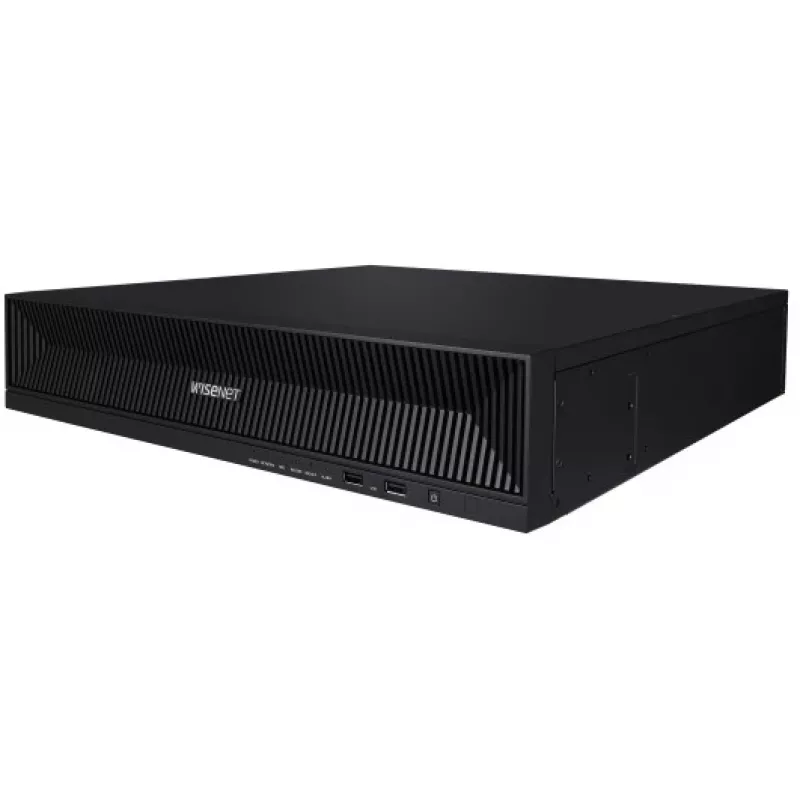

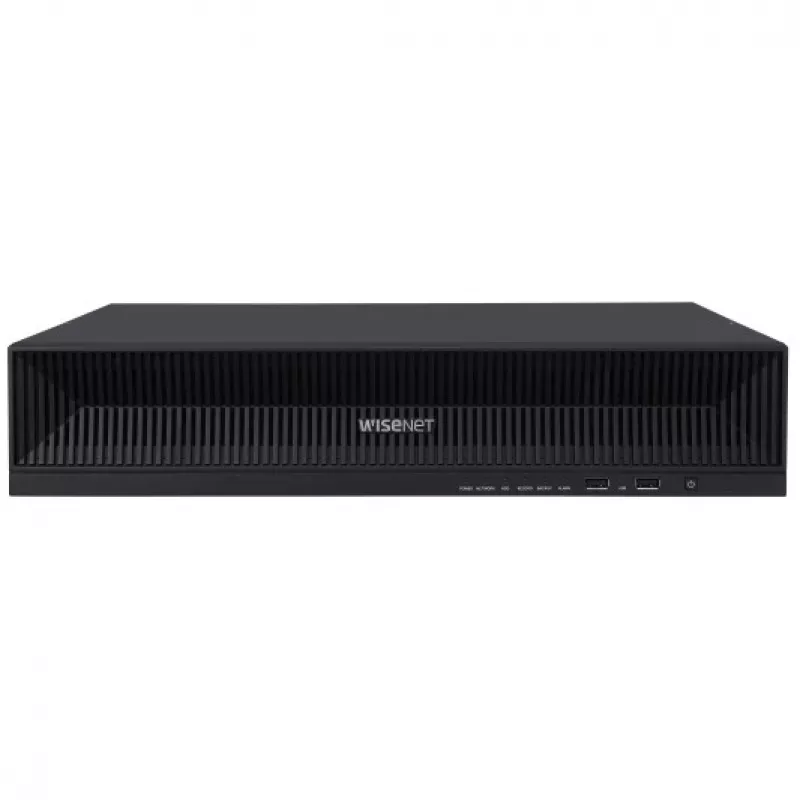

The Hanwha XRN-1620SB1 16 Channels 3840x2160 is a network video recorder designed for multi-camera surveillance systems where high-resolution recording and reliable network connectivity are required. It supports up to 16 channels with recording resolution up to 3840 x 2160 pixels and is built to work in environments that require significant local storage and modern network protocol support. The device is supplied in a black enclosure and includes multiple Ethernet LAN ports and USB interfaces to integrate with cameras and external devices.

Advantages

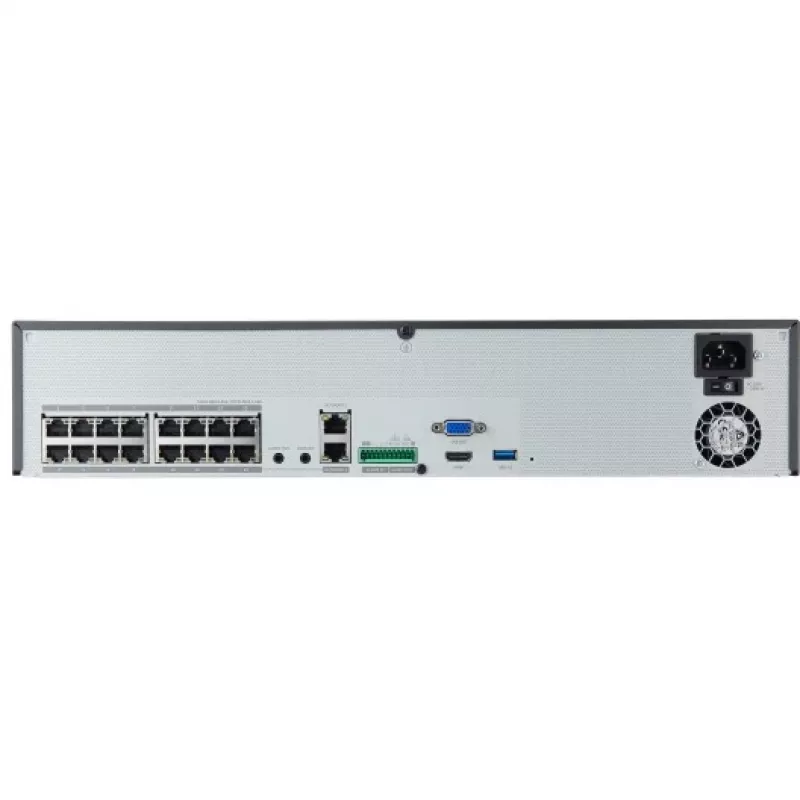

The recorder provides 16-channel simultaneous support and 4K (3840x2160) recording capability for detailed video capture. It includes a high number of Ethernet LAN ports to simplify camera and network device connections and USB ports for direct file transfer or peripheral connectivity. The unit accepts SATA, SATA II and SATA III hard drives, enabling flexible storage configurations up to the system’s maximum capacity. With an AC input voltage range of 100–240 V and defined power consumption, it is compatible with a wide range of power environments.

Suitable for

Key specifications

How to use

Install compatible SATA hard drives into the unit following the manufacturer’s drive bay instructions, then connect network cameras to the Ethernet LAN ports or through a managed switch. Configure IP settings and network protocols such as IPv4 or IPv6 on the recorder’s network menu to match your site infrastructure. Use the USB ports for initial firmware updates, exporting recorded footage, or connecting a mouse and other peripherals. Adjust camera channels, recording schedules and retention settings through the recorder’s user interface to meet monitoring and storage requirements.

Recommendations

For reliable long-term operation, use surveillance-grade SATA drives and implement routine checks on drive health and available storage. Ensure the recorder’s network settings and firmware are kept up to date, and configure regular backup or export procedures for critical footage. Position the unit in a well-ventilated, dust-free environment and provide a stable AC power source within the specified 100–240 V range.
