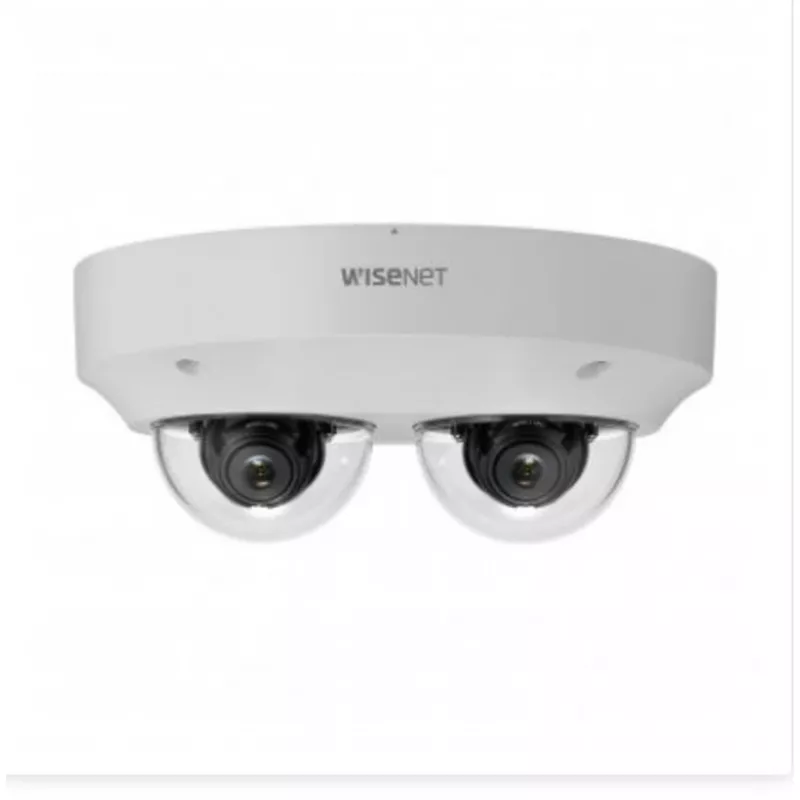

HANWHA VISION PNM-C7083RVD Cámara domo IP multidireccional IR, 2x 2MP, 3-6mm, WDR 150dB, IP66, IK10, PoE+

The HANWHA VISION PNM-C7083RVD is a high-performance multi-directional network dome camera designed for comprehensive surveillance coverage. Featuring two independent 2MP channels with motorized varifocal lenses (3-6mm), this camera delivers crisp 1920x1080 resolution per channel. With advanced 150dB Wide Dynamic Range, it excels in challenging lighting conditions, while the integrated IR LEDs provide up to 15m night vision. The rugged IP66 and IK10 ratings ensure reliable outdoor operation in harsh environments.

Advantages

Dual-channel design allows a single camera to cover two distinct areas, reducing installation costs. The motorized varifocal lenses enable remote adjustment of field of view. 150dB WDR ensures clear images in high-contrast scenes. IP66 weatherproof and IK10 vandal-resistant housing guarantees durability. PoE+ simplifies cabling with power and data over one cable.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Parking lots and perimeter surveillance
• Warehouses and logistics centers
• Educational institutions and hospitals

Key specifications

• Camera Type: Multi-directional Network Dome
• Number of Channels: 2
• Sensor Resolution: 2 Megapixel (1920x1080) per channel
• Lens: Motorized Varifocal, 3 ~ 6mm
• IR Range: Up to 15m (49.21 ft)
• Wide Dynamic Range: 150dB
• Video Compression: H.265, H.264, MJPEG
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Power Source: PoE+ (IEEE 802.3at)
• Power Consumption: Max 12.95W
• Storage: 2x MicroSD/SDHC/SDXC slots (Max. 512GB total)
• Analytics: Motion detection, Tampering, Defocus, Virtual line, Enter/Exit, Loitering, Audio detection, Shock detection
• Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
• Day/Night: Auto (ICR)
• Ethernet: 10/100BASE-T RJ-45
• Audio: Bi-directional (Mic In / Line Out)

Recommendations

For optimal performance, use a PoE+ switch or injector. The camera supports H.265 compression to reduce bandwidth and storage. Ensure MicroSD cards are rated for continuous recording. For outdoor installations, verify proper sealing of cable connections.
