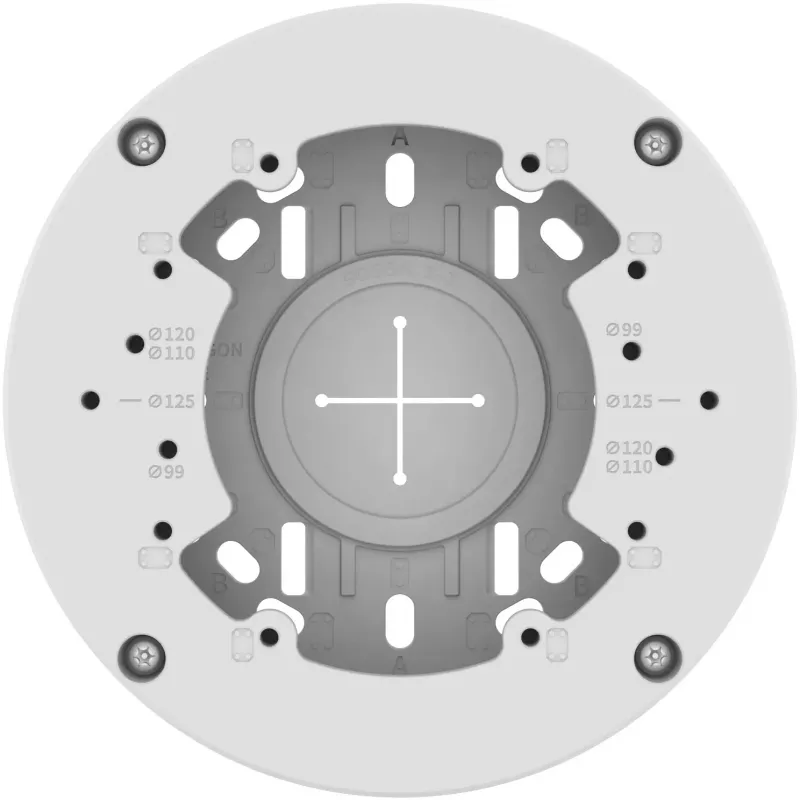

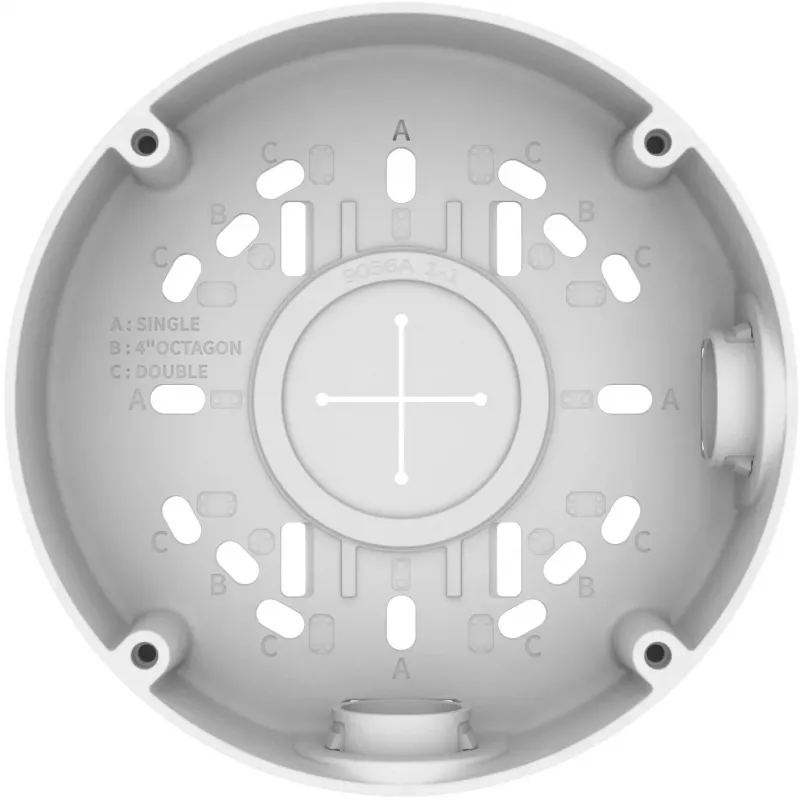

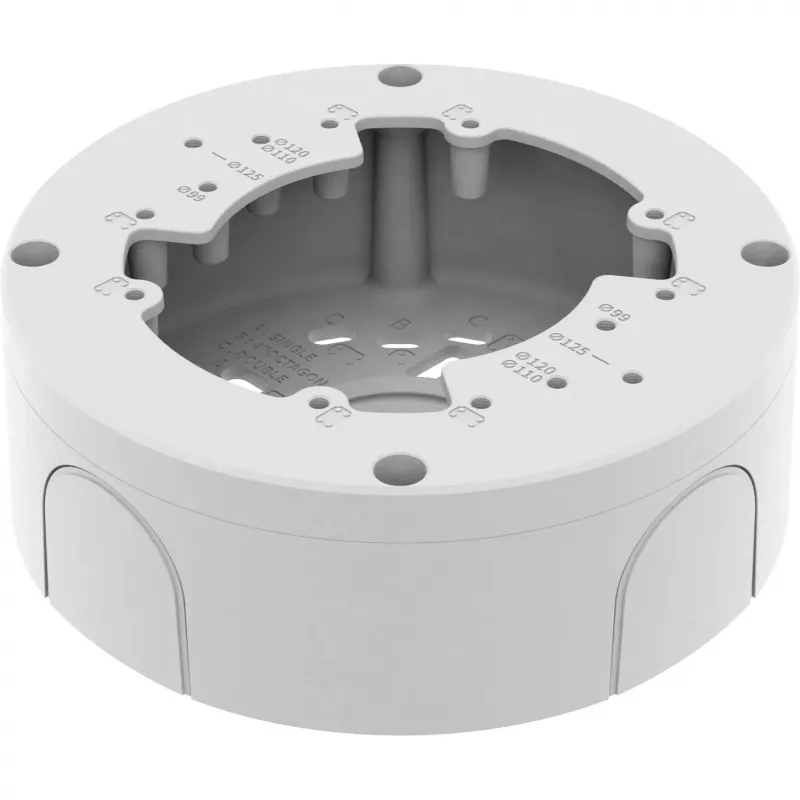

Hanwha Vision SBV-140BW Caja de conexiones - Aluminio - Blanco - para QNV-C8083R/C9083R, QND-7012R/22R/82R, QNE-8011R

The Hanwha Vision SBV-140BW is a high-quality connection box designed for secure and tidy cable management in surveillance camera installations. Crafted from durable die-cast aluminum with a white powder-coated finish, this junction box provides reliable protection for cable connections and terminations, ensuring a clean professional look. It is compatible with select Hanwha Vision Q series cameras including QNV-C8083R, QNV-C9083R, QND-7012R, QND-7022R, QND-7082R, and QNE-8011R.

Advantages

Robust aluminum construction with IP66 rating ensures weather resistance for both indoor and outdoor use. The compact design conceals cables and connectors, enhancing installation aesthetics. Easy wall or ceiling mounting simplifies setup.

Suitable for

• Hanwha Vision QNV-C8083R cameras
• Hanwha Vision QNV-C9083R cameras
• Hanwha Vision QND-7012R cameras
• Hanwha Vision QND-7022R cameras
• Hanwha Vision QND-7082R cameras
• Hanwha Vision QNE-8011R cameras
• Other compatible Q series cameras

Key specifications

• Product Type: Junction Box / Connection Box
• Material: Aluminum (die-cast)
• Color: White
• Mounting Type: Wall / Ceiling
• Ingress Protection: IP66
• Operating Temperature: -50°C to +60°C (-58°F to +140°F)
• Operating Humidity: 0% ~ 90% RH (non-condensing)
• Diameter: 100 mm
• Height: 30 mm
• Weight: 450 g
• Package Quantity: 1 piece

Recommendations

For optimal performance and weather sealing, ensure proper cable entry and use appropriate gaskets. This connection box is an essential accessory for a professional and reliable surveillance system installation.
