HARTING Han® 3 A Carcasa de Montaje, Aluminio Fundido a Presión, Gris Polvo, Bloqueo de Palanca Individual, Entrada de Cable M20, IP65/IP67

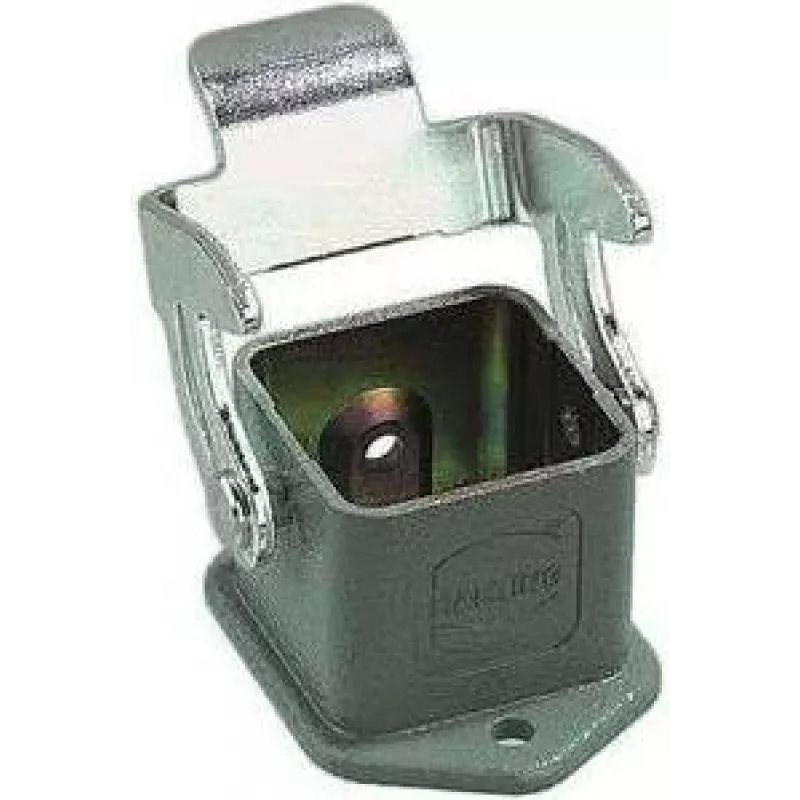

The HARTING Han® 3 A surface mount housing (09200030301) is a robust industrial connector housing designed for demanding environments. Manufactured from die-cast aluminium with a dust grey (RAL 7037) finish, it offers excellent durability and corrosion resistance. The housing features a single lever locking mechanism (Han-Easy Lock®) for quick and secure mating, and is rated IP65/IP67 when mated, providing protection against dust and water ingress.

Advantages

This housing provides reliable protection for Han® 3 A inserts, ensuring secure connections in industrial applications. The low construction design and lateral gland position allow for space-saving installation. With a wide operating temperature range of -40 °C to +125 °C and compliance with RoHS and REACH, it meets stringent environmental and safety standards.

Suitable for

• Industrial automation and control systems
• Machine building and robotics
• Power distribution and transmission
• Railway and transportation applications

Key specifications

• Housing Type: Surface Mounting Housing
• Series: Han® 3 A
• Material: Die-cast Aluminium
• Colour: Dust Grey (RAL 7037)
• Locking Type: Single Lever (Han-Easy Lock®)
• Cable Entry Thread Size: M20
• Number of Cable Entries: 1
• Protection Degree: IP65 / IP67 (when mated)
• Operating Temperature: -40 °C to +125 °C
• Mounting Type: Surface Mount
• Compatibility: Han® 3 A Inserts
• Flammability Rating: UL 94 V-0
• Construction Type: Low Construction
• Gland Position: Lateral

Recommendations

For a complete connector solution, pair this housing with appropriate Han® 3 A inserts and contacts. Ensure proper cable gland selection for M20 entries to maintain IP rating.
