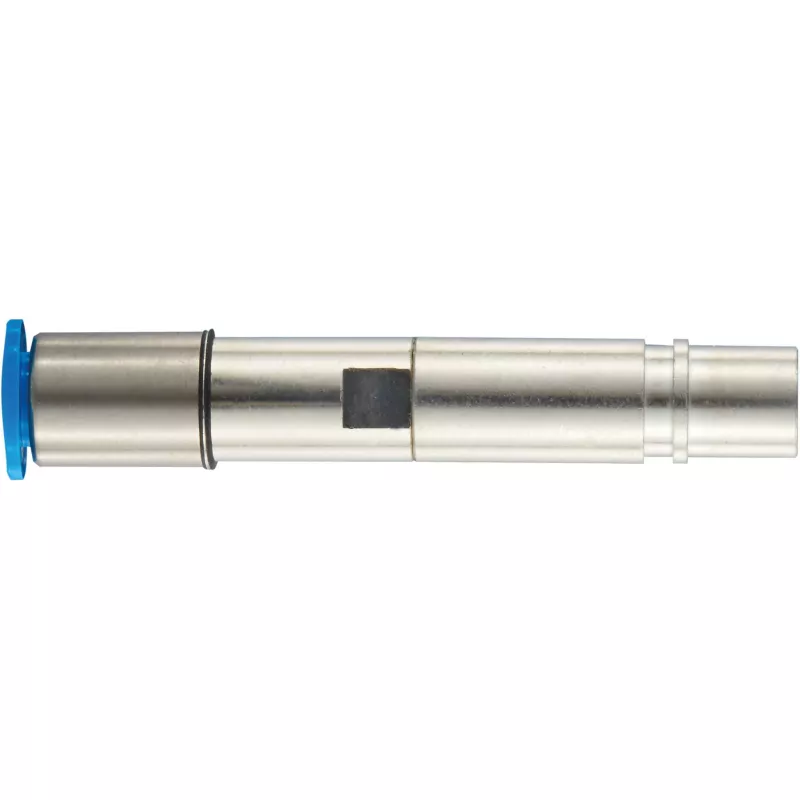

Harting Han-Pneumatic contacto hembra, latón, niquelado, 6 mm de diámetro exterior, con válvula 09140006466

In automated assembly lines and industrial machinery, pneumatic systems rely on dependable connections to maintain uninterrupted airflow. The Harting Han-Pneumatic female contact with integrated valve ensures secure and efficient coupling for compressed air lines. Designed for crimp termination, this contact accommodates pneumatic hoses with a 6 mm outer diameter, making it a precise fit for standard industrial tubing.

Key specifications

• Product type: Pneumatic contact
• Contact gender: Female (socket)
• Outer diameter: 6 mm
• Material: Brass, nickel-plated
• Features: With valve
• Connection type: Crimp
• Operating medium: Compressed air, non-aggressive gases
• Operating pressure: Max. 10 bar (1 MPa)
• Temperature range: -40 °C to +85 °C
• Mating cycles: ≥ 500
• Hose connection: For pneumatic hose with 6 mm outer diameter
• Series: Han-Pneumatic
• Insulator material (valve/bushing): POM (Polyoxymethylene)
• Application: Industrial connectors, automation

Why choose it

The brass body with nickel plating offers excellent corrosion resistance, ensuring longevity even in demanding industrial environments. The integrated valve prevents air leakage when disconnected, enhancing system safety and efficiency. With a high mating cycle rating, this contact is built for repeated connections in dynamic applications.

Ideal use cases

• Pneumatic control systems in factory automation
• Robotic workcells requiring reliable air supply
• Packaging machinery with frequent tool changes
• Test benches for pneumatic components

Good to know

This contact is part of the Harting Han-Pneumatic modular connector system, allowing integration with other electrical and pneumatic modules in a single housing. It is intended for use with non-aggressive gases and should be installed according to the manufacturer's guidelines for optimal performance.
