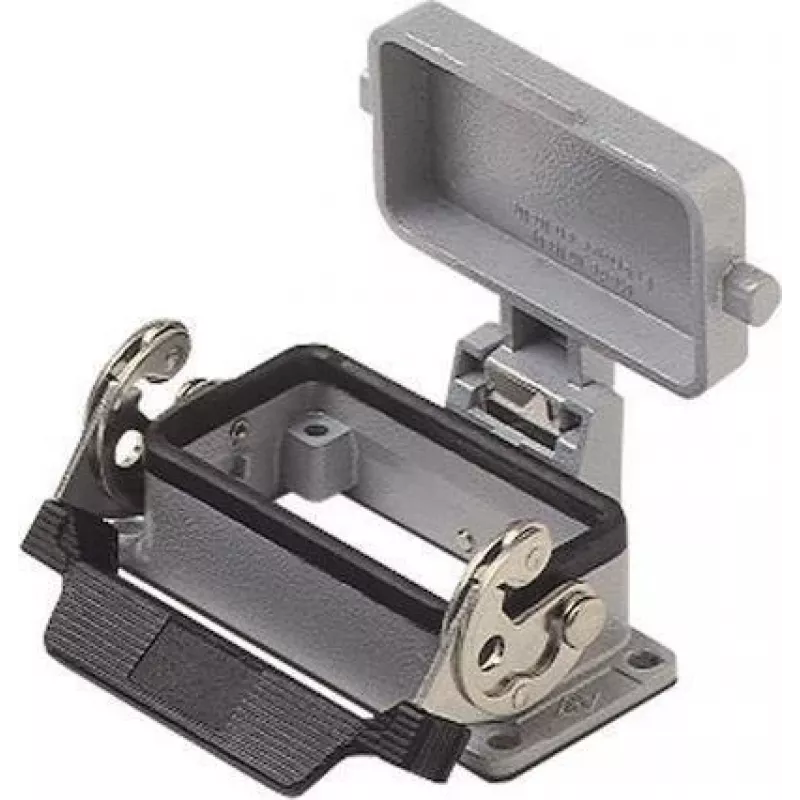

ILME CHI16LS Carcasa de montaje en superficie, tamaño 77.27, aluminio fundido a presión, Gris, palanca única, IP65, M25

Surface mounting housing from the ILME CHI series, size 77.27 for 16A inserts. The housing body is made of aluminium die-cast with a powder-coated grey finish (RAL 7040) and a galvanized steel single lever locking system. It provides IP65 protection and one M25 cable entry on the side.

Advantages

Robust aluminium die-cast construction ensures durability in industrial environments. The single lever locking system allows quick and secure closure. IP65 rating protects against dust and water jets. Wide operating temperature range from -40°C to +125°C. NBR gasket provides reliable sealing.

Suitable for

• Industrial connector applications
• Panel or surface mounting
• ILME 16A inserts

Key specifications

• Series: CHI
• Size: 77.27 (16A)
• Material: Aluminium die-cast
• Colour: Grey (RAL 7040)
• Locking system: Single lever
• Lever material: Galvanized steel
• Protection rating: IP65
• Temperature range: -40°C to +125°C
• Cable entry thread: M25
• Number of cable entries: 1
• Gasket material: NBR
• Surface treatment: Powder coated
• Compatibility: ILME 16A inserts
• Mounting type: Panel / surface mount
• Orientation: Side entry

Recommendations

Pair with ILME 16A inserts and appropriate M25 cable glands for a complete industrial connection solution.
