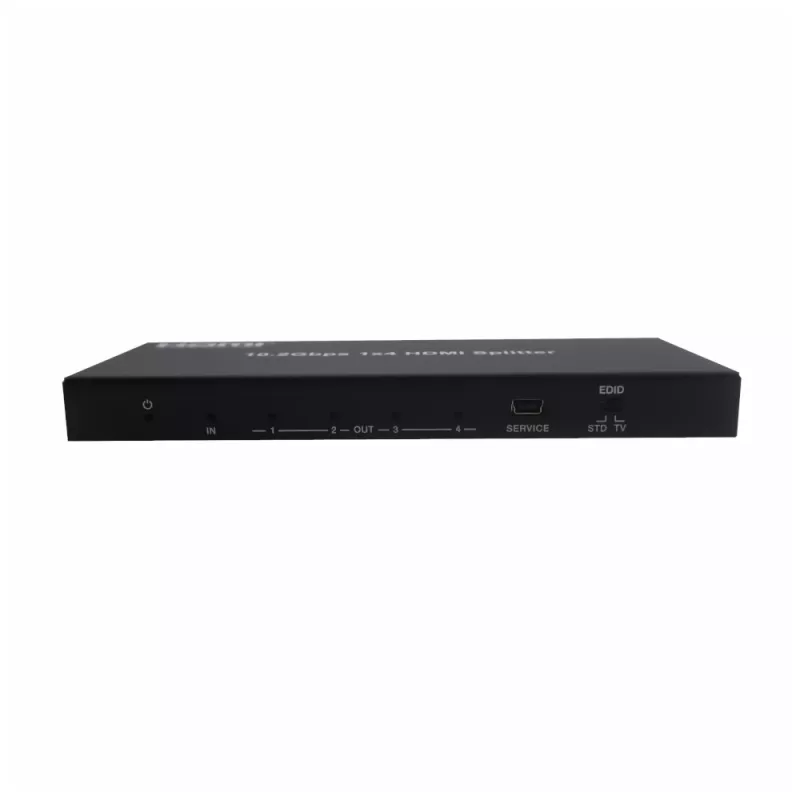

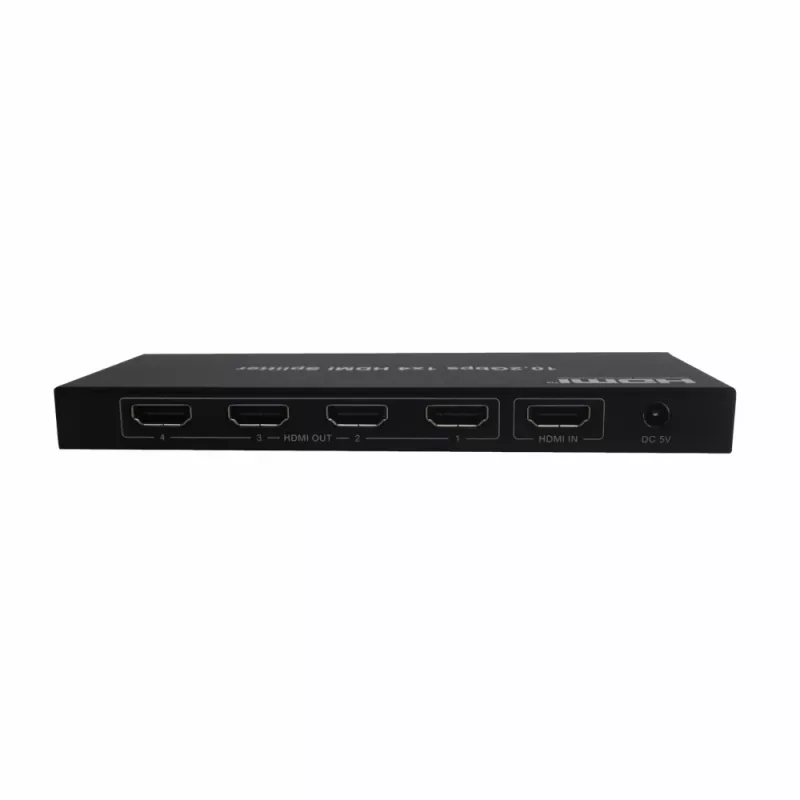

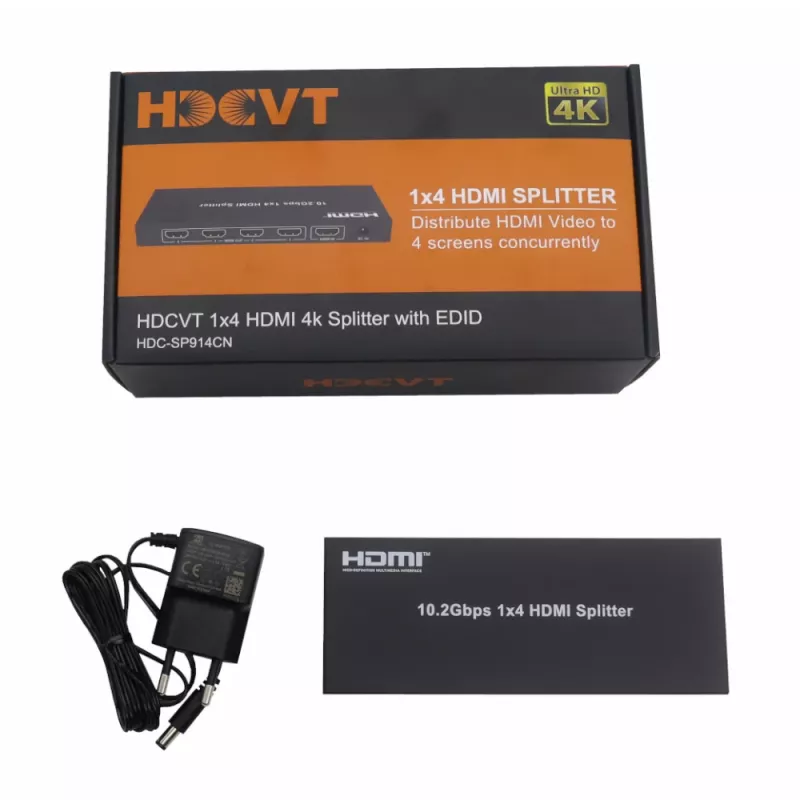

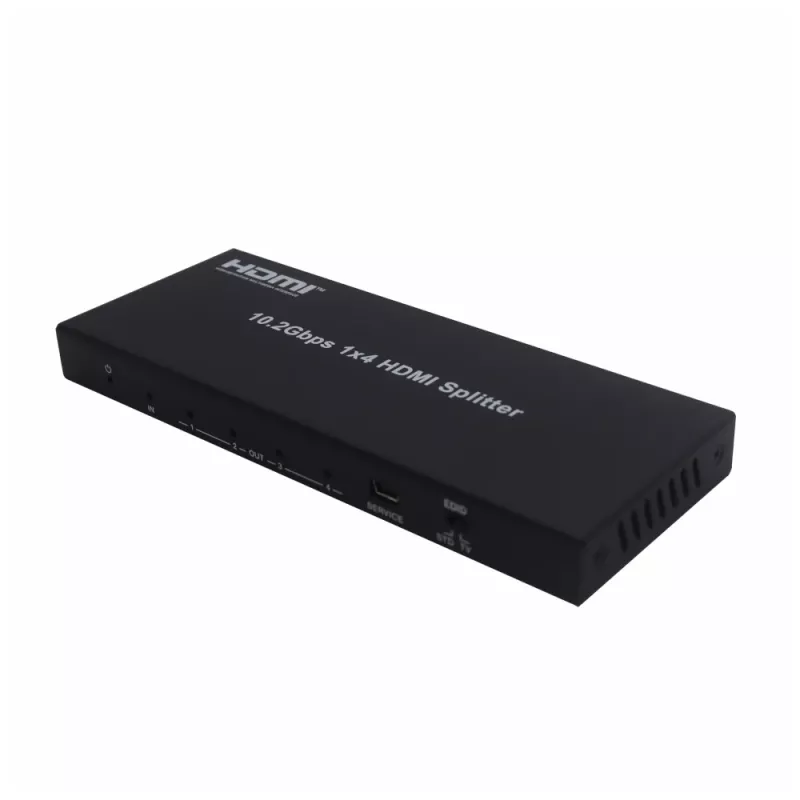

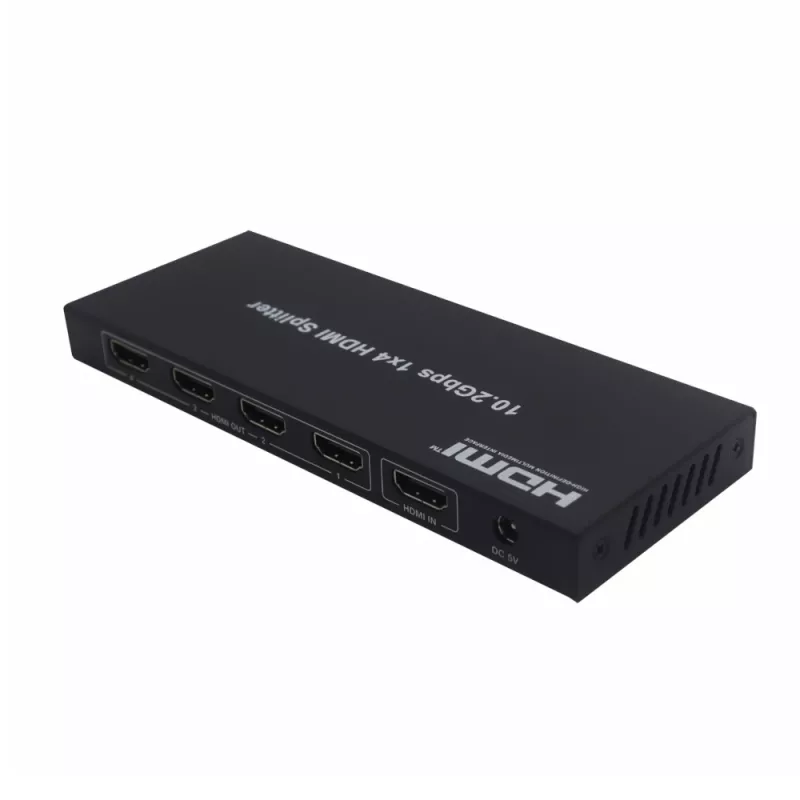

HDCVT HDC-SP914CN Splitter HDMI 1.4 1x4 4K con gestión EDID

Distribute one HDMI source to four displays without signal degradation using the HDCVT HDC-SP914CN. Unlike basic splitters that struggle with EDID conflicts, this unit features selectable EDID management (Copy, Auto, Fixed), ensuring every connected screen receives a compatible signal. It supports 4K at 30Hz and 1080p at 120Hz, making it ideal for digital signage, conference rooms, and home theater setups where reliability is critical.

Highlights

• 1x4 HDMI 1.4b splitter with HDCP 1.4 compliance
• Supports resolutions up to 4K (3840x2160) @ 30Hz and 1080p @ 120Hz
• EDID management with Copy, Auto, and Fixed modes for stable signal handshakes
• 10.2 Gbps bandwidth with Deep Color (8/10/12-bit) and 3D support
• Premium audio pass-through: DTS-HD, Dolby TrueHD, LPCM 7.1, DSD, and more
• Durable aluminum alloy housing with ESD protection (±8kV air, ±4kV contact)
• Cascadable design for larger distribution systems
• External DC 5V/1A power adapter included

In daily use

The HDC-SP914CN handles long cable runs effortlessly—up to 15 meters on the input and 20 meters on each output using standard AWG26 HDMI cables. LED indicators for power, input, and output status provide at-a-glance troubleshooting. The metal casing dissipates heat efficiently, allowing continuous operation in temperatures from 0°C to 70°C. Whether you're driving a video wall or multiple monitors in a classroom, this splitter maintains signal integrity with minimal latency.

Full specifications

• Input: 1 x HDMI Type A Female
• Output: 4 x HDMI Type A Female
• HDMI Version: 1.4b
• HDCP Version: 1.4
• Max Resolution: 4K (3840x2160) @ 30Hz, 1080p @ 120Hz
• Max Bandwidth: 10.2 Gbps
• Color Depth: 8/10/12-bit Deep Color
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, DSD, HD(HBR)
• EDID Modes: Copy, Auto, Fixed
• 3D Support: Yes
• Power Supply: DC 5V/1A (external adapter included)
• Max Input Cable Length: 15m (AWG26 HDMI)
• Max Output Cable Length: 20m (AWG26 HDMI)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Housing: Aluminum alloy
• LED Indicators: Power, Input, Output Status
• Cascadable: Yes
• ESD Protection: ±8kV (air-gap), ±4kV (contact)
• Power Consumption: < 3.5W
• Compliance: CE, FCC, RoHS

Final note

Built for professional AV environments, the HDCVT HDC-SP914CN combines robust construction with precise EDID control, making it a dependable choice for any multi-display installation.
