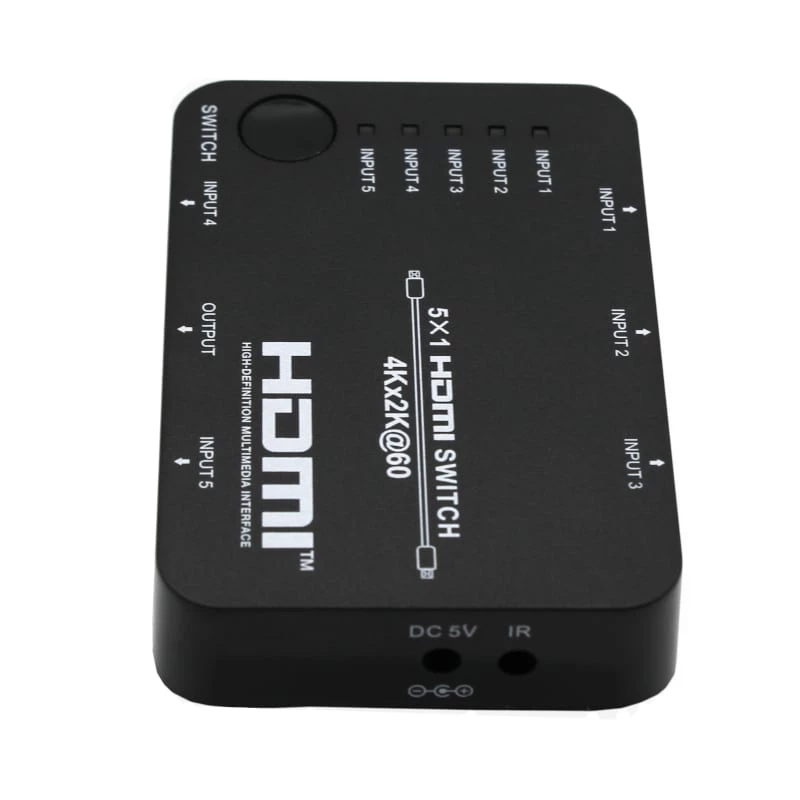

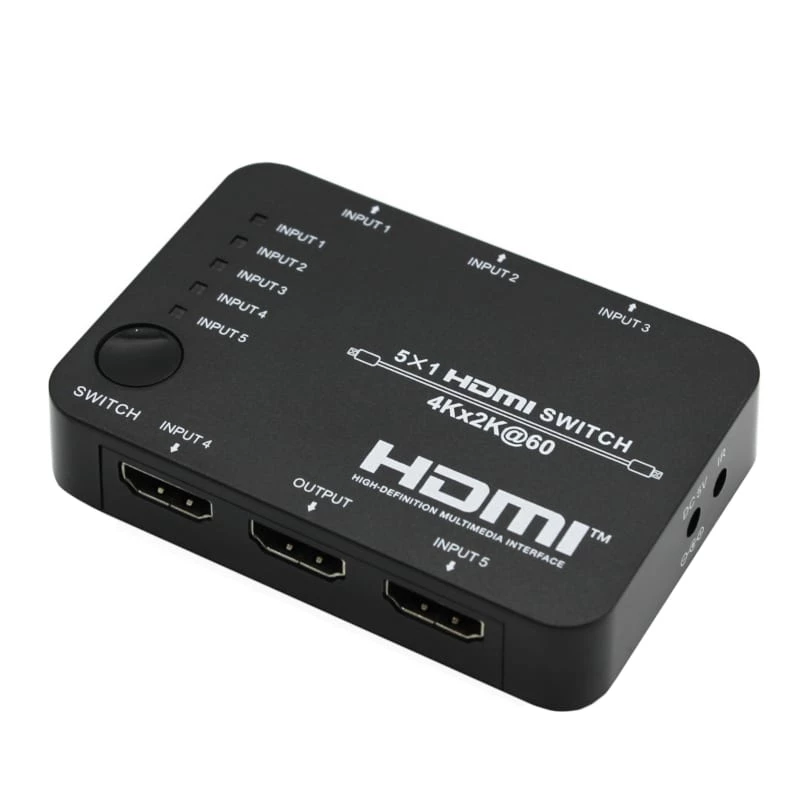

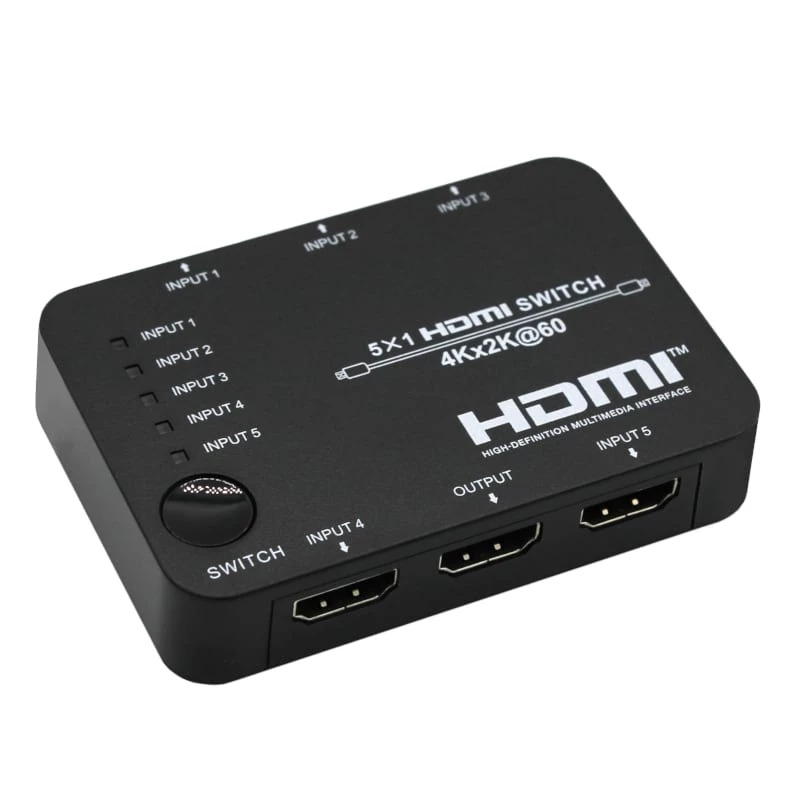

HDCVT HDS-B51 Switch HDMI 2.0 5x1 4K@60Hz HDR10 Dolby Vision HDCP 2.2 18Gbps con mando a distancia IR

Most HDMI switches cut corners on bandwidth, but the HDCVT HDS-B51 keeps the full 18Gbps pipeline intact across all five inputs. That means no dropped frames, no colour compression, and no HDCP handshake failures when you connect a mix of 4K sources and displays. Built around a rugged aluminium chassis, this switch is engineered for real-world AV setups where signal integrity matters.

Highlights

• Five HDMI 2.0 inputs to one output, all supporting 18Gbps bandwidth
• 4K@60Hz (3840x2160) with 4:4:4 colour subsampling
• HDR10, Dolby Vision, and HLG passthrough for stunning contrast and colour
• HDCP 2.2 and 1.4 compliant, works with all modern and legacy sources
• IR remote and front-panel button for instant source switching
• Supports LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and more
• Aluminium alloy housing for durability and efficient heat dissipation
• Includes DC 5V/1A power adapter

In daily use

Connect up to five HDMI sources—game consoles, media players, set-top boxes, or PCs—and route them to a single display or projector. The front-panel button gives immediate tactile control, while the included IR remote lets you switch from across the room. The switch handles long cable runs: up to 5 meters on both input and output for 4K@60Hz, and up to 10 meters for 1080p, making it suitable for living rooms, conference rooms, and classrooms. LED indicators show the active input at a glance.

Full specifications

• HDMI Standard: HDMI 2.0
• Max Resolution: 4K@60Hz (3840x2160)
• HDCP Compliance: HDCP 2.2 / 1.4
• HDR Support: HDR10, Dolby Vision, HLG
• Video Bandwidth: 18 Gbps
• Input Ports: 5 x HDMI Type A Female
• Output Ports: 1 x HDMI Type A Female
• Audio Formats: LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• Control Method: IR Remote Control, Front Panel Button
• Power Supply: DC 5V/1A (adapter included)
• Housing Material: Metal (Aluminium Alloy)
• CEC Support: Yes
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Max Input Cable Length: 5m (16.4ft) for 4K@60Hz, 10m (32.8ft) for 1080p
• Max Output Cable Length: 5m (16.4ft) for 4K@60Hz, 10m (32.8ft) for 1080p
• ESD Protection: Human-body model ±8kV (air-gap discharge), ±4kV (contact discharge)

Final note

The HDCVT HDS-B51 is a no-compromise HDMI switch for demanding 4K HDR setups, delivering full 18Gbps bandwidth, robust HDCP 2.2 compliance, and reliable switching in a durable metal housing.
