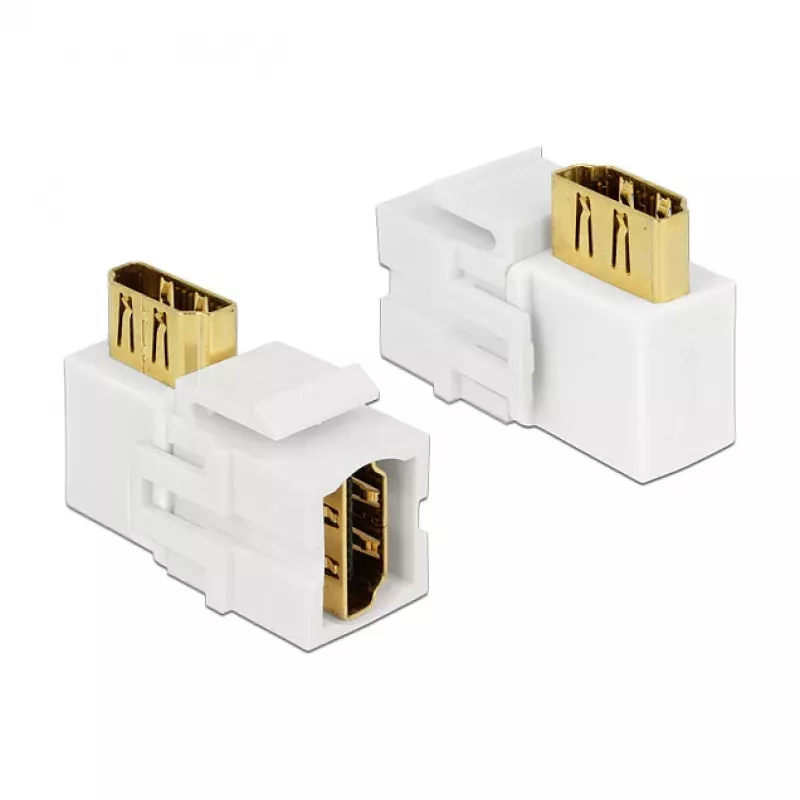

HDMI - HDMI 90° DeLOCK 86359

The DeLOCK HDMI to HDMI 90° adapter provides a compact, space-saving solution for connecting HDMI cables and devices in tight installations. With standardised dimensions and a right-angle design, the adapter is suitable for snap-in mounting in Keystone patch panels, face plates or surface-mount boxes and helps route HDMI connections neatly in confined spaces.

Advantages

The adapter features two standard HDMI connectors, a 90° angled body to reduce cable protrusion, and compact dimensions (25.3 mm width × 35.8 mm depth × 16.8 mm height). Its standardised format allows easy snap-in mounting and the white colour matches light-coloured panels and faceplates.

Suitable for

• Extending or redirecting an HDMI connection in tight spaces
• Installation in Keystone patch panels
• Mounting in face plates and surface-mount boxes

Key specifications

• Brand: DELOCK
• Model / MPN: 86359
• EAN: 4043619863594
• Connector 1: HDMI
• Connector 2: HDMI
• Orientation: 90° right-angle
• Dimensions (W × D × H): 25.3 × 35.8 × 16.8 mm
• Product colour: White
• Category: Cable interface and gender adapters

How to use

Insert the adapter into the appropriate keystone opening of a patch panel, face plate or surface-mount box until it snaps into place. Connect an HDMI cable to each HDMI connector — one to the source device and the other to the display or downstream cable. Ensure the angled orientation aligns with the available clearance to prevent strain on the cable or connector.

Recommendations

For reliable connections, use standard-compliant HDMI cables and avoid excessive bending near the adapter. Verify the orientation before mounting to ensure sufficient space for the angled connector and prevent mechanical stress on the HDMI ports.
