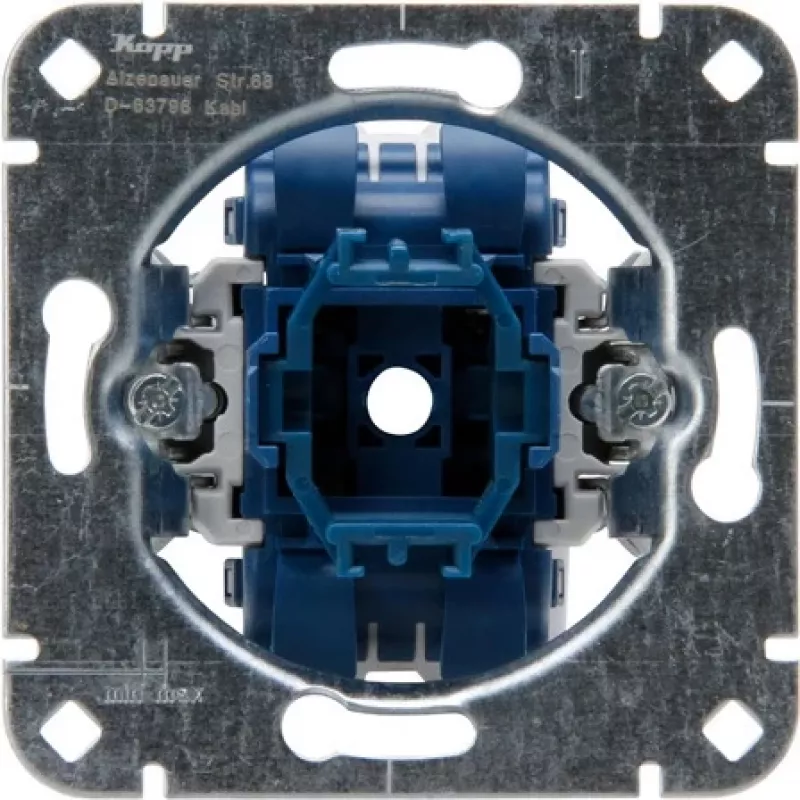

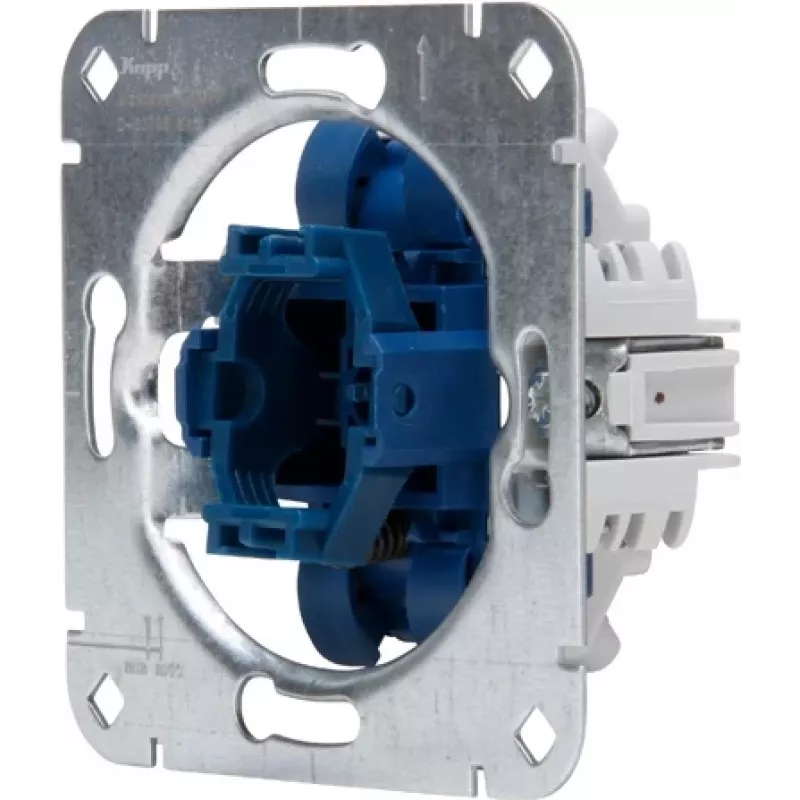

HEINRICH KOPP 508400005 Mecanismo pulsador empotrable, contacto conmutado, 250V, 10AX, IP20, aluminio

This flush-mounted push-button switch insert from HEINRICH KOPP provides a reliable momentary changeover contact for controlling lighting or other electrical circuits. Its aluminium finish suits modern interiors.

Advantages

The insert features a robust thermoplastic housing and screw terminals for secure wiring. With a rated current of 10AX at 250V AC, it handles a wide range of loads, including fluorescent and LED lighting.

Suitable for

• Indoor flush-mounted installations
• Momentary switching applications
• Use with compatible push-button covers from the KOPP Paris series

Key specifications

• Contact configuration: changeover (SPDT)
• Rated voltage: 250 V AC
• Rated current: 10 AX
• IP protection class: IP20
• Mounting type: flush-mounted
• Housing material: thermoplastic
• Colour: aluminium
• Connection type: screw terminals
• Installation depth: 32 mm
• Front plate dimensions: 71 x 71 mm

Recommendations

For a complete installation, pair this insert with a compatible push-button cover plate from the KOPP Paris series.
