HEINRICH KOPP Nautic Interruptor unipolar de superficie, IP44, gris, 10A 250V AC 565296007

Rated at 10 A and 250 V AC, this single-pole switch handles demanding circuits in damp and dusty environments. The Nautic series is built for surface mounting with an IP44 rating, making it suitable for outdoor areas, workshops, cellars, and other wet locations.

Overview

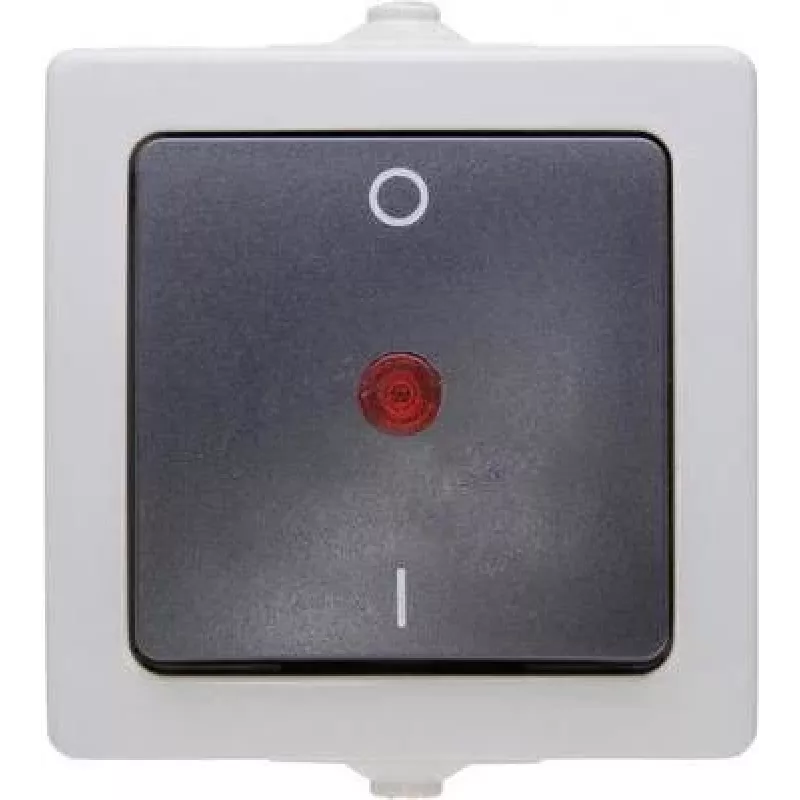

The HEINRICH KOPP Nautic switch (model 565296007) is a surface-mounted single-pole switch in grey. It features screw terminals for secure wiring and a thermoplastic housing that is halogen-free and UV-resistant. The switch is designed for reliable operation in temperatures from -25°C to +40°C.

What stands out

• IP44 ingress protection against splashing water and solid objects
• Halogen-free and UV-resistant thermoplastic construction
• Single-pole switching for simple on/off control
• Screw terminals accept conductors up to 2.5 mm²

Technical details

• Rated voltage: 250 V AC
• Rated current: 10 A
• Mounting type: Surface-mounted
• Connection type: Screw terminals
• Material: Thermoplastic
• Series: Nautic
• Number of rockers/buttons: 1
• Operating temperature range: -25°C to +40°C

Our verdict

A robust and weather-resistant switch for challenging environments, offering straightforward installation and dependable performance.
