Heinrich Kopp Toma de antena terminal empotrar Blanco 2 salidas TV/FM

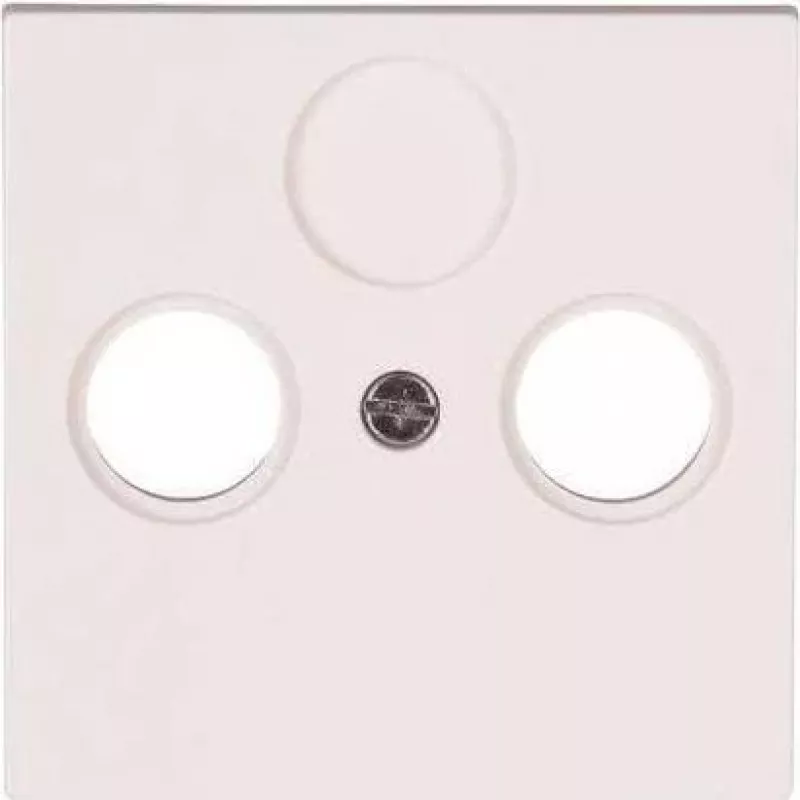

The Heinrich Kopp 490929005 is a high-quality antenna socket designed for reliable signal distribution in single cable systems and star networks. This flush-mounted end socket features two outputs: one IEC male connector for TV and one IEC female connector for FM/Radio, ensuring excellent reception for both television and radio frequencies. With a sleek white finish, it blends seamlessly into any interior.

Advantages

This antenna socket offers low attenuation (1.5 dB for both TV and FM), high shielding factor (>75 dB), and return loss >10 dB, guaranteeing minimal signal loss and interference. The 75 Ohm impedance ensures compatibility with standard coaxial systems. Easy installation via screw terminals and compatibility with standard flush-mounted boxes make it a practical choice for professionals.

Suitable for

• Single cable systems
• Star networks
• Residential and commercial TV/FM installations

Key specifications

• Product Type: Antenna Socket
• Socket Type: End Socket (Enddose)
• Mounting Type: Flush-mounted (Unterputz)
• Color: White
• Number of Outputs: 2
• Output 1 Connector Type: IEC Male (TV)
• Output 2 Connector Type: IEC Female (FM/Radio)
• TV Frequency Range: 47 - 862 MHz
• FM Frequency Range: 87.5 - 108 MHz
• Attenuation TV: 1.5 dB
• Attenuation FM: 1.5 dB
• Return Loss: >10 dB
• Shielding Factor: >75 dB
• Impedance: 75 Ohm
• Material: Plastic
• Installation: Requires standard flush-mounted box
• Connection Method: Screw terminals

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper grounding. Ideal for new installations or upgrades in TV/FM distribution systems.
