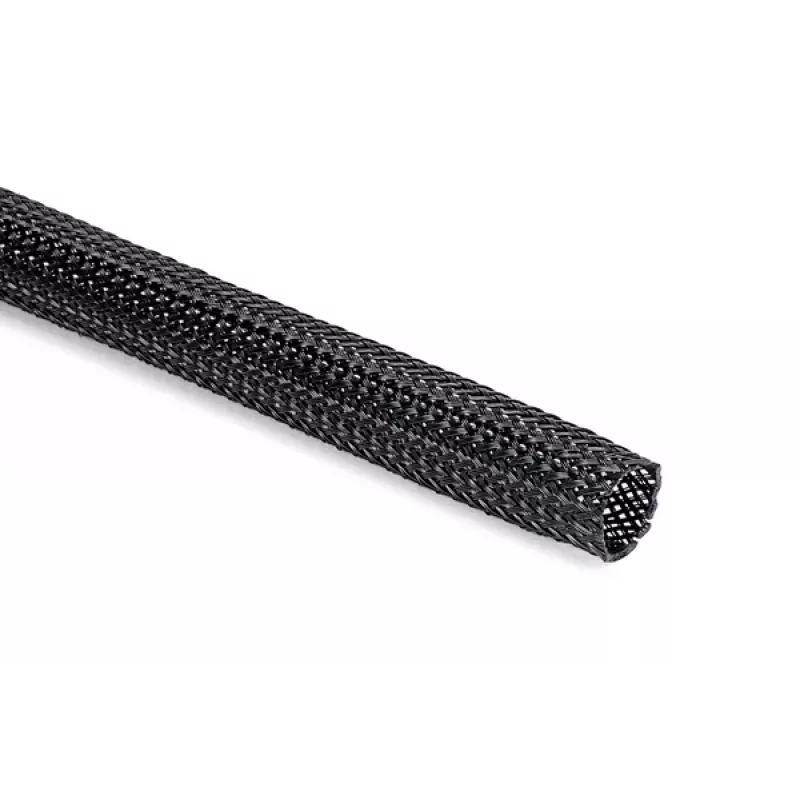

HellermannTyton 170-10800 funda trenzada, poliéster, negra, 12 mm de diámetro nominal, -50°C a +150°C, conforme a ELV

This HellermannTyton braided sleeving stands out for its high expansion ratio and robust polyester construction, offering superior abrasion protection for cable bundles in demanding environments. Unlike rigid tubing, it conforms tightly to irregular shapes while remaining flexible.

Highlights

• Material: Polyester (PET)
• Colour: Black
• Nominal diameter: 12 mm
• Operating temperature: -50 °C to +150 °C
• Flammability rating: UL94 V2
• Halogen-free
• Good UV resistance
• High abrasion resistance
• Good chemical resistance (fuels, oils, most chemicals)
• Compliance: RoHS, ELV
• UL Recognized
• Melting point: approx. 250 °C

In daily use

The sleeving is used for bundling and protecting cables and wires, particularly where abrasion is a concern. Its halogen-free nature and wide temperature range make it suitable for automotive, industrial, and electronics applications.

Full specifications

• Product type: Braided sleeving
• Material: Polyester (PET)
• Colour: Black
• Nominal diameter: 12 mm
• Operating temperature range: -50 °C to +150 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistance: Good
• Abrasion resistance: High
• Chemical resistance: Good (against fuels, oils, most chemicals)
• Expansion ratio: High
• Compliance: RoHS, ELV
• Approvals: UL Recognized
• Melting point: Approx. 250 °C

Final note

This sleeving provides reliable mechanical protection and is compliant with ELV directives, making it a safe choice for vehicle applications.
