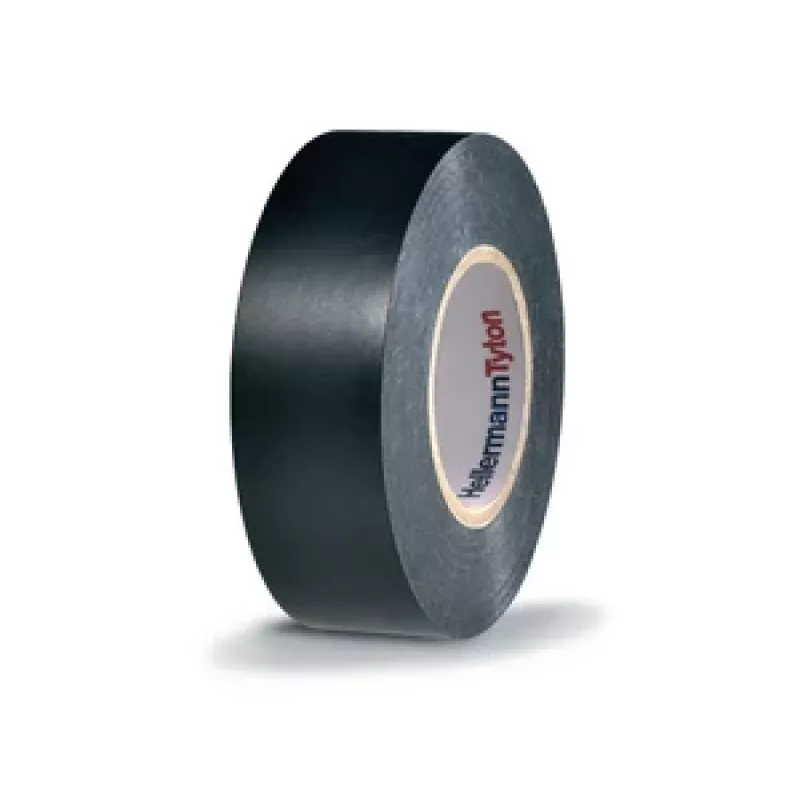

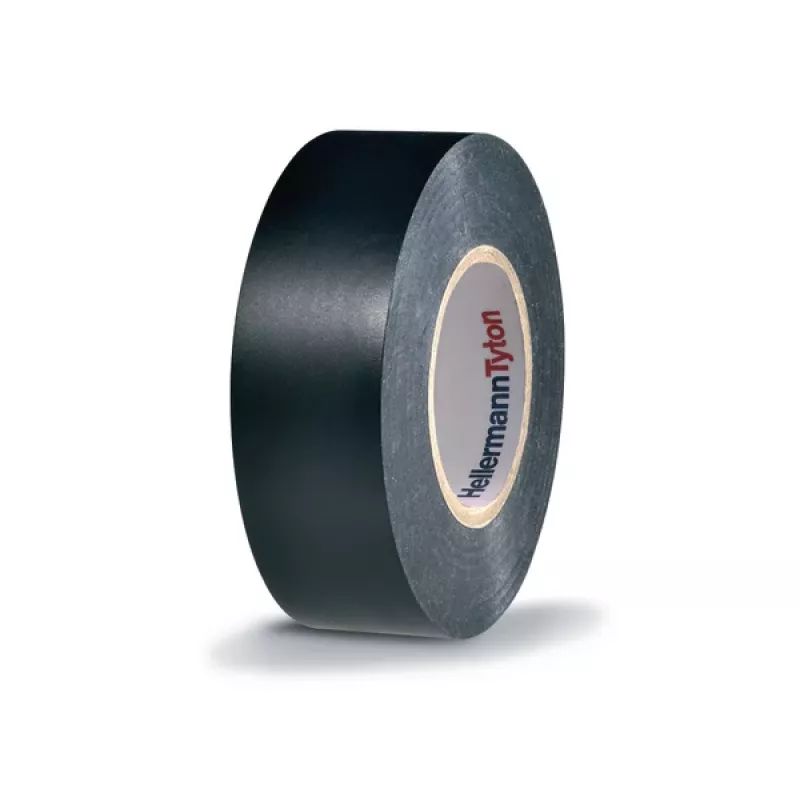

HellermannTyton HTAPE-FLEX1000+ cinta aislante eléctrica de PVC negra, 19 mm x 20 m, 105 °C, RoHS 710-00602

Electrical insulation, bundling, fastening, marking, repair, and reinforcement demand a tape that stays reliable under heat and mechanical stress. The HellermannTyton HTAPE-FLEX1000+ in black is a PVC tape engineered for exactly these tasks, with a rubber-based pressure-sensitive adhesive that bonds quickly to cables, wires, and harnesses.

Who is it for

Electricians, panel builders, maintenance technicians, and craftsmen who need a flame-retardant, RoHS-compliant insulation tape for professional installations and repairs.

Main features

• PVC backing with rubber-based adhesive for secure, long-lasting insulation
• Flame retardant and RoHS compliant for safe use in electrical environments
• Withstands temperatures from -10 °C to 105 °C
• High dielectric strength of 40 kV/mm and voltage rating of 600 V
• Elongation at break of 200% and tensile strength of 20 N/10mm for durable wrapping
• Black colour for standard phase identification and neat appearance

Specifications

• Product Type: Electrical Insulation Tape
• Material: PVC (Polyvinyl Chloride)
• Colour: Black
• Tape Width: 19 mm
• Tape Length: 20 m
• Tape Thickness: 0.15 mm
• Max. Operating Temperature: 105 °C
• Min. Operating Temperature: -10 °C
• Voltage Rating: 600 V
• Dielectric Strength: 40 kV/mm
• Adhesive Type: Rubber-based, Pressure-sensitive
• Elongation at Break: 200 %
• Tensile Strength: 20 N/10mm
• Flame Retardant: Yes
• Compliance: RoHS
• Adhesion to Steel: 1.8 N/10mm

Tips

For best adhesion, apply the tape to clean, dry surfaces at room temperature. Stretch the tape slightly while wrapping to create a tight, void-free insulation layer. Store in a cool, dry place away from direct sunlight.
