HellermannTyton QM40APT-I-PA66-BK base para bridas de cables, autoadhesiva/atornillable, PA66, negra, 40x40 mm, 1 ud. 151-01596

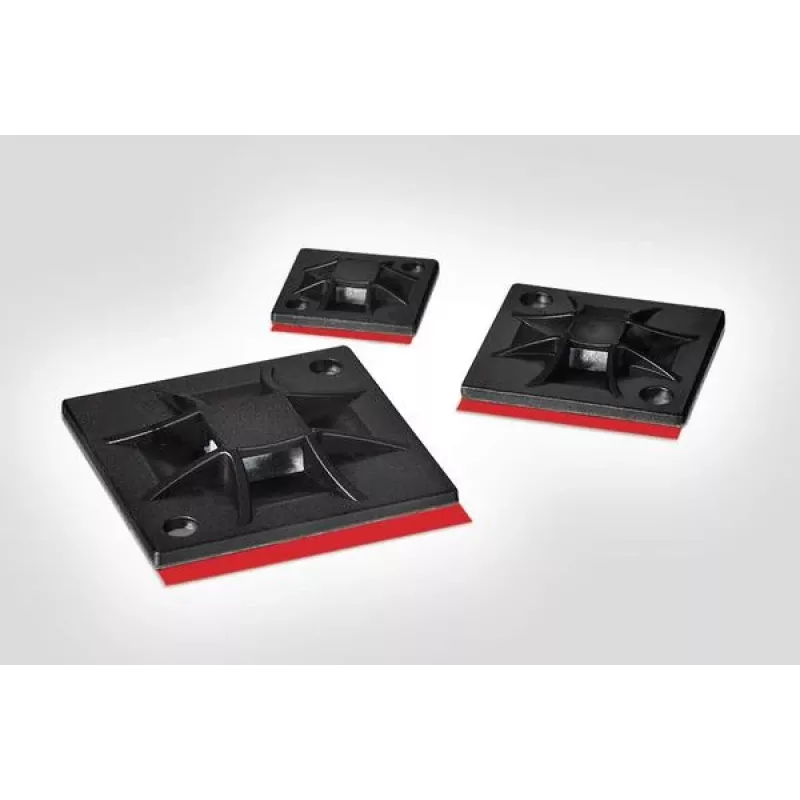

The QM40APT-I-PA66-BK mounting base handles cable ties up to 8 mm wide, giving you a solid anchor point for wire management in tight spaces. Its 40 x 40 mm footprint packs a self-adhesive synthetic rubber backing plus an M4 screw hole, so you can stick it or screw it depending on the surface.

Overview

Made from halogen-free, silicone-free polyamide 6.6 (PA66), this black base measures 40 mm long, 40 mm wide, and 9 mm high. It accepts cable ties up to 8 mm wide and has a 4.3 mm screw hole for M4 screws. The operating temperature range is -40 °C to +85 °C, and the material meets UL94 V2 flammability rating. The adhesive is synthetic rubber, providing reliable initial tack on clean, dry surfaces.

What stands out

• Dual fixing: self-adhesive or screwable (M4)
• Fits cable ties up to 8 mm wide
• Halogen-free and silicone-free PA66 material
• Wide temperature range: -40 °C to +85 °C
• Compact 40 x 40 mm base with 9 mm height

Technical details

• Product type: Cable tie mounting base
• Fixing method: Self-adhesive, screwable
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Base dimensions: 40.0 mm (L) x 40.0 mm (W) x 9.0 mm (H)
• Max. cable tie width: 8.0 mm
• Screw hole diameter: 4.3 mm
• Recommended screw size: M4
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Adhesive type: Synthetic rubber
• Halogen-free: Yes
• Silicone-free: Yes
• UV-resistant: No
• Quantity per pack: 1 piece

Our verdict

A versatile, compact mounting base for professional cable management where both adhesive and screw fixing are needed.
