OBO Bettermann AW 55 31 Soporte de pared/mástil, saliente 310mm, acero, galvanizado en caliente, con placa superior 6418570

With a robust 0.7 kN load capacity and hot-dip galvanized steel construction, this cantilever bracket delivers dependable support for cable trays, mesh trays, and cable ladders in demanding indoor and outdoor environments. The integrated head plate simplifies mounting, while the 310 mm projection provides ample clearance for cable routing.

Overview

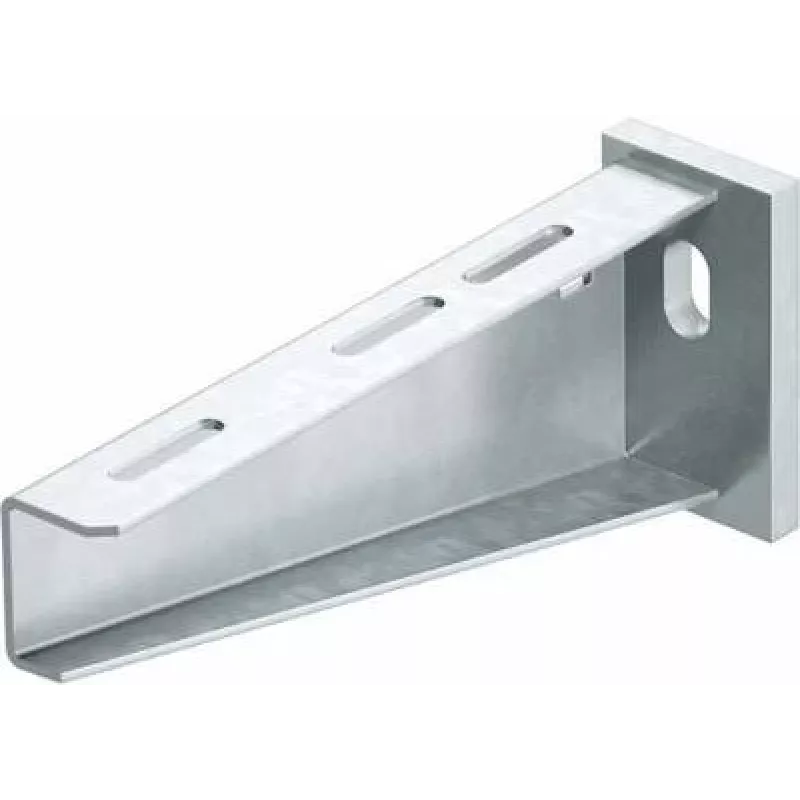

The OBO Bettermann AW 55 31 FT is a wall and pole cantilever bracket engineered for secure fastening of cable management systems. Its 55 mm profile height and 31 mm profile width ensure a rigid, low-profile structure that withstands mechanical stress. The bracket is manufactured from steel and finished with hot-dip galvanizing according to DIN EN ISO 1461, offering excellent corrosion protection for long-term reliability in harsh conditions.

What stands out

• Integrated head plate for quick and secure attachment to walls or poles
• Hot-dip galvanized finish provides high corrosion resistance, suitable for outdoor use
• 310 mm projection length accommodates a wide range of cable tray widths
• Compatible with cable trays, mesh trays, and cable ladders
• Nominal load capacity of 0.7 kN (approx. 70 kg) for heavy-duty installations

Technical details

• Product type: Cantilever bracket
• Mounting type: Wall / pole mounting
• Material: Steel
• Surface finish: Hot-dip galvanized (DIN EN ISO 1461)
• Projection length: 310 mm
• Profile height: 55 mm
• Profile width: 31 mm
• Feature: Integrated head plate
• Nominal load capacity: 0.7 kN
• Corrosion protection class: High
• Application environment: Indoor and outdoor
• Series: AW 55
• Colour: Metallic grey

Our verdict

A rugged and versatile mounting solution, the AW 55 31 FT combines high load capacity with superior corrosion resistance, making it an excellent choice for professional electrical installations in any environment.
