HELOS Cable de conexión de alimentación GST18 Compatible CEE 7/7 conector macho en ángulo 90° a conector hembra negro 10,0 m

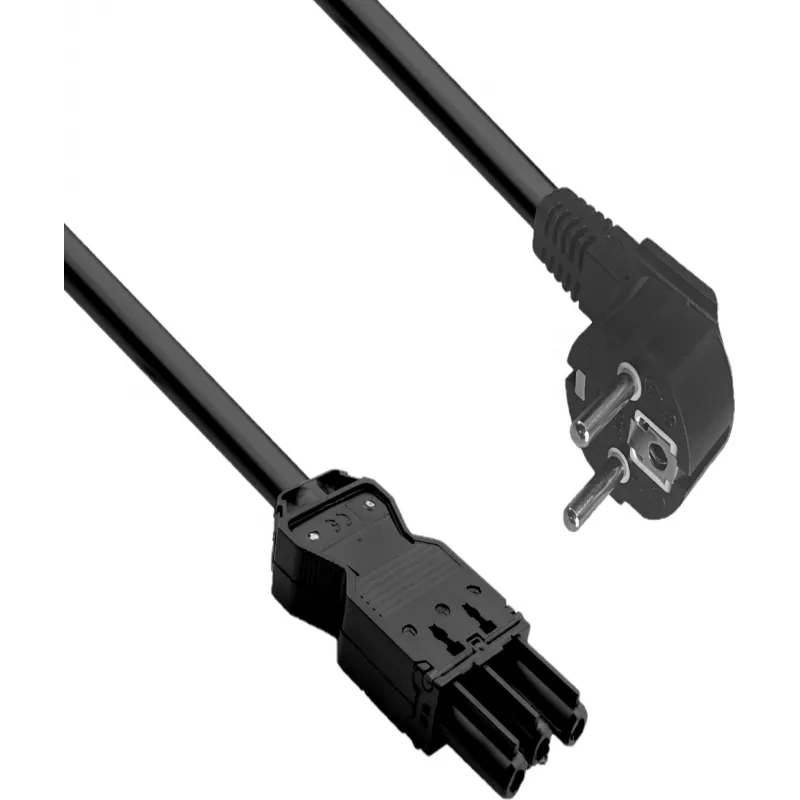

The HELOS Anschlusskabel GST18 komp. CEE 7/7 90°-Stecker auf Buchse schwarz 10,0m is a high-quality power connection cable designed for internal power distribution in office furniture, lighting systems, and similar applications. This cable features a CEE 7/7 Schuko angled plug on one end and a Wieland GST18i3 compatible socket on the other, providing a reliable and secure connection.

Advantages

With a 90° angled plug, this cable allows for flexible installation in tight spaces, reducing strain on the connector. The robust PVC jacket ensures durability and long service life. The cable is VDE and CE certified, guaranteeing compliance with European safety standards.

Suitable for

• Internal power distribution in office furniture
• Lighting systems
• Industrial and commercial power supply

Key specifications

• Cable Type: Power Connection Cable
• Connector A: CEE 7/7 Schuko Angled Plug (Male, 90°)
• Connector B: Wieland GST18i3 Compatible Socket (Female)
• Cable Length: 10.0 m
• Colour: Black
• Number of Conductors: 3
• Conductor Cross-section: 1.5 mm²
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Cable Jacket Material: PVC
• Protection Class: IP20
• Operating Temperature: -5°C to +70°C
• Standards Compliance: VDE, CE

Recommendations

For optimal performance, ensure that the cable is used within its rated voltage and current limits. Avoid exposure to extreme temperatures or moisture beyond the specified range.
