HELOS Cable de Conexión de Alimentación GST18 Compatible CEE 7/7 Enchufe Acodado 90° a Toma Negro 1,0m

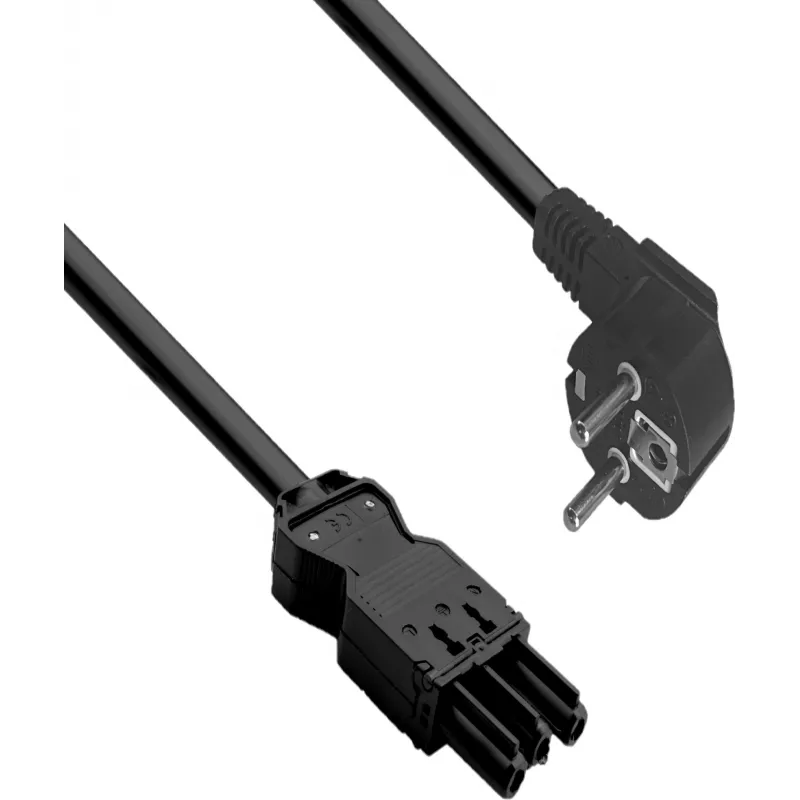

The HELOS Anschlusskabel GST18 komp. CEE 7/7 90°-Stecker auf Buchse schwarz 1,0m is a high-quality power connection cable designed for reliable power supply to Wieland GST18i3 compatible systems and devices. This cable features a CEE 7/7 angled plug (Schuko) on one end and a Wieland GST18i3 socket on the other, providing a secure and efficient connection. With a length of 1.0 meter and a black PVC jacket, it is ideal for use in various applications where space is limited and a right-angle plug is required.

Advantages

This power cable offers several advantages: the 90-degree angled plug allows for flexible installation in tight spaces, reducing strain on the cable and connectors. The robust construction with PVC insulation and polyamide connectors ensures durability and long service life. It is certified to VDE and CE standards, guaranteeing safety and compliance. The cable supports a rated voltage of 250V AC and a rated current of 16A, making it suitable for a wide range of power supply needs.

Suitable for

• Power supply for Wieland GST18i3 compatible systems and devices
• Industrial and commercial applications requiring a reliable connection
• Use in environments where a right-angle plug is beneficial for space management

Key specifications

• Product Type: Power Connection Cable
• Connector A: CEE 7/7 Angled Plug (Schuko), Male
• Connector B: Wieland GST18i3 Socket, Female
• Cable Length: 1.0 m
• Color: Black
• Rated Voltage: 250V AC
• Rated Current: 16A
• Number of Conductors: 3
• Conductor Cross-Section: 1.5 mm²
• Cable Jacket Material: PVC
• Plug Angle: 90 degrees
• Protection Rating: IP20
• Operating Temperature Range: -5°C to +70°C
• Certification: VDE, CE
• System Compatibility: Wieland GST18i3 compatible
• Insulation Material: PVC
• Connector Material: Polyamide (PA)

Recommendations

For optimal performance, ensure that the cable is used within its specified voltage and current ratings. Avoid exposing the cable to extreme temperatures or moisture beyond its IP20 rating. This cable is an excellent choice for powering GST18i3 devices in control cabinets, machinery, and other industrial settings.
