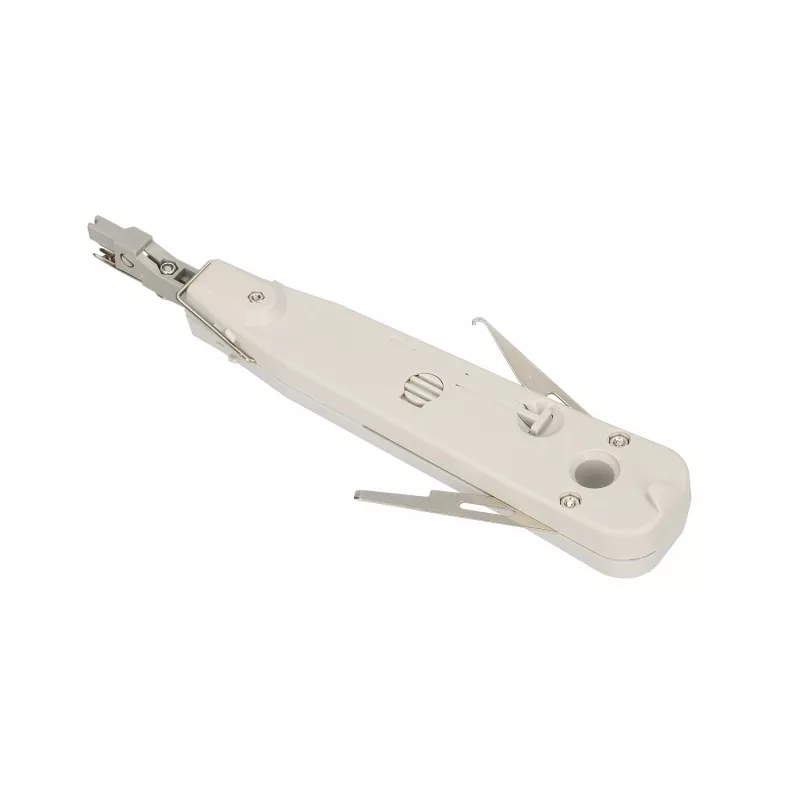

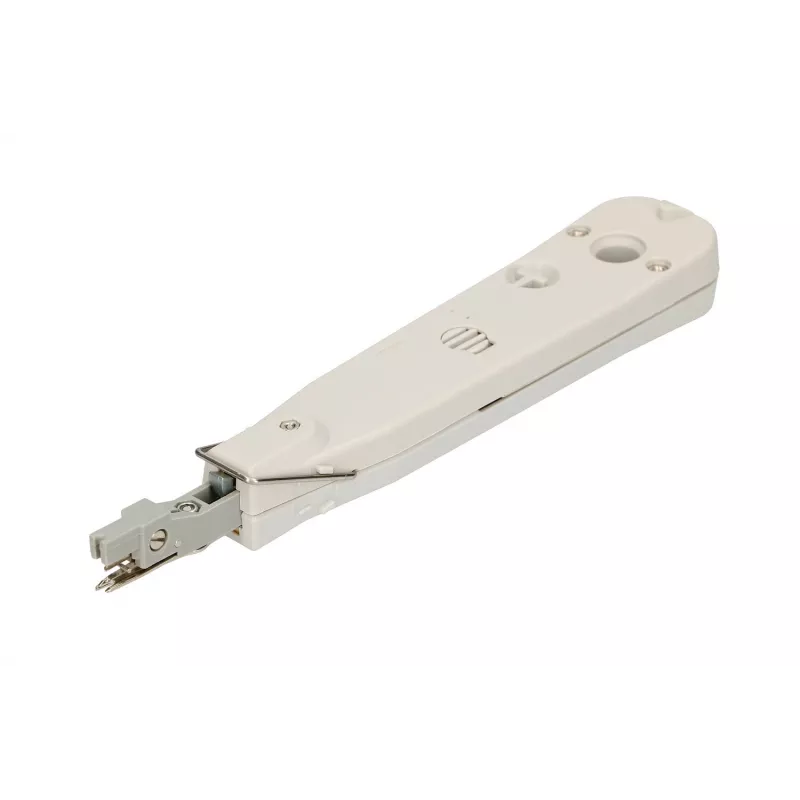

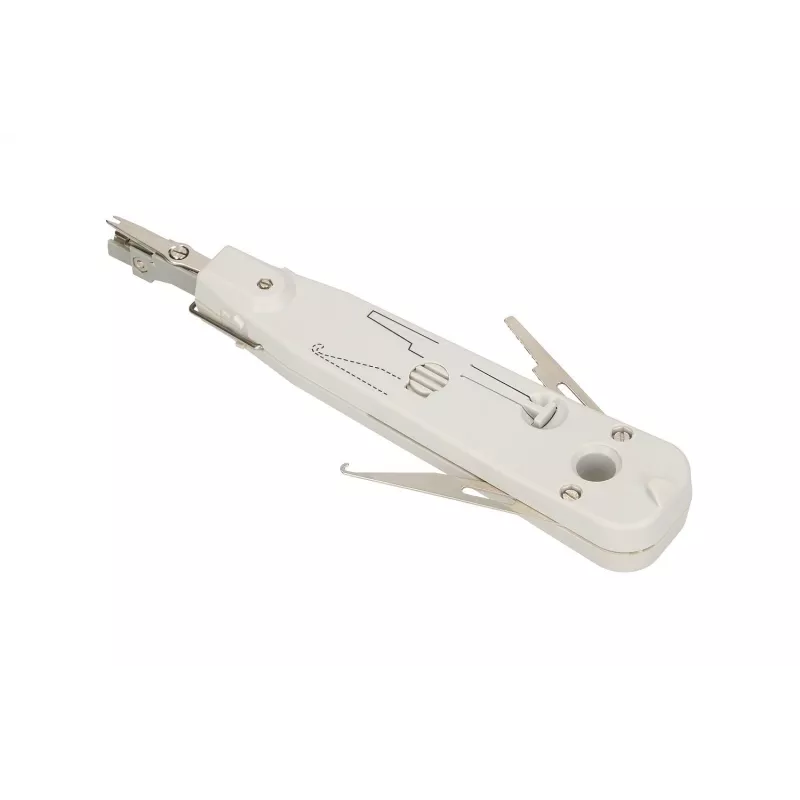

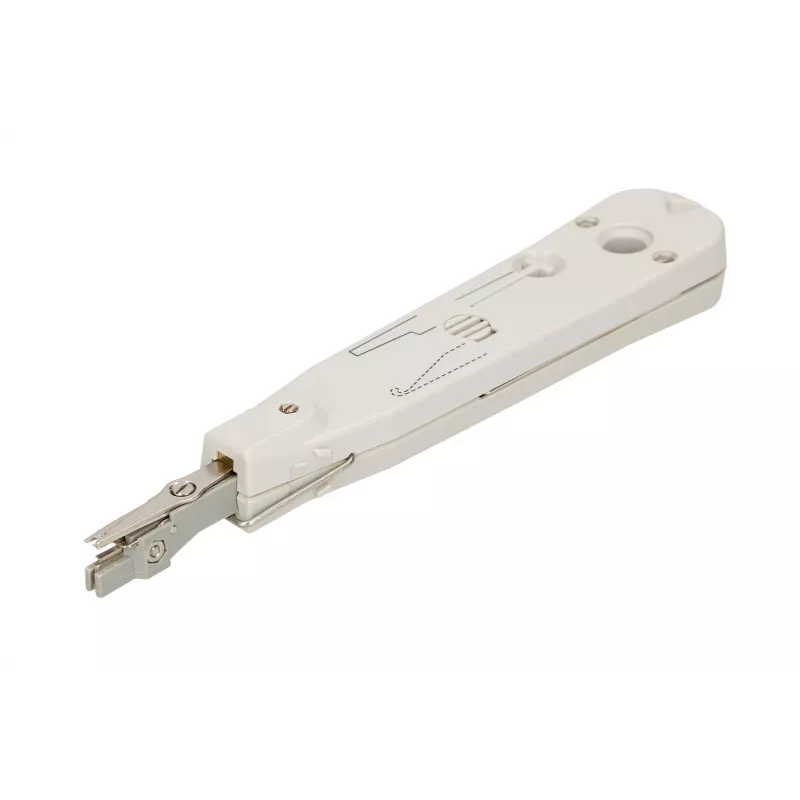

Herramienta de inserción Krone Extralink NT-T002, cuchilla de acero templado, mango de plástico, función de bloqueo, gris/blanco

The Extralink NT-T002 Krone punch tool is designed for impact crimping of cables into LSA-type terminals and for terminating IDC contacts in patch panels, keystone modules, telephone and network sockets, switches and junction boxes. It includes a hardened steel blade for reliable cutting and termination, a plastic handle for ergonomic grip and a lock function for safe storage. The tool is equipped with integrated scissors for trimming long cable ends, a special hook for pulling wires from connectors and an element for removing connectors from sockets. High-quality materials ensure long-lasting use even in demanding conditions.

Advantages

The hardened steel blade provides precise, durable cutting and reliable termination of conductors. The plastic handle offers comfortable handling during repetitive installation tasks, while the lock function and scissors lock improve safety and transport. Built-in accessories (cutter, hook and connector extractor) streamline installation work and reduce the need for additional tools.

Suitable for

• Termination of IDC contacts in LSA modules and Krone-style punch blocks
• Installing and maintaining telephone and network sockets
• Patch panel and keystone module wiring
• Telecommunications, network and switch cabinet installation work

Key specifications

• Model: Extralink NT-T002 (MPN: EX.9687, EAN: 5902560369687)
• Tool type: Krone / punch down tool for LSA/IDC terminations
• Blade material: Hardened steel
• Handle material: Plastic
• Features: Built-in scissors, wire pull hook, connector extractor, scissors lock, wire insertion depth regulator, lock function
• Colour: Grey / White

How to use

Place the conductor into the IDC contact or the LSA terminal slot, align the tool blade over the conductor and press the tool with a single impact action to crimp and cut the excess conductor. Use the built-in scissors to trim longer cable ends before final insertion if needed. Use the hook to pull wires from connectors and the extractor element to remove connectors from sockets. Adjust the wire insertion depth regulator to ensure correct seating of the conductor in the contact.

Recommendations

For consistent results, inspect the blade before use and replace it if visibly worn. Set the wire insertion depth regulator according to the connector type and verify crimps visually and electrically after termination. Store the tool with the lock engaged to protect the blade and cutting components.
