Herramienta de instalación para conector F DeLOCK 90515

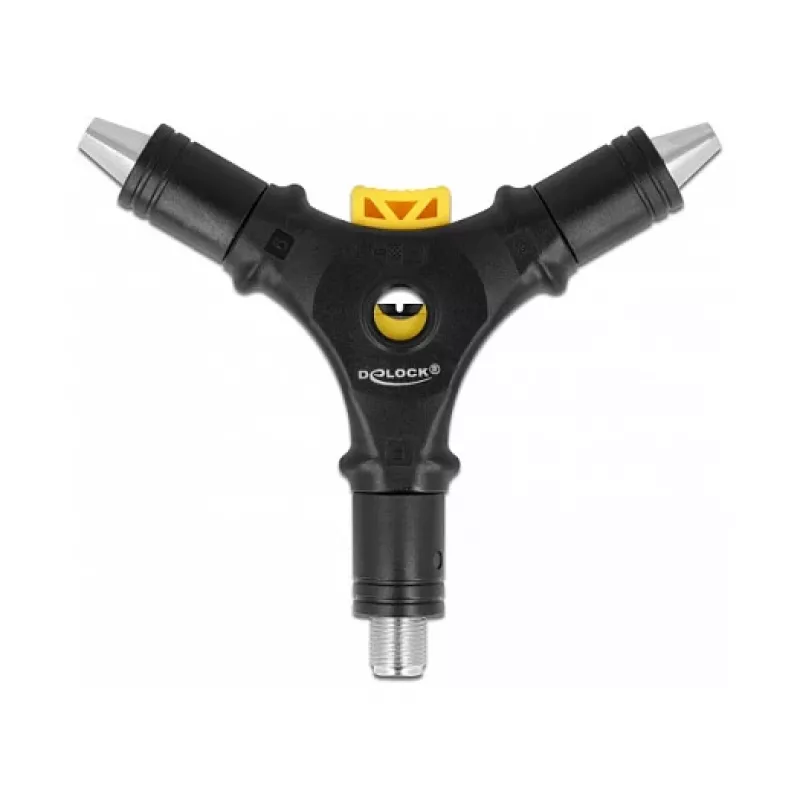

This star-shaped 4 in 1 installation tool by DeLOCK is made to simplify the preparation and installation of F connectors on round coaxial cables. Compact and lightweight, it combines cable stripping, cable end shaping and guidance for RG-6 and RG-59 types to speed up connector fitting and subsequent crimping.

Advantages

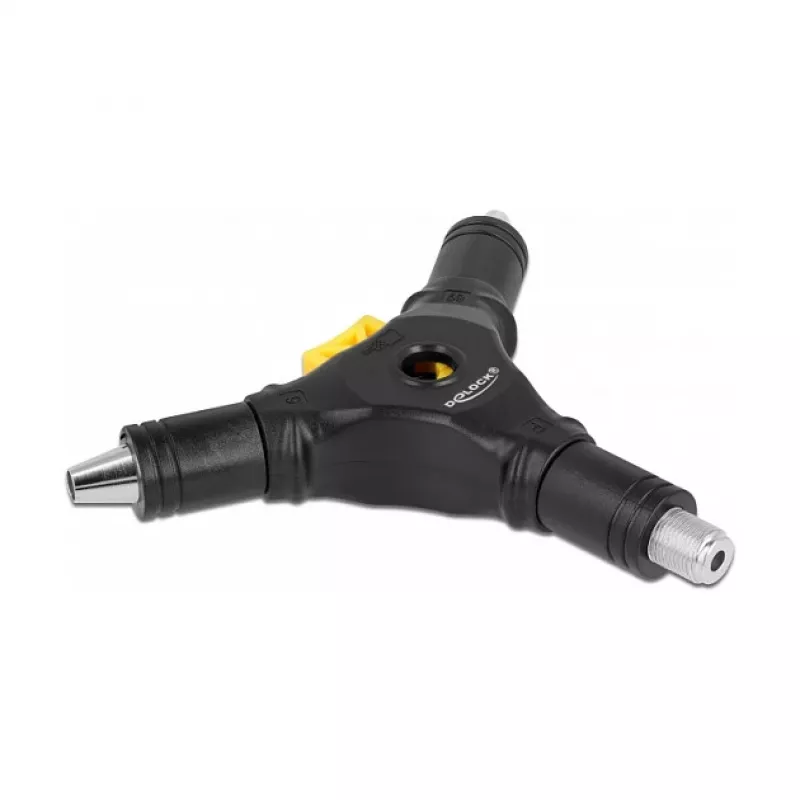

The tool integrates a central blade for stripping round coax cables and two different-sized funnels to stretch and guide RG-6 and RG-59 cable ends for easier sleeve and connector insertion. Its compact star-shaped design offers convenient handling and storage, and the tool is lightweight and portable.

Suitable for

Key specifications

How to use

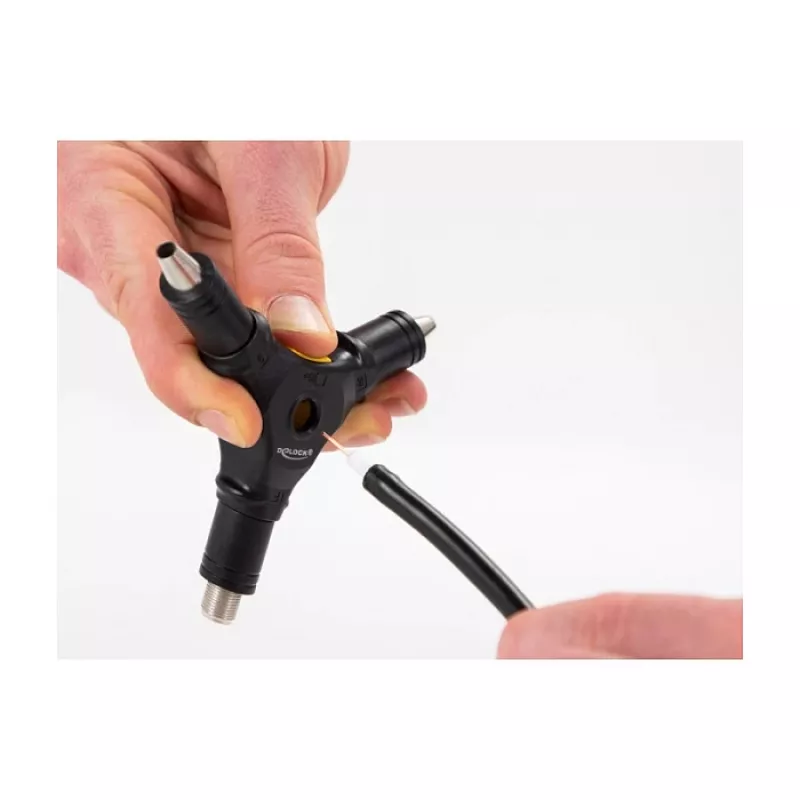

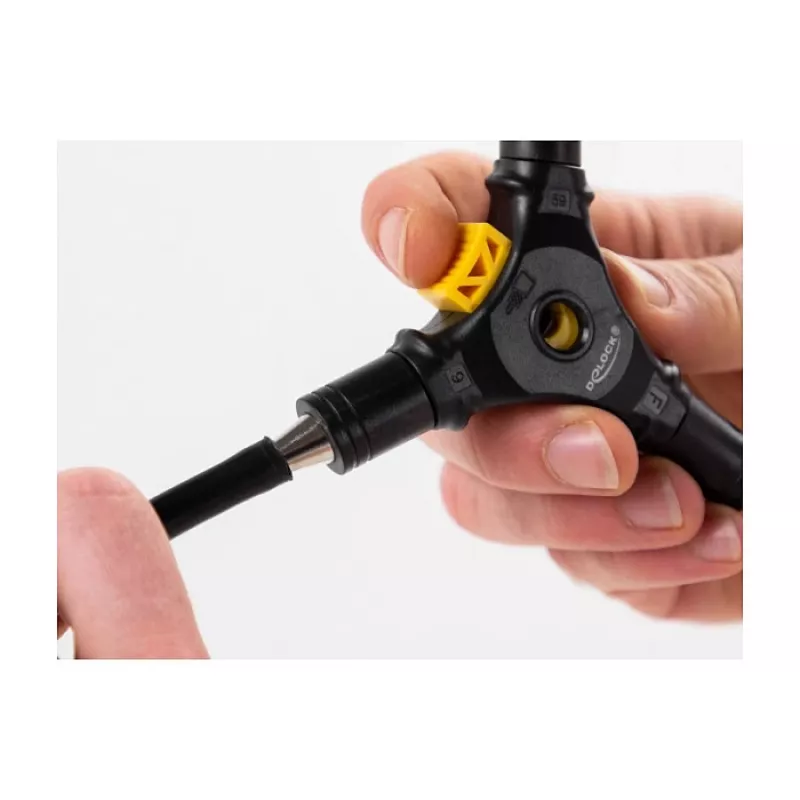

Place the cable into the central stripping groove and rotate the tool around the cable to remove the outer jacket with the built-in blade. Select the appropriate funnel size for RG-6 or RG-59 and pull the cable end through to stretch and shape it for easier sleeve insertion. Slide the connector sleeve and screw the connector onto the threaded plug. After the connector is fitted, insert the cable fully and crimp the connector with a suitable crimping tool.

Recommendations

Use caution when handling the central blade to avoid injury. Check connector and sleeve compatibility with your cable type before installation. For final mechanical and electrical connection, use a compatible crimping tool and verify the connection with appropriate testing equipment.
