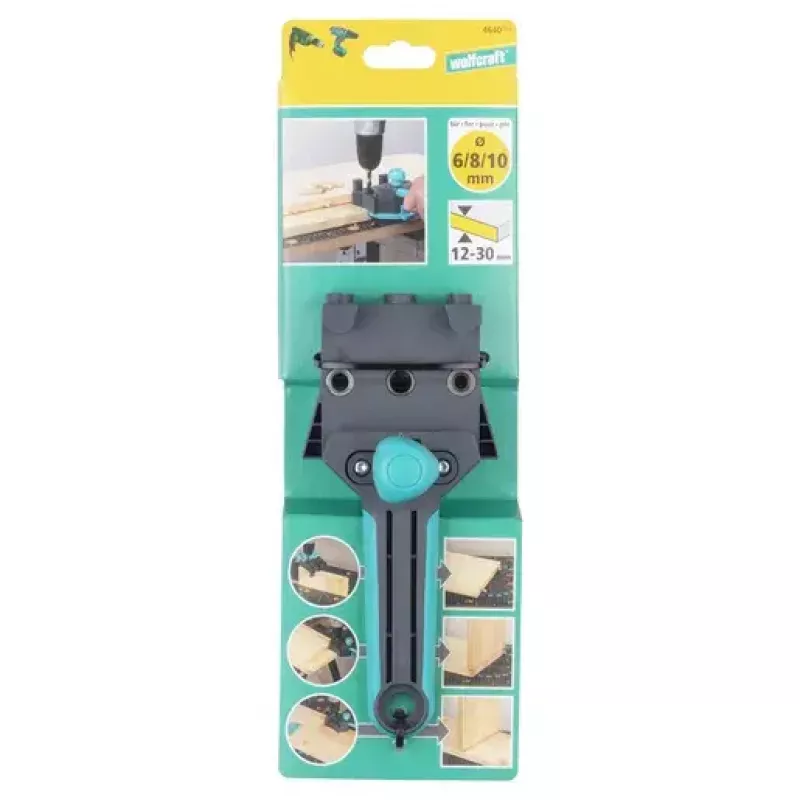

Herramienta de montaje Wolfcraft Dübelmeister para tacos 6/8/10 mm, grosor de placa 1,2–30 mm, plástico/acero, negro

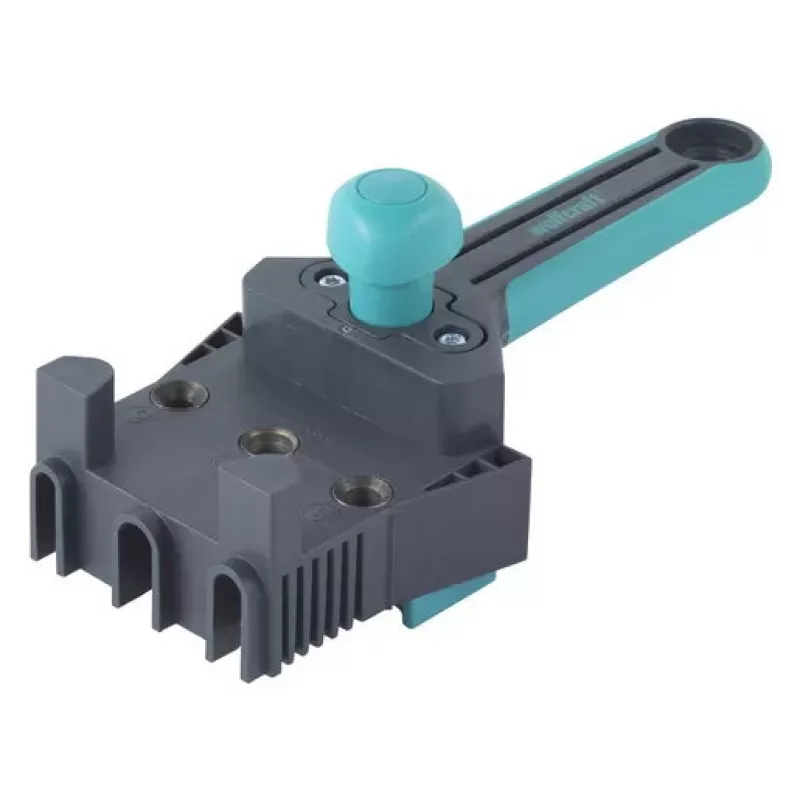

The wolfcraft Dowelmaster is a handheld dowel gauge for creating accurate dowel joints in wood. Constructed from impact-resistant plastic with steel drill guide bushes, it supports 6, 8 and 10 mm dowel pins and includes an adjustable stop, three integrated guide bushes and two centring bolts. The ergonomic handle and compact design make the Dowelmaster suitable for a wide range of drilling tasks on face edges and board ends.

Advantages

The Dowelmaster provides repeatable centre alignment for corner, T-butt and edge-to-edge joints without prior experience. Steel guide bushes ensure precise drill guidance for 6, 8 and 10 mm dowel pins while the impact-resistant body offers durability during regular workshop use. The adjustable depth stop and simple adjustment screw let you set drilling depth and spacing to match board thickness and dowel length without extra tools.

Suitable for

• Drilling face-edge holes for dowel joints

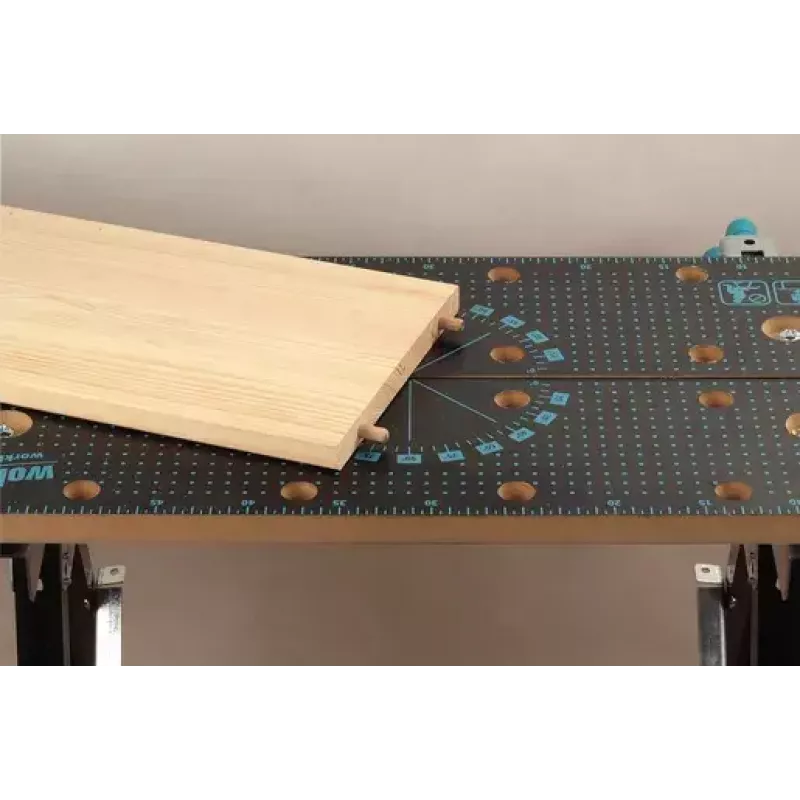

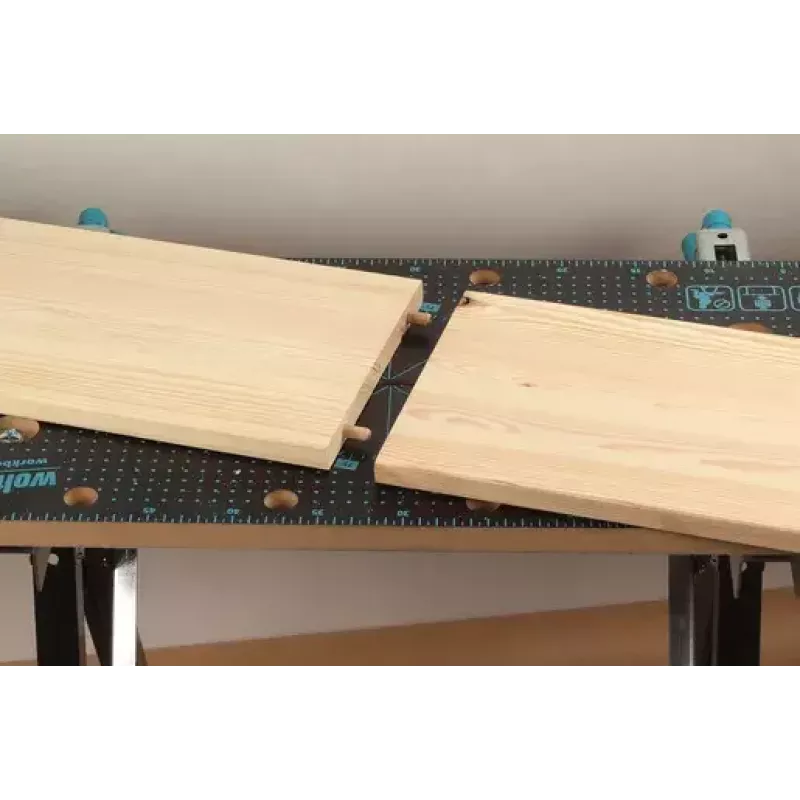

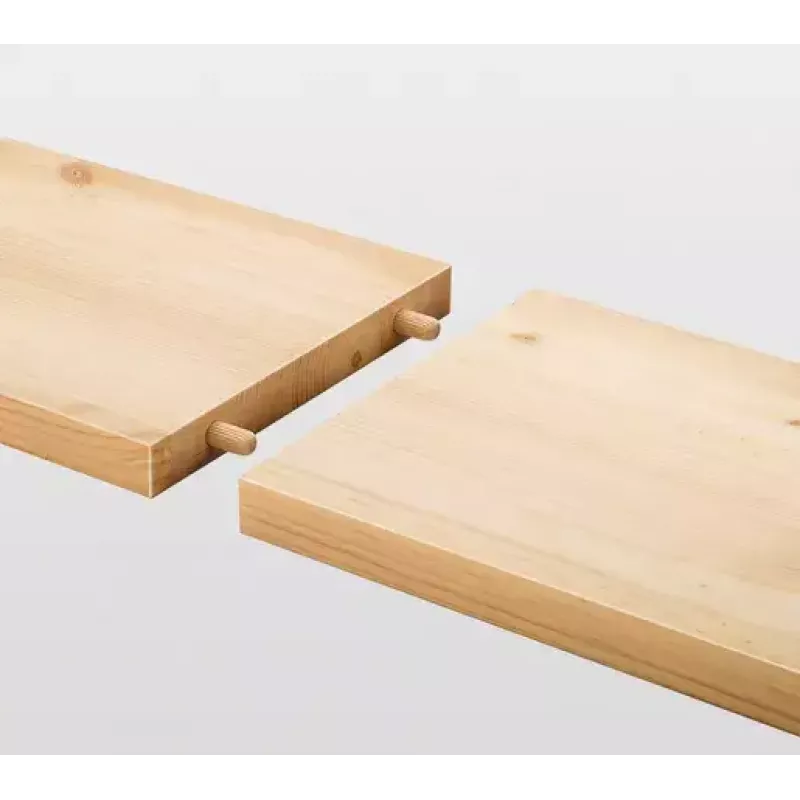

• Creating edge-to-edge dowel connections

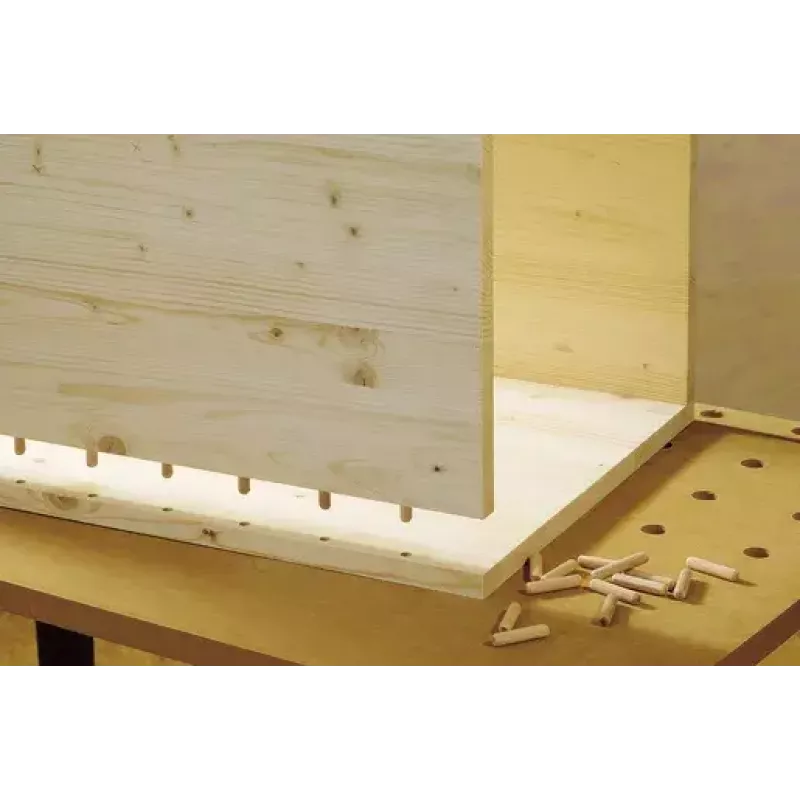

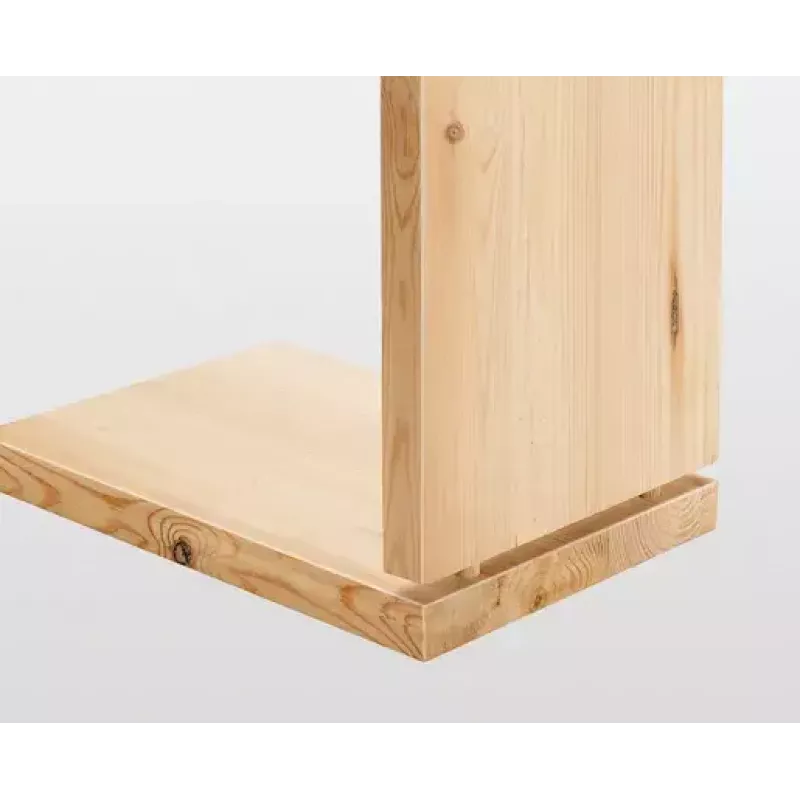

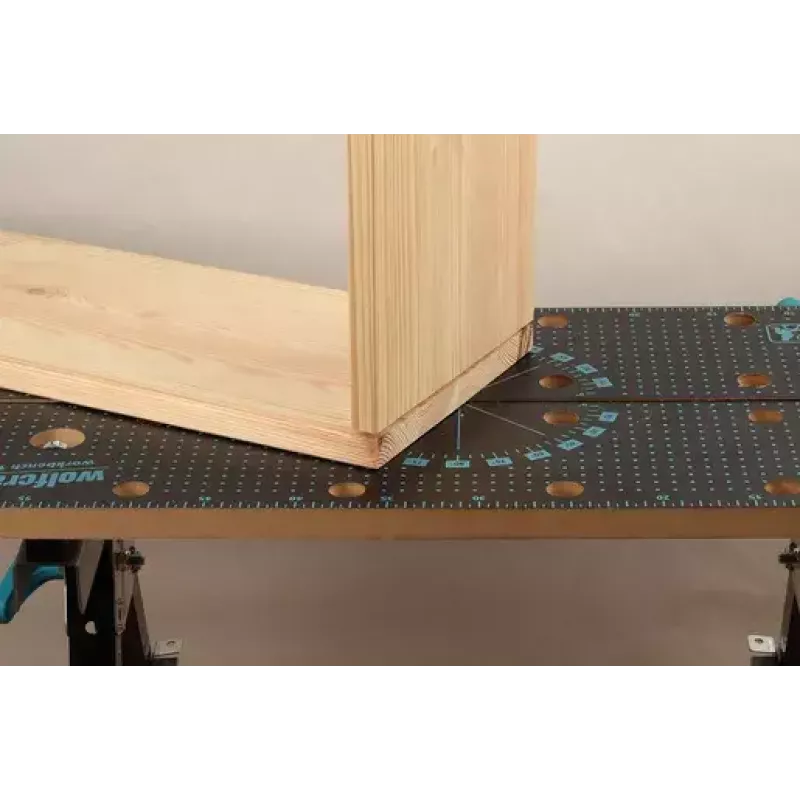

• Making corner joints with repeatable alignment

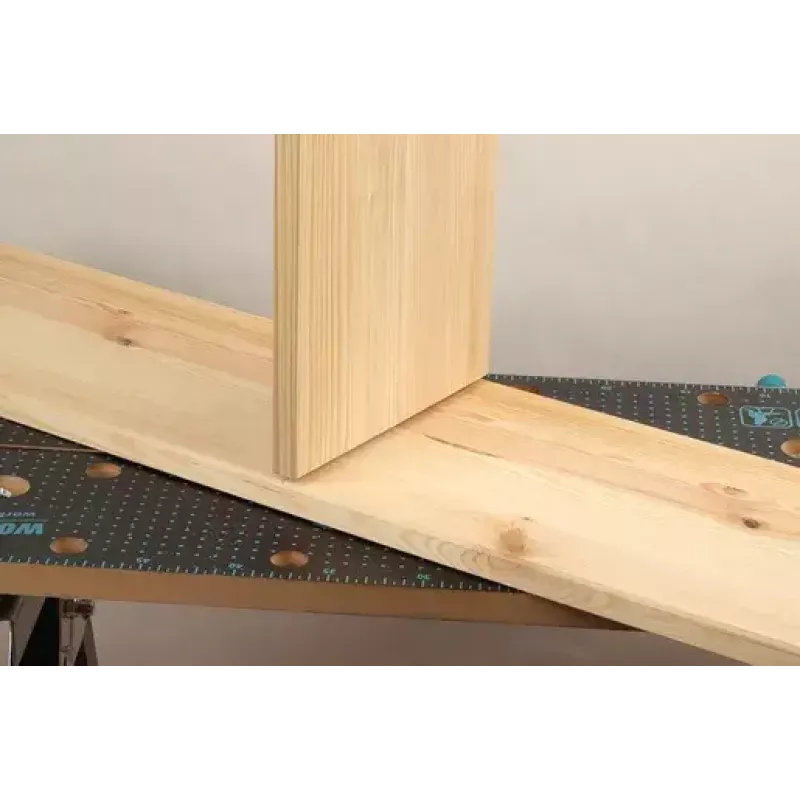

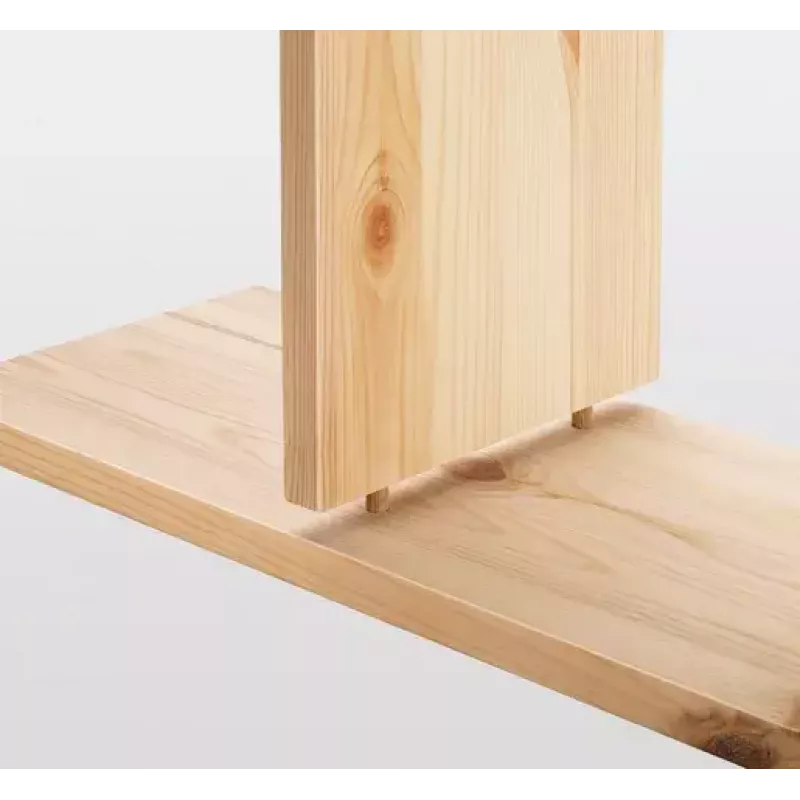

• Drilling T-butt joints in furniture and carcass construction

Key specifications

• Compatible dowel pin diameters: 6 mm, 8 mm, 10 mm
• Materials: impact-resistant plastic body, steel drill guide bushes
• Includes: adjustable stop, three guide bushes, two centring bolts, ergonomic handle
• Manufacturer: Wolfcraft (MPN 4640000, EAN 4006885464001)

How to use

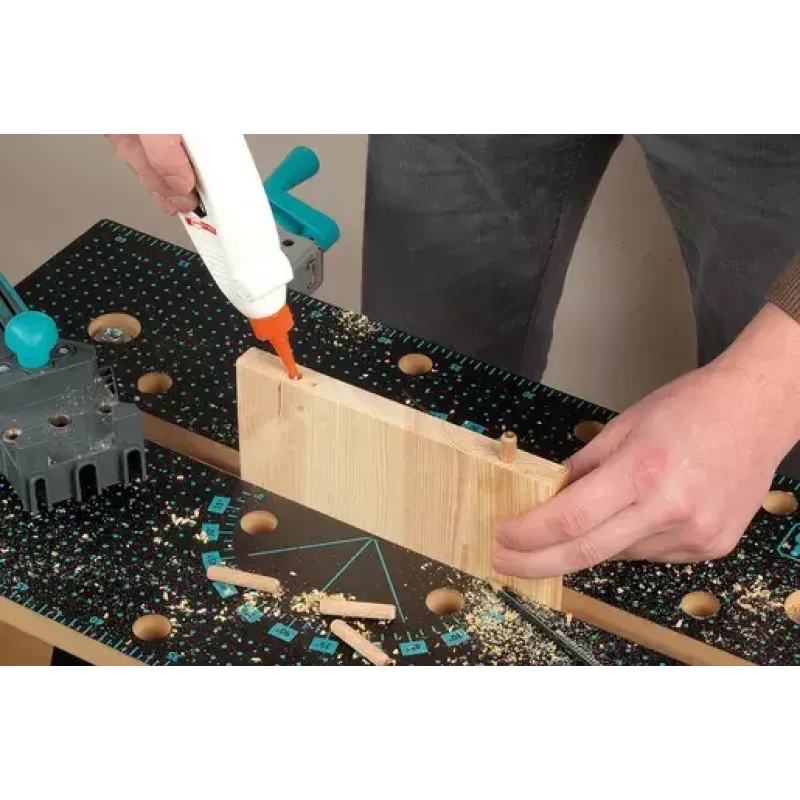

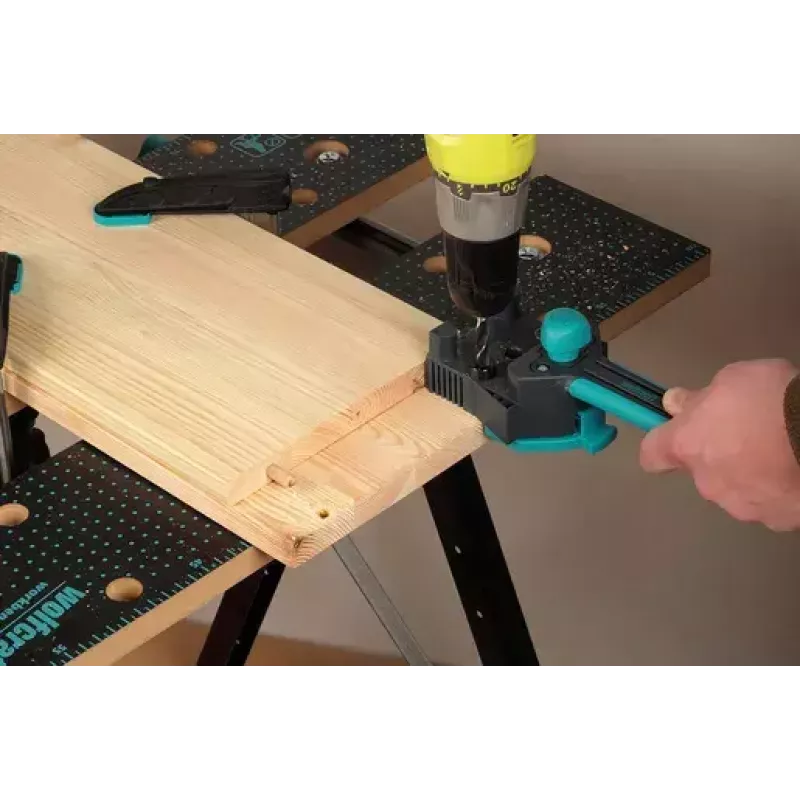

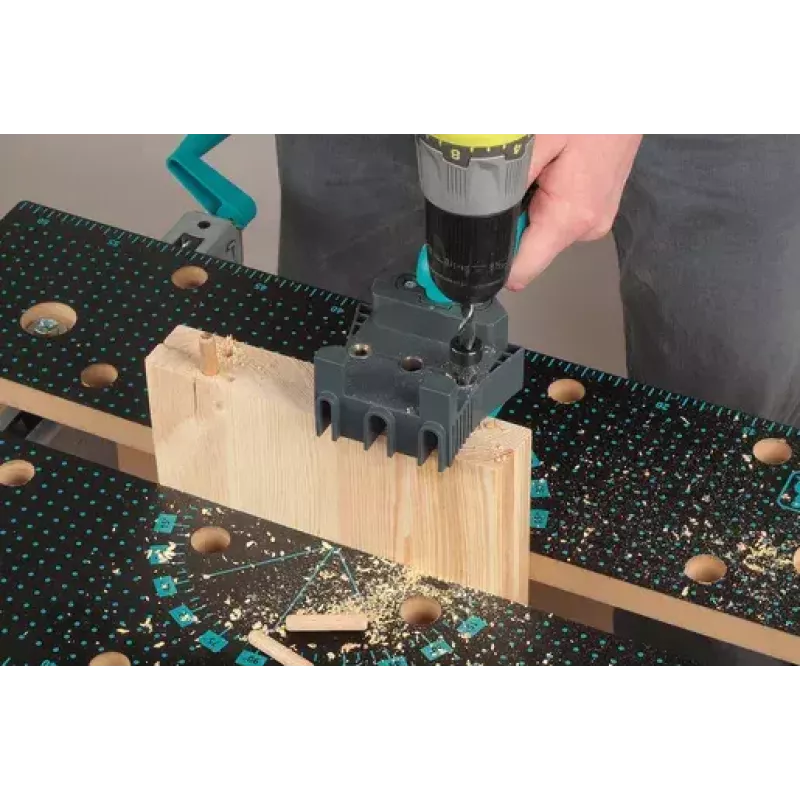

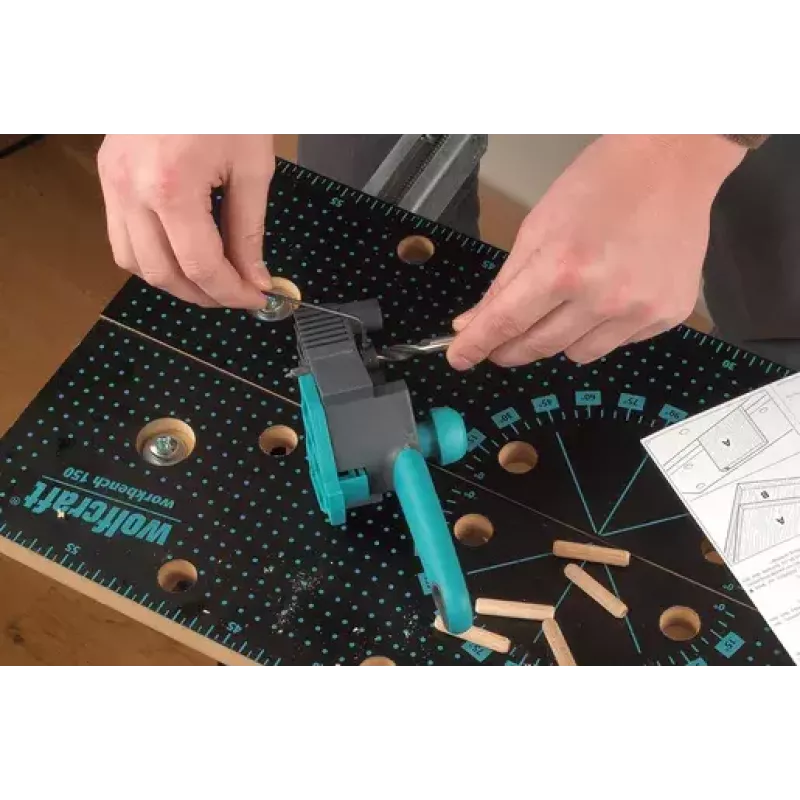

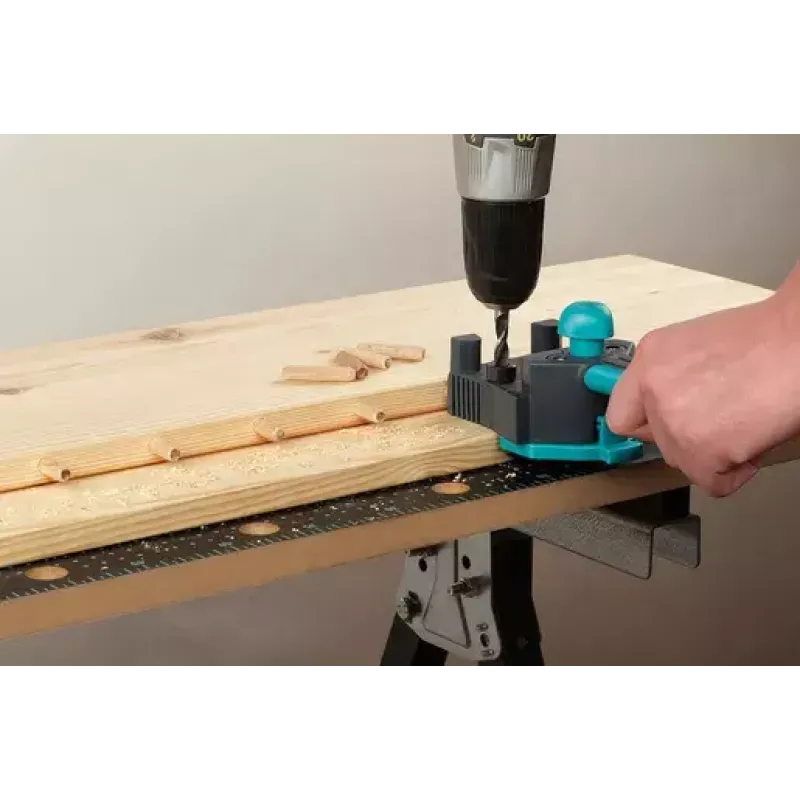

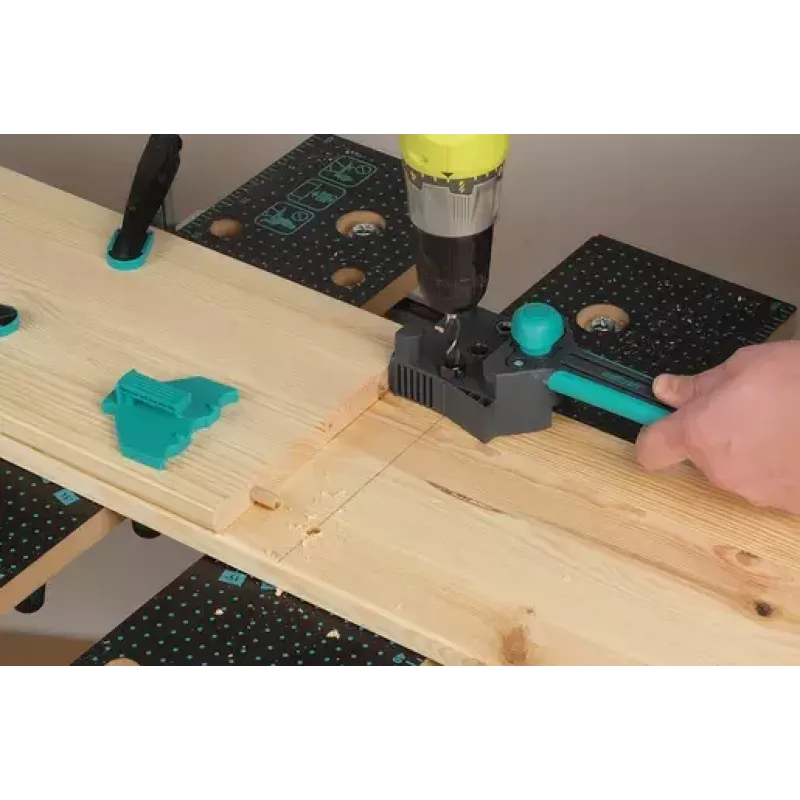

For face drill holes, set the drill bit depth stop to match the board thickness and dowel length. Place the Dowelmaster on the face edge of the board, secure it between the two centring bolts and drill through the chosen guide bush to reach the exact centre of the face side. For edge-to-edge joints, clamp both boards, insert a dowel pin into the first board, then push the Dowelmaster with the guide slot over the pin and drill through the bush in the second board. For corner joints, first drill and glue dowel pins into the face board, then fit the pinned board against the undrilled board, adjust the stop by guiding a dowel pin into the appropriate bush and locking the stop with the adjustment screw, then drill into the lower board with the stop seated against its edge. For T-butt joints, after gluing dowel pins into the face of the first board, mark the centre line on the side board, clamp the bottom board 4 cm from that line, push the Dowelmaster over the pinned dowel and drill through the top bush.

Recommendations

Use sharp wood drill bits matched to the selected guide bush (6/8/10 mm) and check depth settings on scrap material before drilling final parts. Clamp workpieces securely and apply steady, even pressure while drilling to avoid damage to guides or boards.
