Herramienta pelacables EFB Elektronik 39900.1 negro

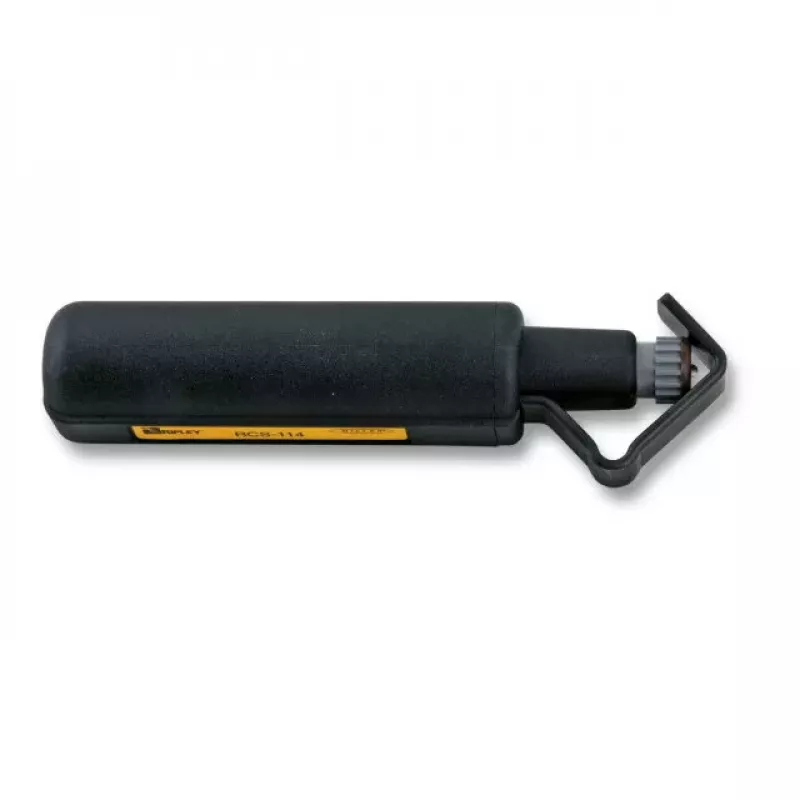

The EFB Elektronik 39900.1 cable stripper is a precision tool for removing the outer jacket from round cables. It supports adjustable cutting depth and offers longitudinal cuts, circumferential slits and spiral slitting with the Tri-Action-Strip mechanism, making it suitable for a range of cable diameters from 4.5 mm up to 29 mm.

Advantages

This cable stripper provides precise, repeatable stripping thanks to its adjustable knife and Tri-Action-Strip design. The tool covers a wide stripping range (4.5 mm–29 mm) and allows selection of longitudinal, circumferential or spiral cuts to match different cable constructions. Its black finish is durable and designed for comfortable handling during repeated use.

Suitable for

• Round cables with outer diameters from 4.5 mm to 29 mm
• Electrical installation and maintenance work
• Data and communication cable preparation
• Workshop and field service cable preparation

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 39900.1
• EAN: 4049759079086
• Stripping capacity: 4.5 mm – 29 mm (0.45 cm – 2.9 cm)
• Cut types: longitudinal, circumferential, spiral (Tri-Action-Strip)
• Adjustable cutting depth

How to use

Select the appropriate cutting mode (longitudinal, circumferential or spiral) and set the cutting depth to match the cable jacket thickness. Place the cable in the stripper, align the knife, and perform the cut by rotating or sliding the tool as required for the chosen cut type. After scoring the jacket, remove the cut section to expose the conductors; repeat adjustments if a cleaner strip is needed.

Recommendations

Use appropriate personal protective equipment and verify cutting depth on a test piece before working on live or expensive cables. Do not exceed the stated diameter range to avoid damage to the conductors or the tool.
