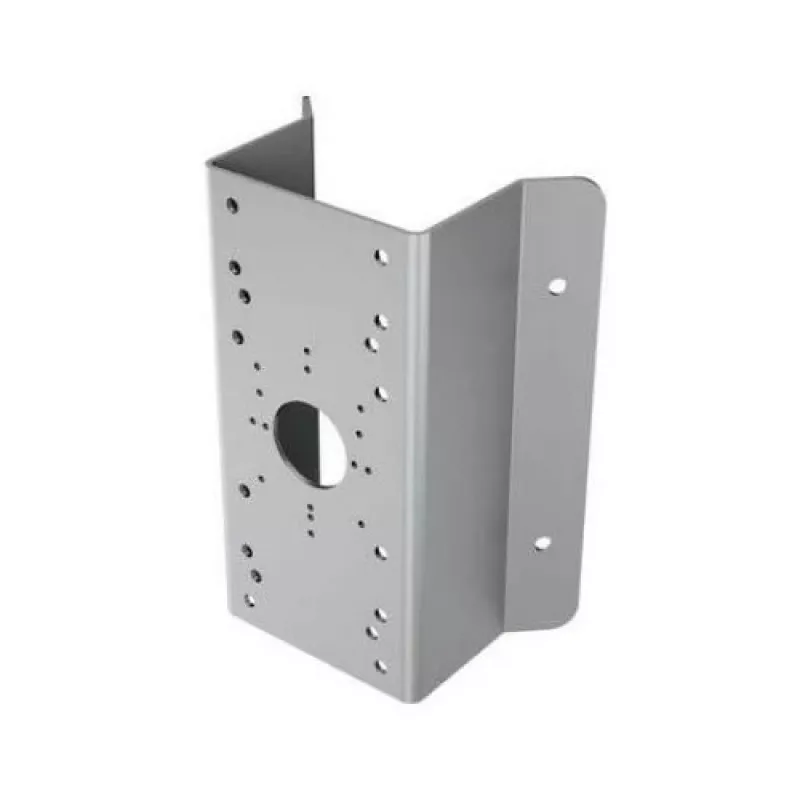

Hikvision DS-1276ZJ-SUS Soporte de esquina para cámaras domo, acero inoxidable, interior/exterior, blanco/plata

The Hikvision DS-1276ZJ-SUS is a robust corner mount bracket designed for secure installation of Hikvision dome cameras. Crafted from high-grade stainless steel (SUS304), this mount ensures excellent corrosion resistance and durability for both indoor and outdoor environments. It features an integrated cable management system for a clean and professional setup, and supports a maximum load of 10 kg (22 lb). Compatible with a wide range of Hikvision dome camera series, including DS-2CD21xx, DS-2CE56xx, and DS-2CD23xx.

Advantages

This corner mount provides a stable and reliable mounting solution for corner installations, maximizing field of view while maintaining a low-profile appearance. The stainless steel construction guarantees long-lasting performance even in harsh weather conditions. Pre-drilled mounting holes and included hardware simplify installation, saving time and effort.

Suitable for

• Hikvision dome cameras (DS-2CD21xx, DS-2CE56xx, DS-2CD23xx series)
• Corner mounting applications in commercial, residential, and industrial settings
• Indoor and outdoor surveillance systems requiring weather-resistant hardware

Key specifications

• Mount Type: Corner Mount
• Material: Stainless Steel (SUS304)
• Load Capacity: 10 kg (22 lb)
• Color: White / Metallic Silver
• Dimensions (L x W x H): 194 mm × 176 mm × 105 mm (7.64" × 6.93" × 4.13")
• Weight: 1.1 kg (2.43 lb)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Compatibility: Hikvision dome cameras
• Cable Management: Integrated cable routing
• Installation Method: Wall corner mounting
• Corrosion Resistance: High
• Weather Resistance: Yes
• Mounting Holes: Pre-drilled

Recommendations

For optimal performance, ensure the mounting surface is solid and capable of supporting the weight. Use appropriate anchors for the wall type. This mount is ideal for achieving a wide-angle view from corners without obstruction.
