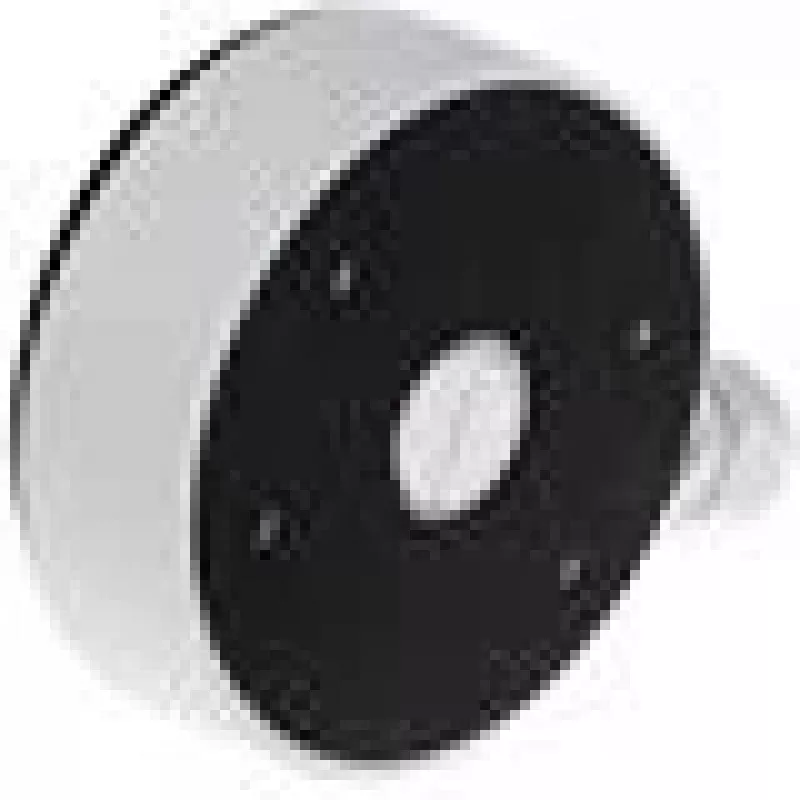

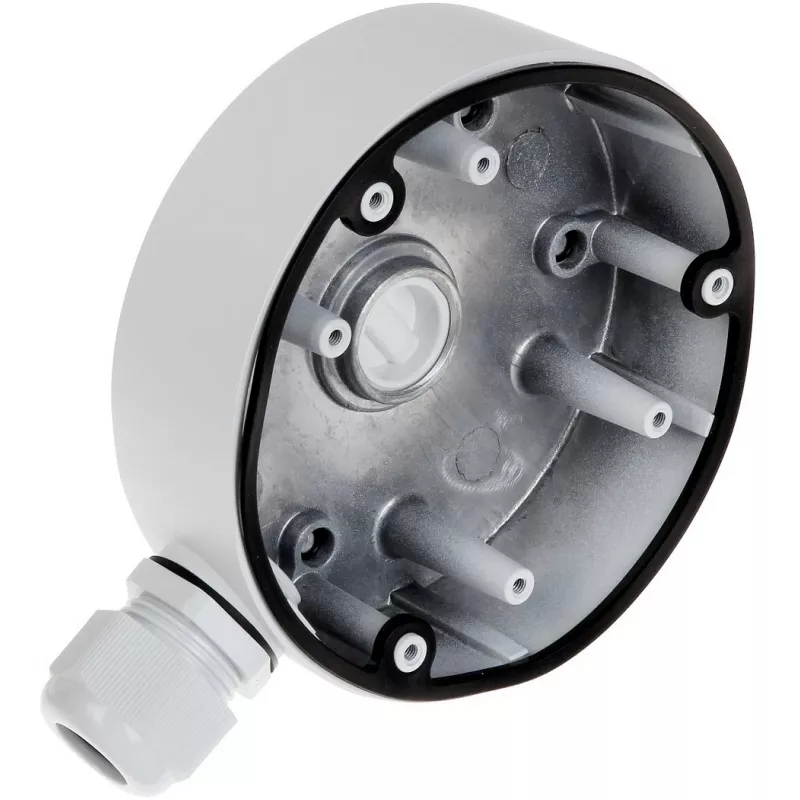

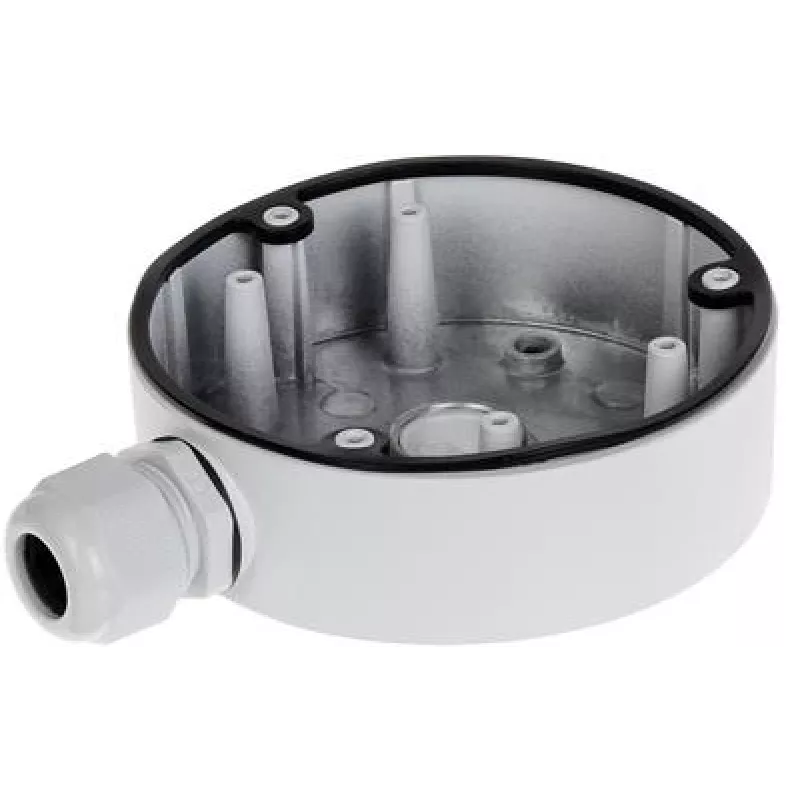

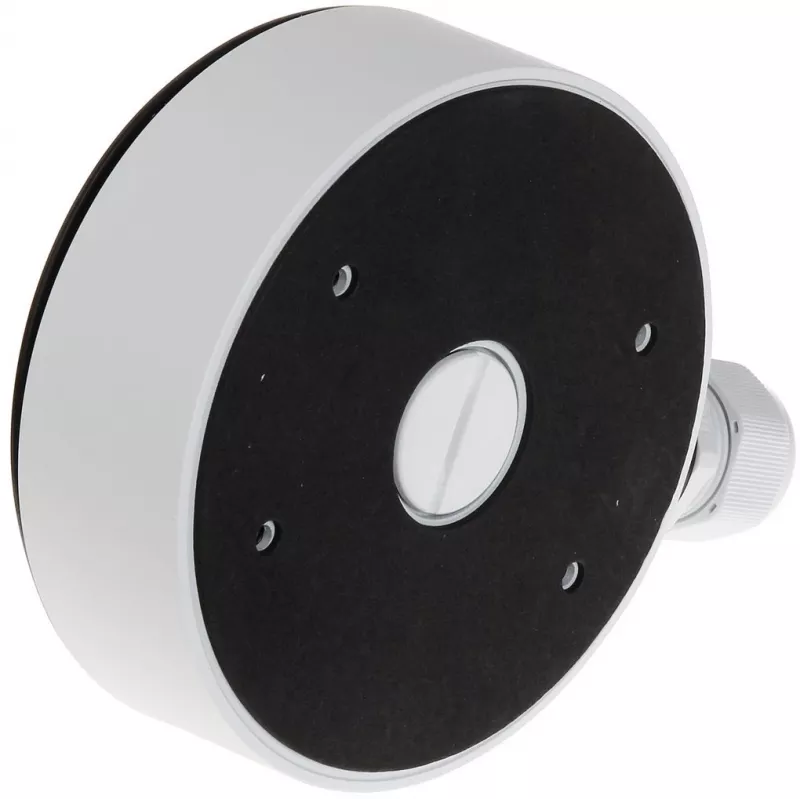

Hikvision DS-1280ZJ-DM21 Carcasa y soporte

The Hikvision DS-1280ZJ-DM21 is a universal housing and mount designed for CCTV camera installations. It provides a stable platform for dome and bullet-style cameras, with a compact footprint and lightweight construction that simplifies mounting and alignment. Finished in white, the mount integrates with a range of indoor and outdoor environments while supporting cameras up to a specified maximum weight.

Advantages

The mount combines corrosion-resistant materials and a low-profile design to reduce visual impact while maintaining support for standard surveillance cameras. Its 13.7 cm diameter and 42 mm height offer compatibility with many camera housings and junction boxes, and the 4.5 kg load capacity accommodates most compact and mid-size camera models. At 280 g, the bracket is easy to handle during installation and minimizes additional load on poles or walls.

Suitable for

• Indoor ceiling or wall mounting of dome and compact bullet cameras
• Outdoor sheltered locations where a compact, low-profile mount is required
• Retrofit installations to replace or upgrade existing small camera mounts
• Installations requiring a lightweight bracket to reduce structural load

Key specifications

• Maximum supported camera weight: 4.5 kg

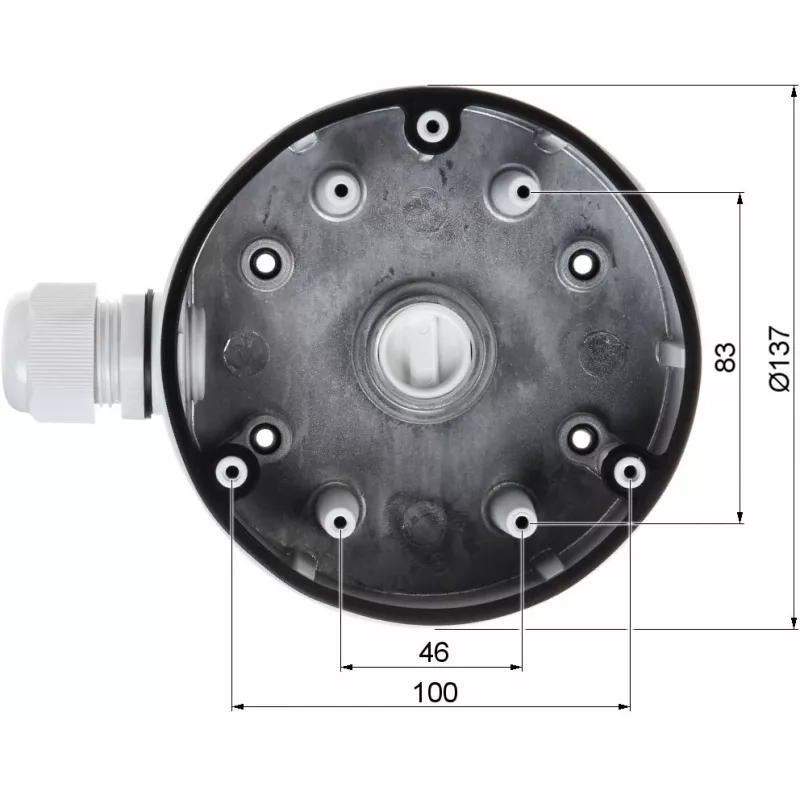

• Outer diameter: 13.7 cm
• Height: 42 mm
• Net weight: 280 g
• Finish color: white
• Mount type: universal housing and mount for CCTV cameras

How to use

Select a suitable mounting surface that can carry the combined weight of the mount and camera. Mark and drill fixing points according to the mount base, secure the bracket with appropriate anchors or screws for the substrate, then attach the camera and adjust orientation. Ensure cable routing is completed before final tightening to prevent stress on connectors. Verify stability and alignment after installation and perform a final check of the camera feed.

Recommendations

Use appropriate corrosion-resistant fasteners for outdoor installations. Do not exceed the maximum supported camera weight and avoid placing the mount where it will be directly exposed to unprotected severe weather. For exposed installations, combine the mount with a suitable protective housing or shelter and follow local mounting regulations and load-bearing guidelines.
