KONTAK-SIMON Simon 10 Toma de corriente individual blanca con toma de tierra y protección infantil, Quick-Connect, 16A 250V

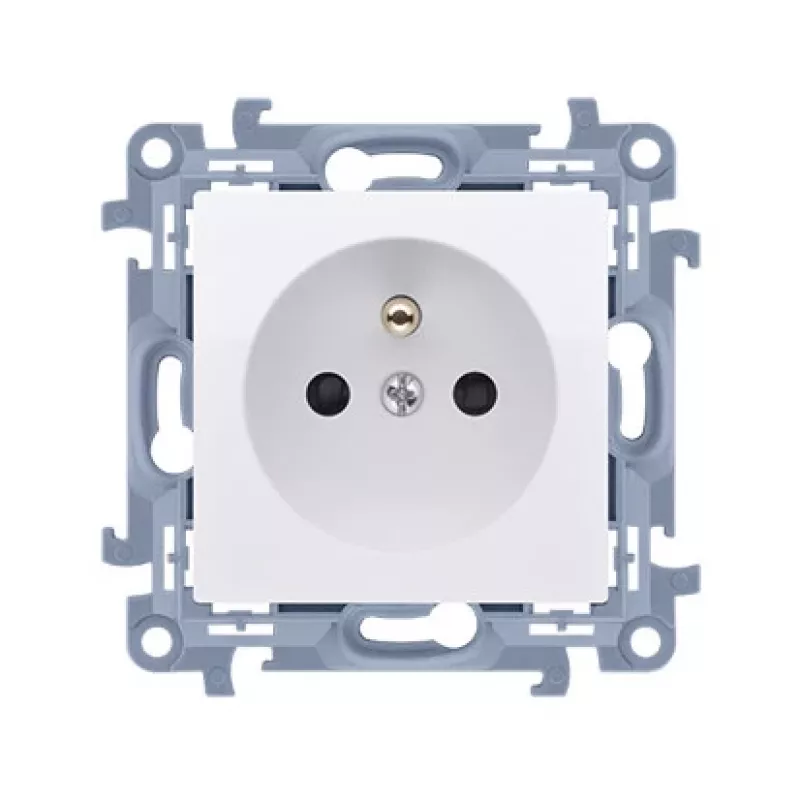

An electrician upgrading an apartment's wiring reaches for the KONTAK-SIMON Simon 10 socket outlet. The flush-mounted unit clicks into a standard Ø60mm box, its screwless terminals gripping 2.5mm² conductors in seconds. The white thermoplastic faceplate blends into any wall, while integrated shutters block curious fingers from live contacts. Rated for 16A at 250V AC, it powers everything from bedside lamps to kitchen appliances without hesitation.

Key specifications

• Single socket outlet with protective earth contact
• Integrated child-protection shutters
• Quick-connect screwless terminals for up to 2.5mm² wires
• Rated current: 16 A; rated voltage: 250 V AC, 50/60 Hz
• Flush mounting in standard Ø60mm box; 1 module width
• High-quality white thermoplastic; IP20 for indoor use
• Complies with PN-EN 60884-1

Why choose it

Installers save time with tool-free quick-connect wiring—no screws to tighten, just strip and push. The shutter mechanism meets strict safety norms, making it a reliable choice for homes, offices, and public buildings. The Simon 10 series offers a clean, modern look that coordinates with other modules in the range.

Ideal use cases

• Residential bedrooms, living rooms, and hallways
• Office workstations and meeting rooms
• Hotels, schools, and healthcare facilities
• Renovation projects requiring EN-compliant sockets

Good to know

The socket is designed for flush-mounted installation only. It fits standard European Ø60mm back boxes with 60mm fixing centres. The quick-connect terminals accept solid or stranded conductors up to 2.5mm². The white finish is RAL 9010-compatible, matching most switch ranges. For outdoor or damp locations, choose an IP44 or higher rated product.
